Engine Data Sensors - Throttle Controls and Override

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

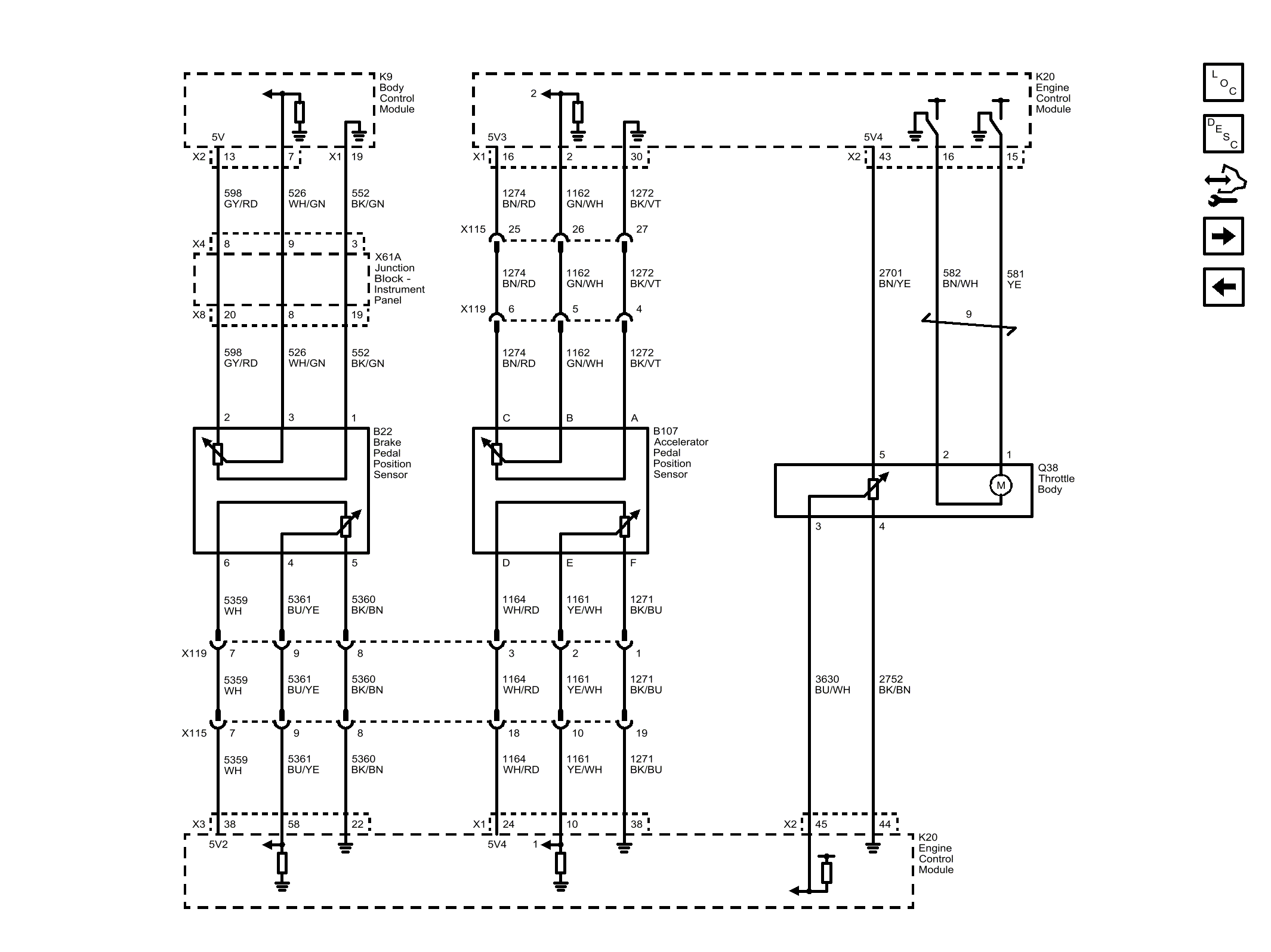

Fig 1: Engine Data Sensors - Throttle Controls and Override
GM4690139Courtesy of GENERAL MOTORS COMPANY
