5V1, 5V3, 5V4, and Low Reference Bus (1 of 2)

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

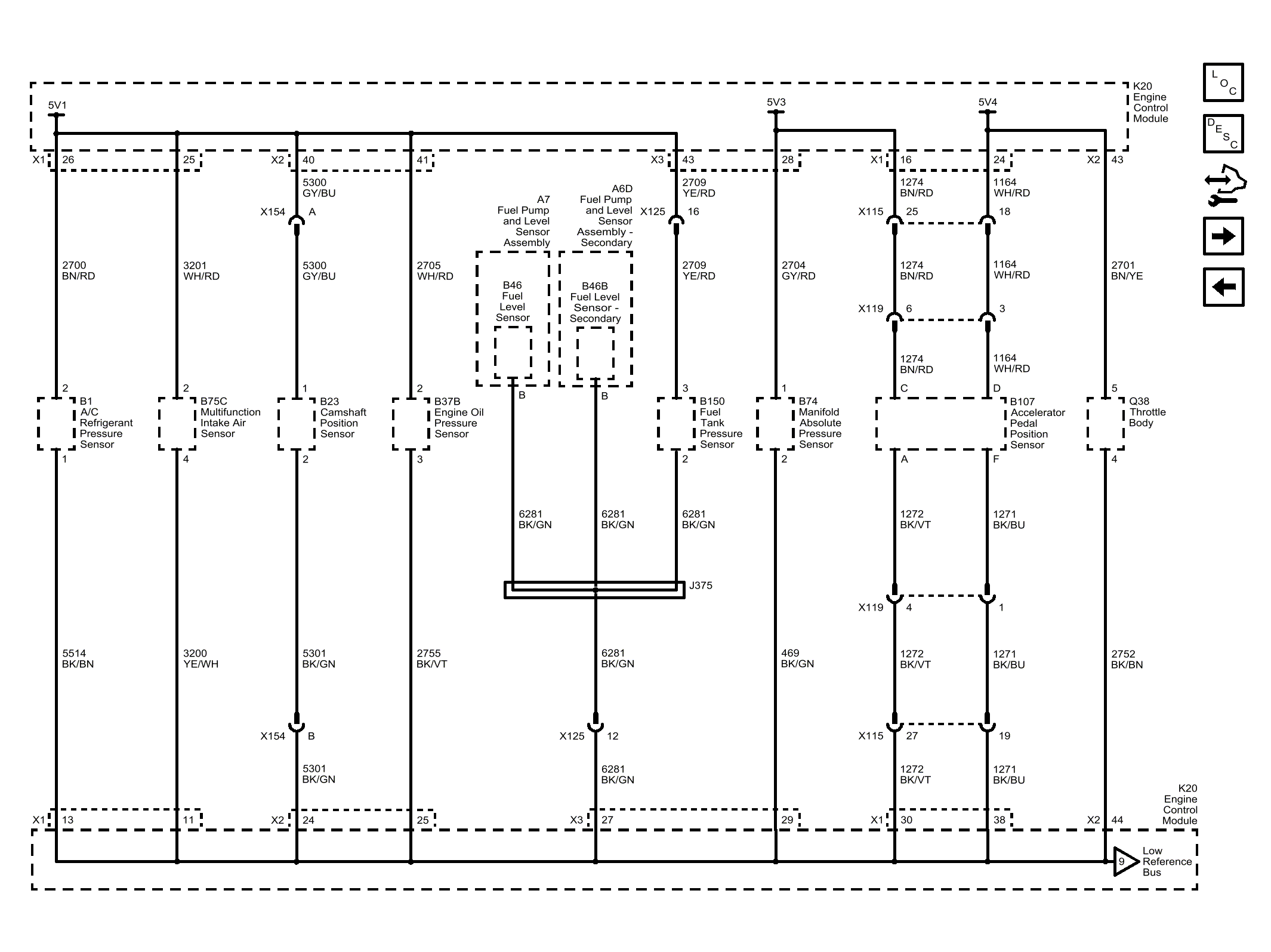

Fig 1: 5V1, 5V3, 5V4, and Low Reference Bus (1 of 2)
GM4690135Courtesy of GENERAL MOTORS COMPANY
