Transmission Heat Shield Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

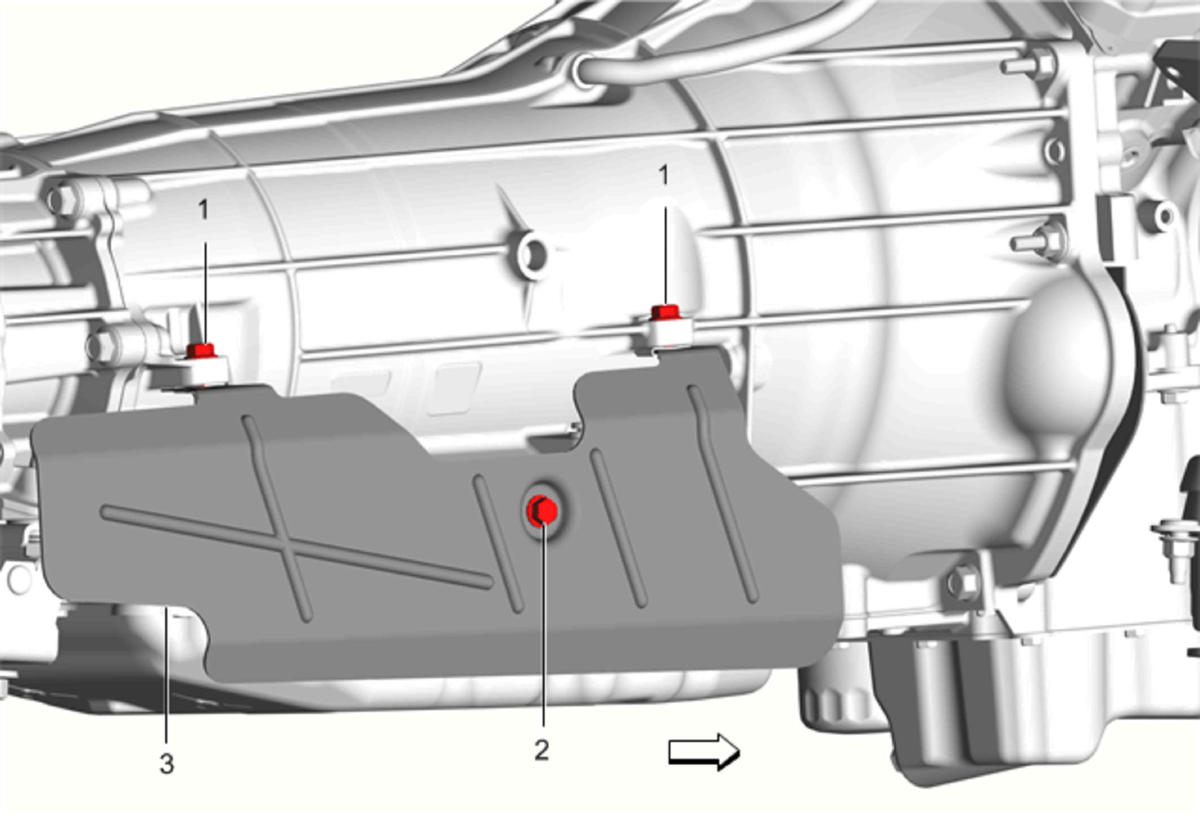

| Callout | Component Name |
|---|---|
| Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Transmission Heat Shield Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 17 N.m (13 lb ft) |
| 2 | Transmission Heat Shield Bolt (Qty: 1) Tighten 17 N.m (13 lb ft) |
| 3 | Transmission Heat Shield |
