Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to Transmission Replacement

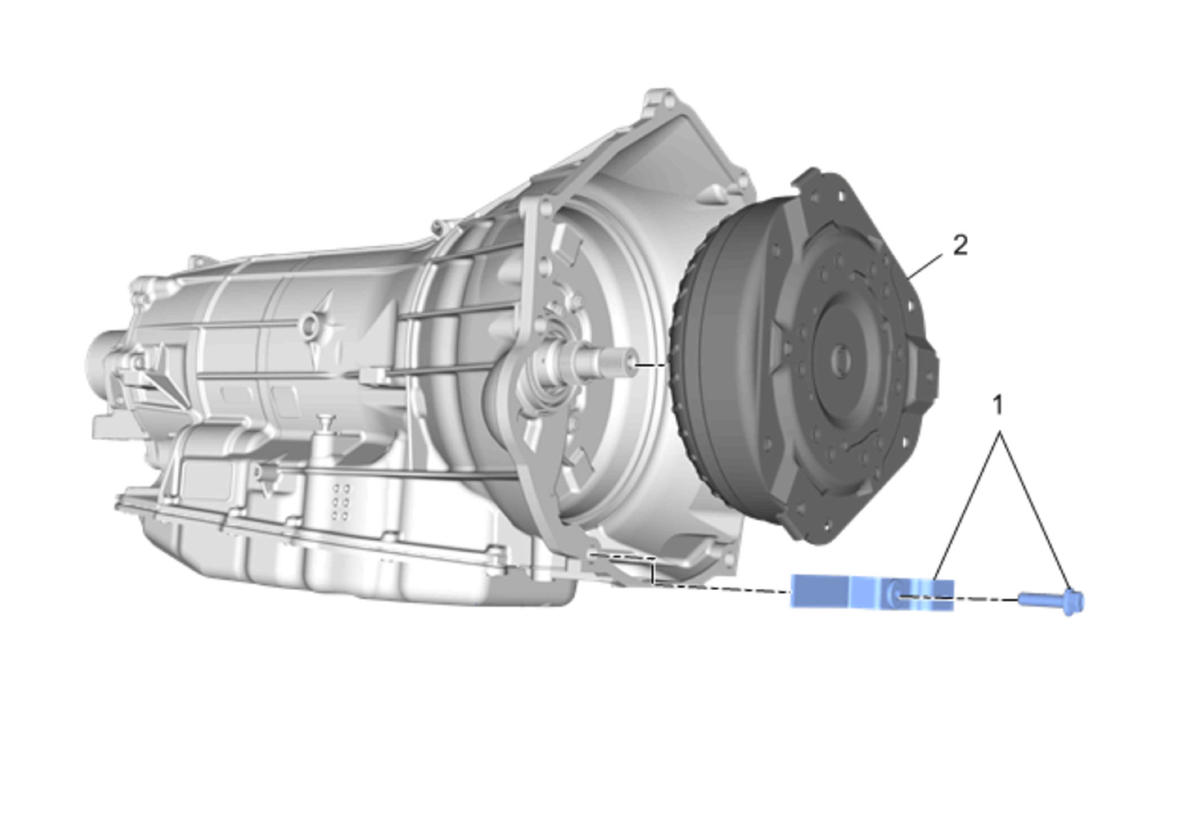

    2. Fig 1: Torque Converter And Holding Strap
    GM3794716Courtesy of GENERAL MOTORS COMPANY
  2. Remove the converter holding strap (1) DT-21366  Converter Holding Strap from the transmission.
  3. Place a drain pan under the front of the transmission.
  4. Remove the torque converter (2) from the transmission.
