Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

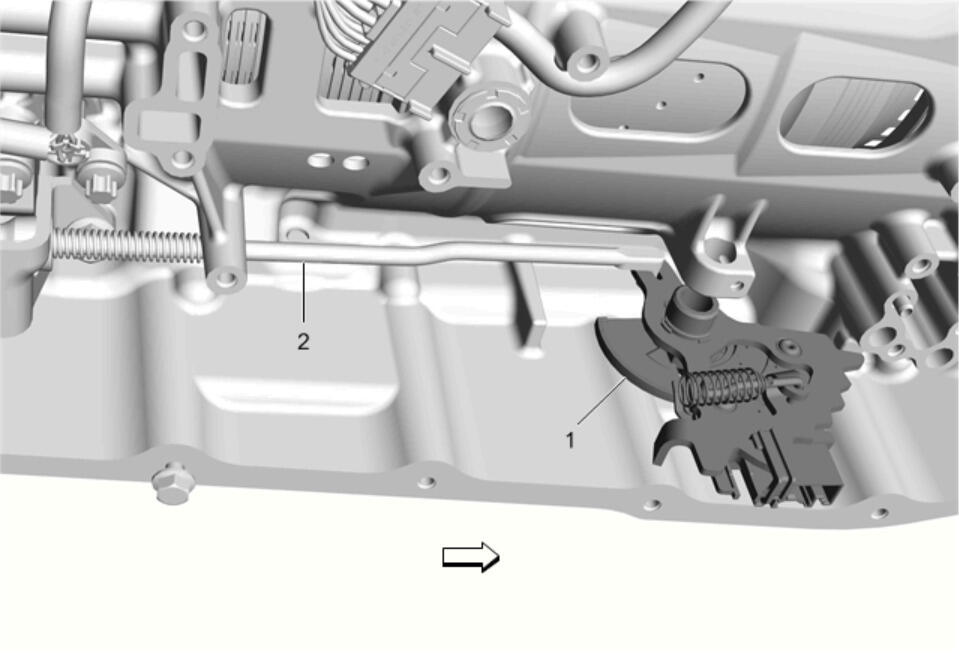

    Fig 1: Manual Shift Shaft Position Switch And Park Pawl Actuator Rod
    GM3817350Courtesy of GENERAL MOTORS COMPANY
  1. Connect the park pawl actuator rod (2) to the manual shift shaft position switch (1).
  2. Install the manual shift shaft position switch assembly (1).

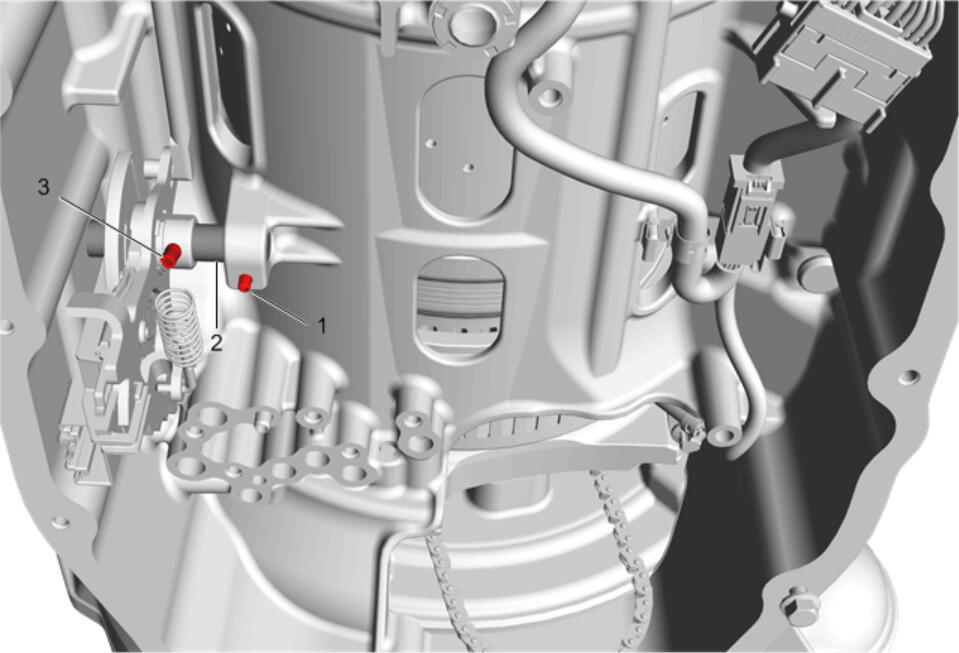

    3. Fig 2: Manual Shift Shaft And Pins
    GM3817211Courtesy of GENERAL MOTORS COMPANY
  3. Install the manual shift shaft (2) aligning the position switch assembly onto the shaft.
  4. Install the NEW manual shift shaft pin (1).
  5. Install the NEW manual shift shaft detent lever hub pin (3).
  6. Install the control valve body. Refer to Control Valve Body Replacement .
  7. Install the automatic transmission range selector lever. Refer to Automatic Transmission Range Selector Lever Replacement .
  8. If equipped with four wheel drive, install the front axle propeller shaft. Refer to Front Axle Propeller Shaft Replacement (NQH)Front Axle Propeller Shaft Replacement (Heavy Duty) .
  9. Install the control valve body. Refer to Control Valve Body Replacement .
  10. Reprogram the transmission. Refer to Solenoid Valve Characterization Reprogramming
