Clutch Assemblies and Associated Parts
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

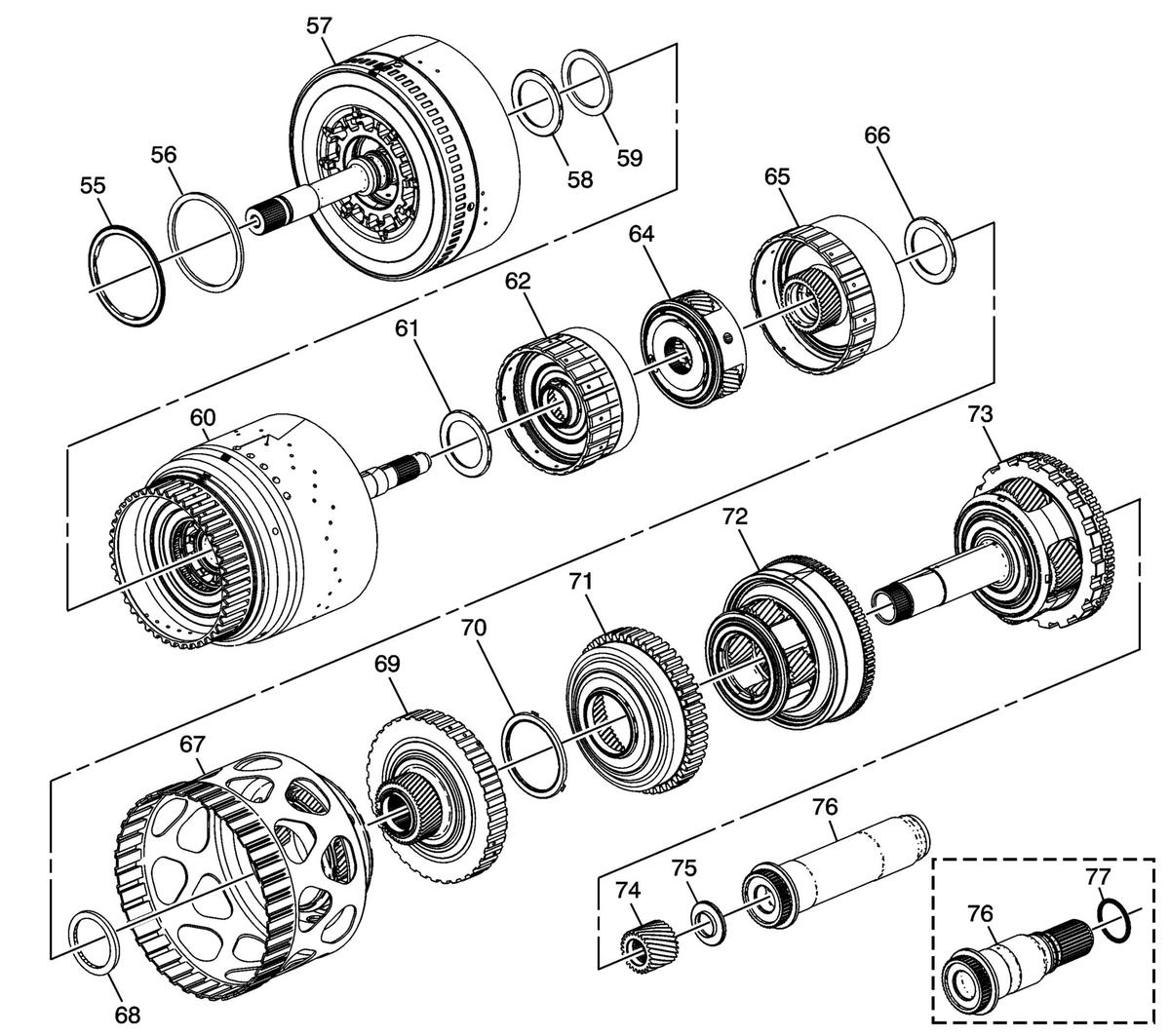

| Callout | Component Name |
|---|---|
| 55 | 1-3-5-6-7 Clutch Thrust Bearing |
| 56 | 1-3-5-6-7 Clutch Thrust Bearing Washer |
| 57 | 1-3-5-6-7 Clutch |
| 58 | 2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch Thrust Bearing |
| 59 | 2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch Thrust Bearing Washer |
| 60 | 2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch |
| 61 | 4-5-6-7-8 Reverse Clutch and Direct Overdrive Internal Gear Hub Thrust Bearing |
| 62 | Direct Overdrive Internal Gear |
| 64 | Direct Overdrive Carrier |
| 65 | Input Internal Gear |
| 66 | Input Sun Gear Thrust Bearing |
| 67 | Input Carrier |
| 68 | Input Sun Gear Spacer |
| 69 | Input Sun Gear |
| 70 | 1-2-3-4-5-Reverse Clutch Hub Thrust Bearing |
| 71 | Reaction Internal Gear and 1-2-3-4-5-Reverse Hub |
| 72 | Reaction Carrier |
| 73 | Output Carrier |
| 74 | Output Sun Gear |
| 75 | Output Sun Gear Thrust Bearing |
| 76 | Output Shaft - Model Dependent |
| 77 | Output Shaft Seal |
