Case and Associated Parts (2 of 2)
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

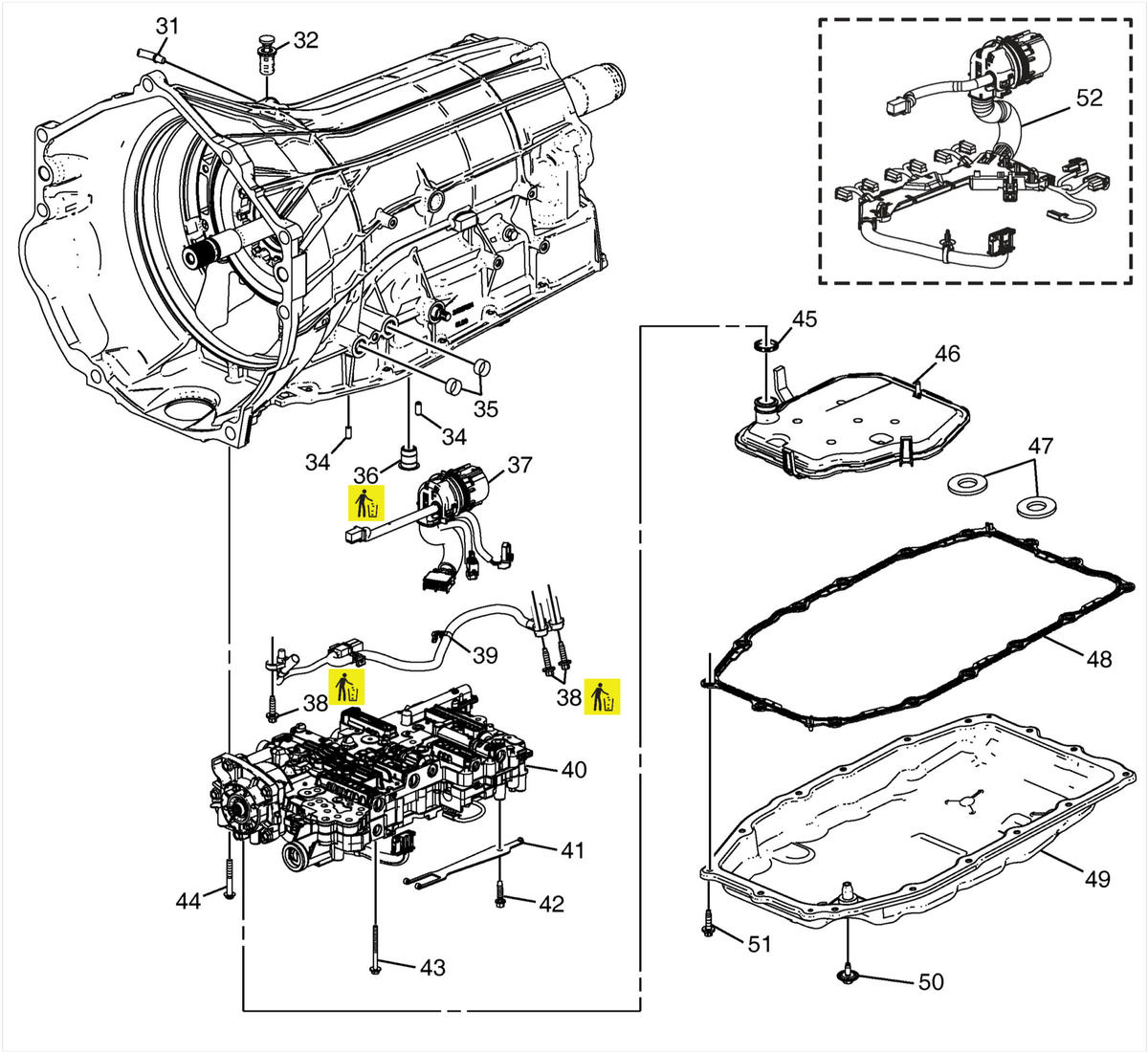

| Callout | Component Name |
|---|---|
| 31 | Automatic Transmission Vent Pipe |
| 32 | Transmission Fluid Filler Tube Plug |
| 34 | Control Valve Body Locating Pin |
| 35 | Transmission Fluid Cooler Pipe Fitting Seal |
| 36 | Clutch Housing Fluid Passage Seal |
| 37 | Automatic Transmission Wiring Harness |
| 38 | Automatic Transmission Case Front Cover Bolt |
| 39 | Automatic Transmission Output Speed Sensor Wiring Harness |
| 40 | Control Valve |
| 41 | Manual Shift Detent Lever Spring |
| 42 | Manual Shift Detent Lever Spring Bolt |
| 43 | Control Valve Solenoid Body Bolt |
| 44 | Control Valve Solenoid Body Bolt |
| 45 | Automatic Transmission Fluid Filter Seal |
| 46 | Automatic Transmission Fluid Filter |
| 47 | Automatic Transmission Fluid Pan Magnet |
| 48 | Automatic Transmission Fluid Pan Gasket |
| 49 | Automatic Transmission Fluid Pan |
| 50 | Automatic Transmission Fluid Pan Drain Plug |
| 51 | Automatic Transmission Fluid Pan Bolt |
