Transmission Case Front Cover And Drive Link Removal
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

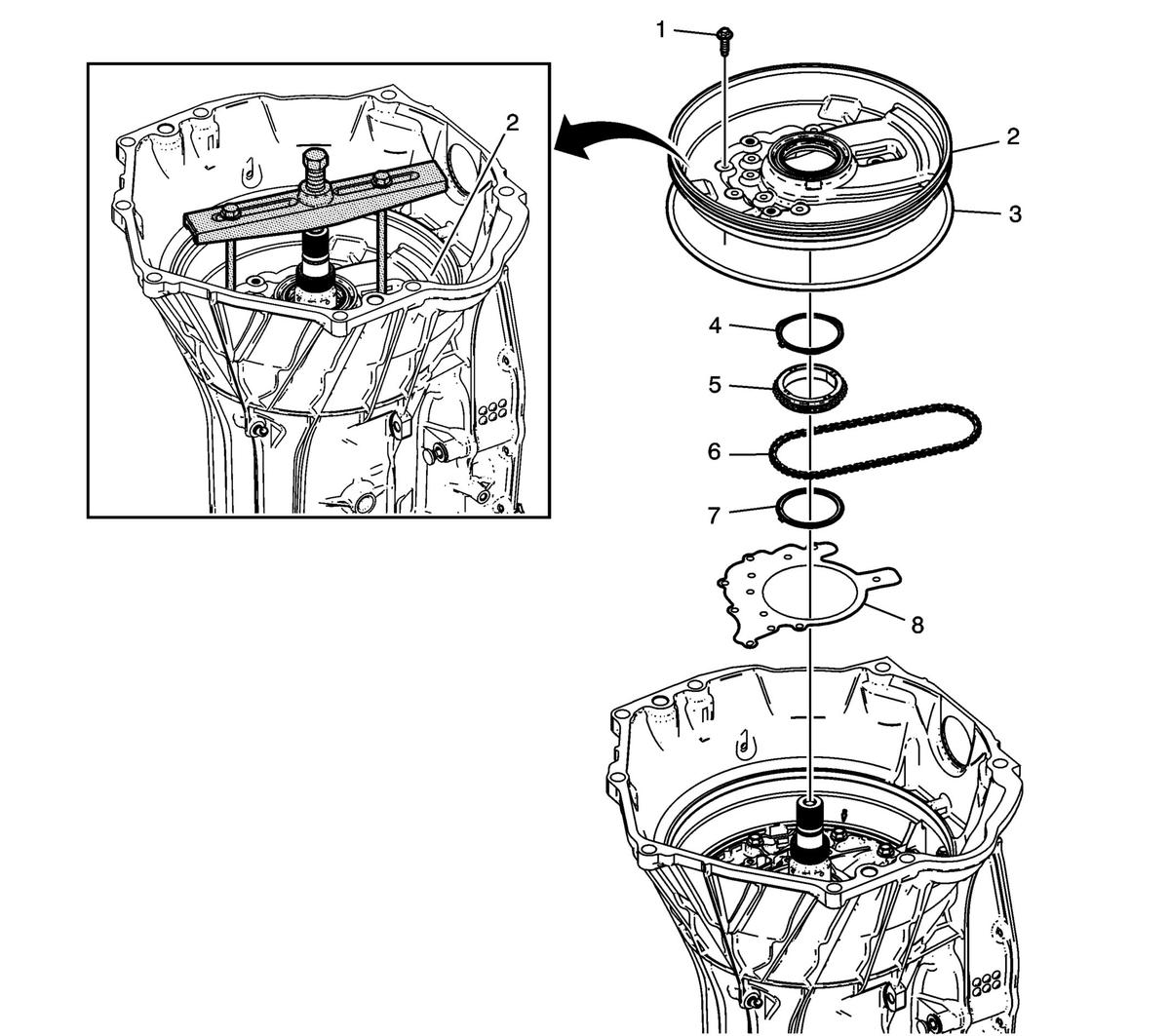

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Case Front Cover Bolt M6 x 30 (Qty: 11)
NOTE:
DISCARD the bolts. |
| 2 | Automatic Transmission Case Front Cover Procedure Use the GE-8433 puller bar and 2 bolts in the threaded holes of the front cover to remove it from the case. Special Tool GE-8433 Puller Bar Equivalent regional tools: Special Tools |
| 3 | Automatic Transmission Case Front Cover Seal
NOTE:
DISCARD the seal. |
| 4 | Drive Sprocket Thrust Washer - Front |
| 5 | Drive Sprocket |
| 6 | Drive Link |
| 7 | Drive Sprocket Thrust Washer - Rear |
| 8 | Automatic Transmission Front Support Cover Gasket
NOTE:
Remove and DISCARD the gasket. |
