Torque Converter Removal And Holding Fixture Installation

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

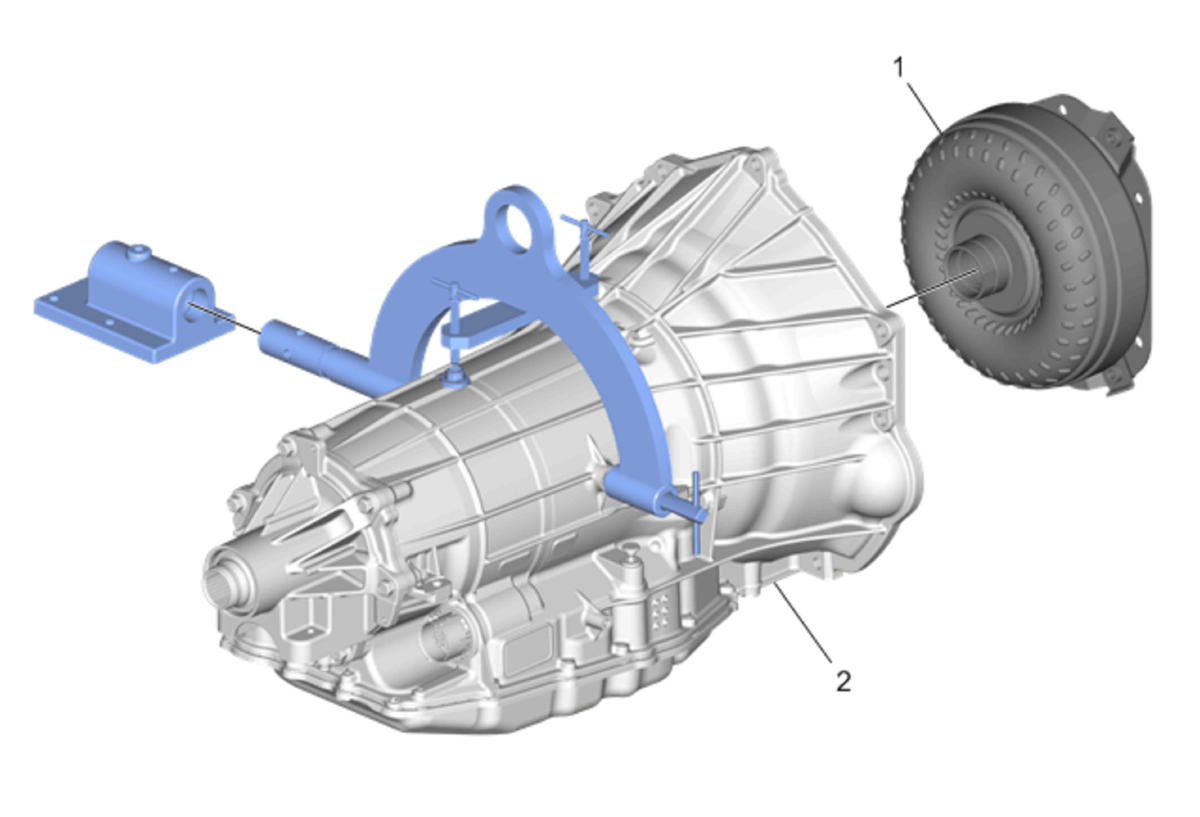

Fig 1: Torque Converter And Holding Fixture

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Torque Converter
2	Automatic Transmission Case Procedure Rotate the transmission so that the converter housing is up and secure with locking pin. Allow any remaining transmission fluid to drain from the case extension. Special Tools DT-03289-20 Holding Fixture Base Assembly DT-48989 Holding Fixture Equivalent regional tools: Special Tools .

Callout

Component Name

Torque Converter

Automatic Transmission Case

Procedure

Rotate the transmission so that the converter housing is up and secure with locking pin.
Allow any remaining transmission fluid to drain from the case extension.

Special Tools

DT-03289-20 Holding Fixture Base Assembly
DT-48989 Holding Fixture

Equivalent regional tools: Special Tools .
