Torque Converter Installation And Holding Fixture Removal

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

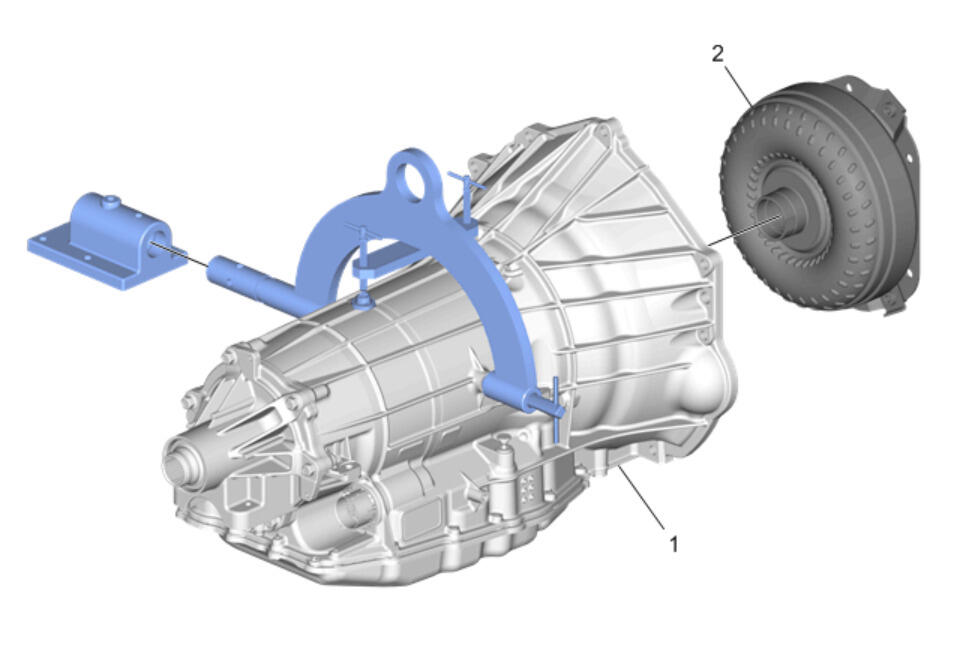

Fig 1: Torque Converter And Holding Fixture

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Automatic Transmission Case Procedure Rotate the transmission so that the fluid pan is down. Special Tools DT-03289-20 Holding Fixture Base Assembly DT-48989 Holding Fixture Equivalent regional tools: Special Tools
2	Torque Converter

Callout

Component Name

Automatic Transmission Case
Procedure
Rotate the transmission so that the fluid pan is down.

Special Tools

DT-03289-20 Holding Fixture Base Assembly
DT-48989 Holding Fixture

Equivalent regional tools: Special Tools

Torque Converter
