Stator Shaft Support Removal

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

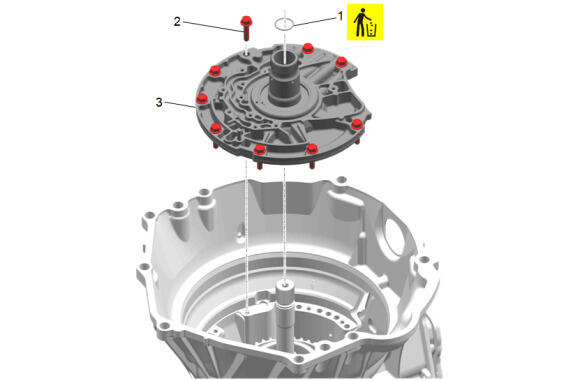

Fig 1: Stator Shaft Support

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Turbine Shaft Seal NOTE: Remove and DISCARD the O-ring seal.
2	Stator Shaft Support Bolt M8 x 33 mm (Qty: 9)
3	Stator Shaft Support
