Reaction Internal Gear And 1-2-3-4-5 Reverse Hub And 1-2-3-4-5 Reverse Clutch Plate Assembly Installation

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

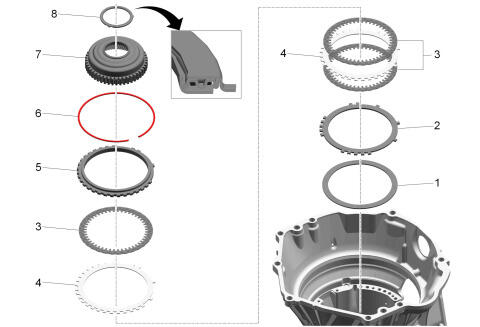

Fig 1: Reaction Internal Gear And 1-2-3-4-5 Reverse Hub And 1-2-3-4-5 Reverse Clutch Plate Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	1-2-3-4-5-Reverse Clutch Plate - Waved
2	1-2-3-4-5-Reverse Clutch Apply Plate
3	1-2-3-4-5-Reverse Clutch Plate - Friction (Qty: 3)
4	1-2-3-4-5-Reverse Clutch Plate (Qty: 2)
5	1-2-3-4-5-Reverse Clutch Backing Plate
6	1-2-3-4-5-Reverse Clutch Backing Plate Retaining Ring Procedure Select the correct retaining ring. Refer to 1-2-3-4-5 Reverse Clutch Backing Plate Retaining Ring Measurement . Position the opening of the retaining ring in the 9 o'clock position as indicated by the arrow.
7	Reaction Internal Gear and 1-2-3-4-5-Reverse Hub
8	1-2-3-4-5-Reverse Clutch Hub Thrust Bearing
