Reaction Carrier Assembly, Output Carrier, And Output Shaft Installation
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

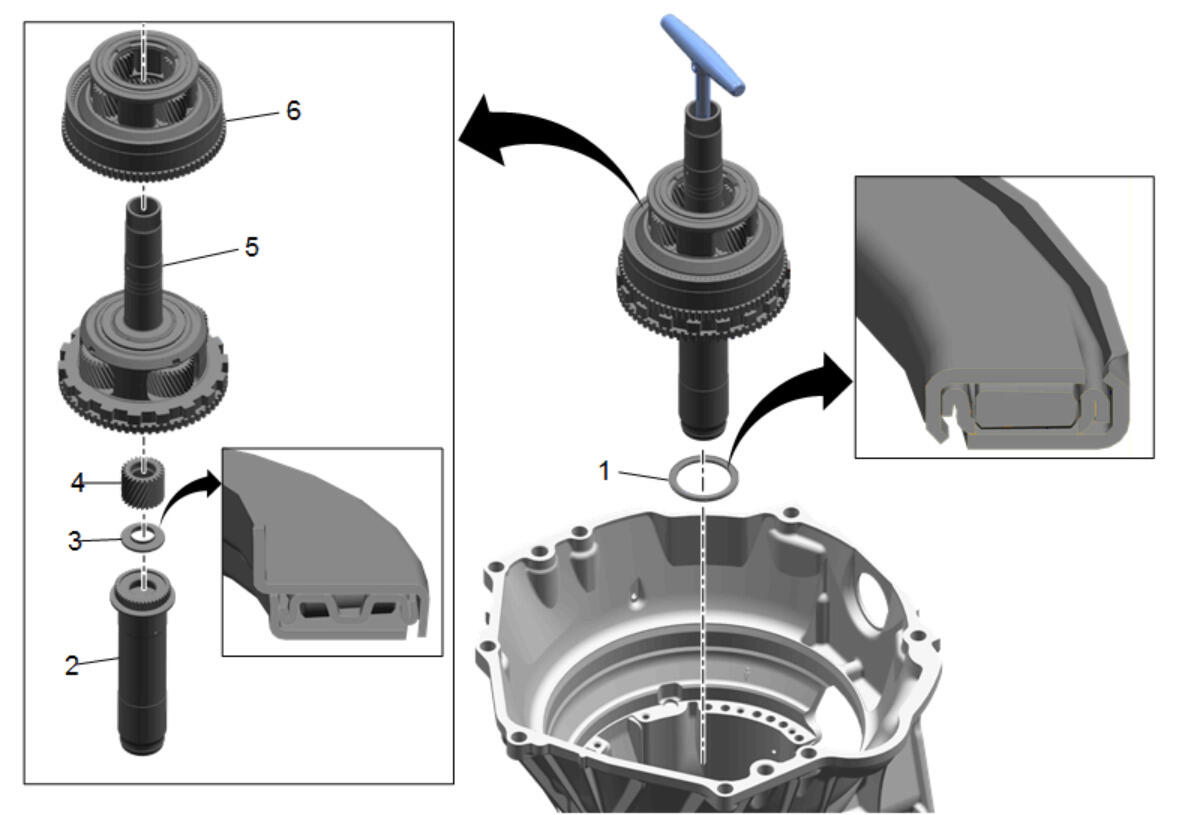

| Callout | Component Name |
|---|---|
| 1 | Output Carrier Thrust Bearing |
| 2 | Output Shaft Special Tool DT-50921 Output Carrier/Shaft Lifting Tool Equivalent regional tools: Special Tools |
| 3 | Output Sun Gear Thrust Bearing |
| 4 | Output Sun Gear |
| 5 | Output Carrier |
| 6 | Reaction Carrier
NOTE:
Ensure the park pawl is not engaged. |
