Input Carrier Assembly Installation

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

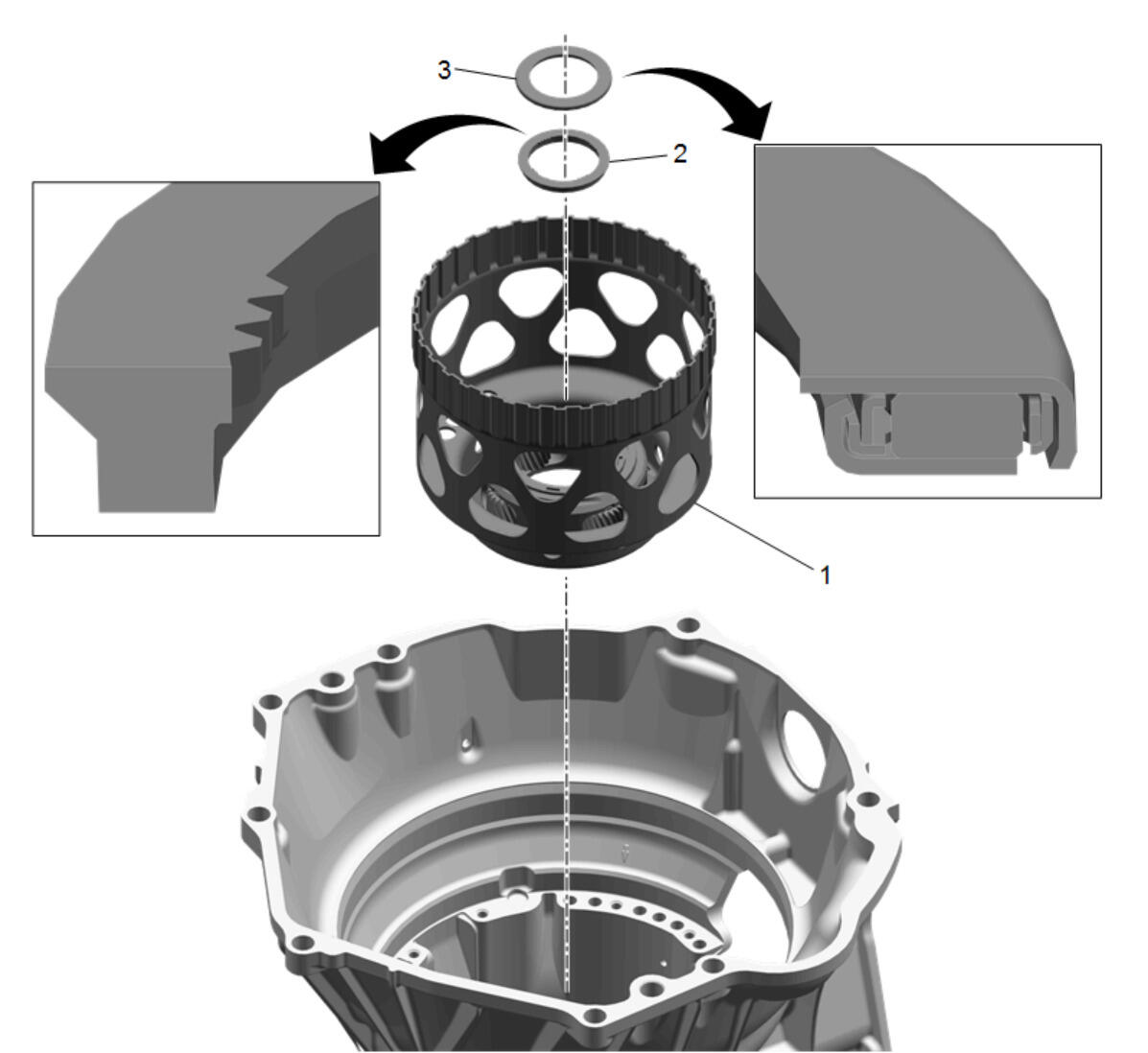

Fig 1: Input Carrier Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Input Carrier
2	Input Sun Gear Spacer
3	Input Sun Gear Thrust Bearing
