Control Valve Solenoid Body Assembly Removal
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Control Valve Solenoid Body Assembly Removal

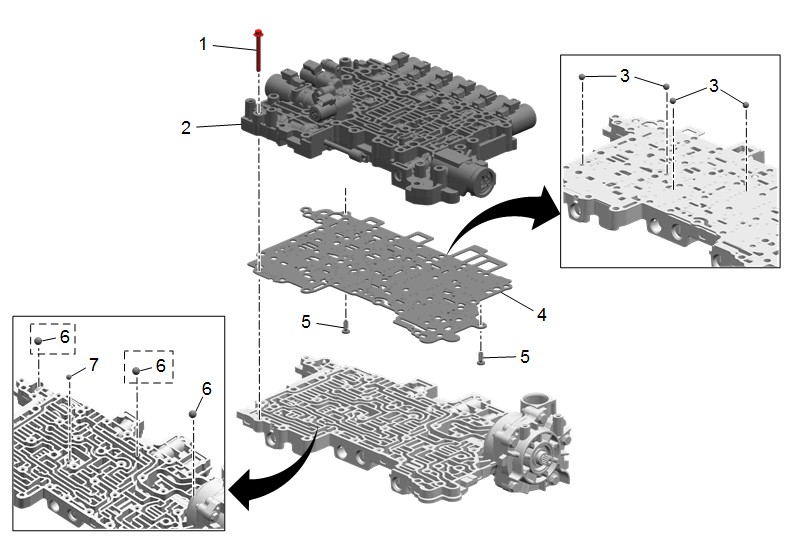

| Callout | Component Name |
|---|---|
| 1 | Control Valve Channel Plate Bolt M5 x 45 (Qty: 8) |
| 2 | Control Valve Solenoid Body |
| 3 | Cooler Flow Blowoff Ball Valve (Qty: 4)
NOTE:
Observe the position of the ball check valves. |
| 4 | Control Valve Body Spacer Plate
CAUTION:
Do not use the old spacer plate. Install a NEW spacer plate. Reusing an old spacer plate may cause internal transmission leaks and transmission damage. Procedure DISCARD the spacer plate. |
| 5 | Control Valve Body Spacer Plate Retainer (Qty: 2) Procedure DISCARD the retainers, they are not reusable. |
| 6 | Automatic Transmission Auxiliary Fluid Pump Ball Check Valve (Qty: 1 Without Surge Accumulator) (Qty: 3 With Surge Accumulator)
NOTE:
Observe the position of the ball check valve. |
| 7 | Cooler Flow Blowoff Ball Valve
NOTE:
Observe the position of the ball check valve. |
