Control Valve Channel Plate Installation
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Control Valve Channel Plate Installation

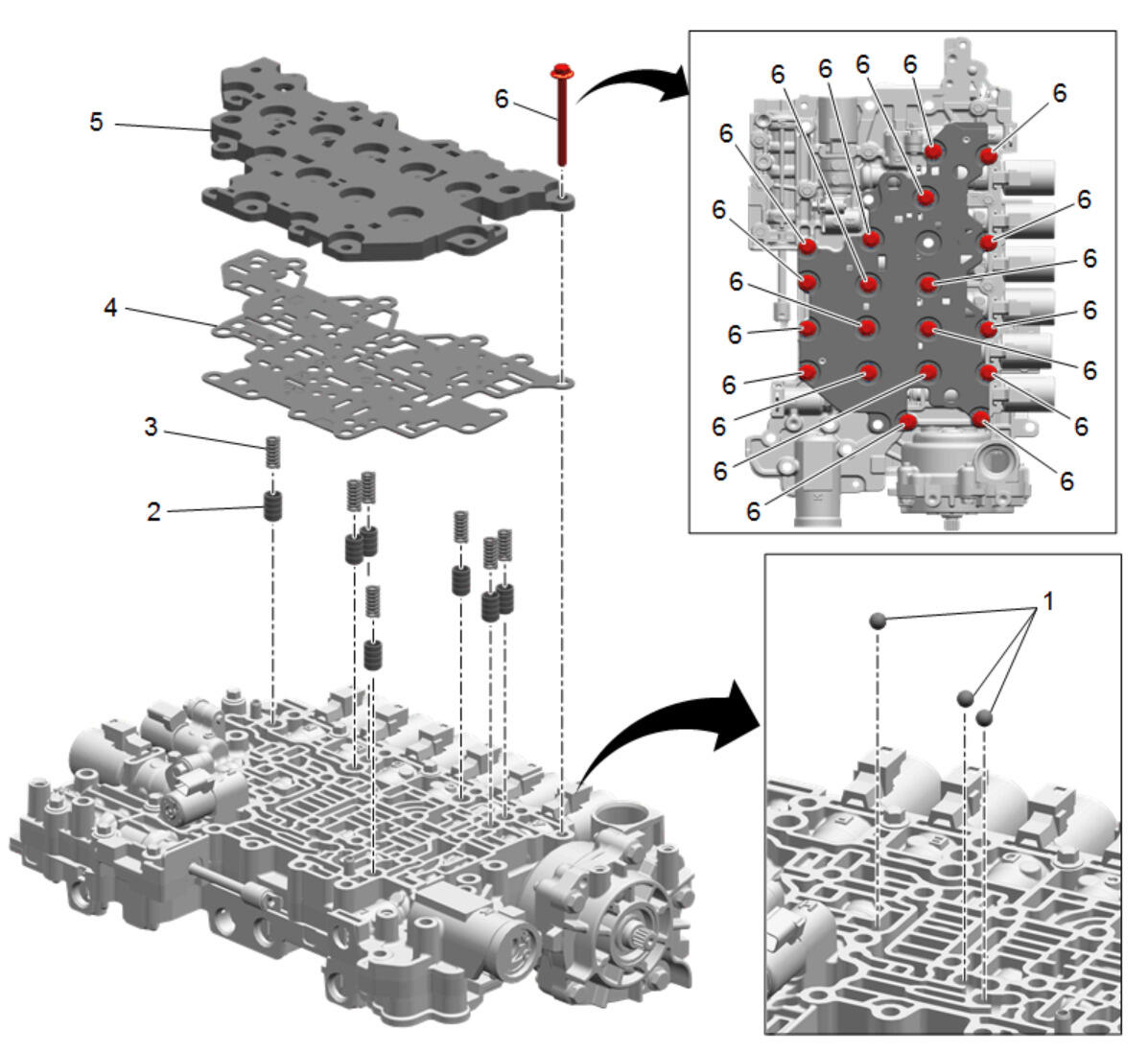

| Callout | Component Name |
|---|---|
| 1 | Cooler Flow Blowoff Ball Valve (Qty: 3)
CAUTION:
Refer to Ball Check Valve Grease Caution . |
| 2 | Signal Accumulator Piston (Qty: 7) |
| 3 | Signal Accumulator Piston Spring (Qty: 7) |
| 4 | Control Valve Channel Plate Spacer Plate
CAUTION:
Do not use the old spacer plate. Install a NEW spacer plate. Reusing an old spacer plate may cause internal transmission leaks and transmission damage. |
| 5 | Control Valve Channel Plate |
| 6 | Control Valve Channel Plate Bolt M5 x 55 (Qty: 19) Procedure Hand tighten the bolts. |
