Automatic Transmission Control Wiring Harness Installation
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY Automatic Transmission Control Wiring Harness Installation

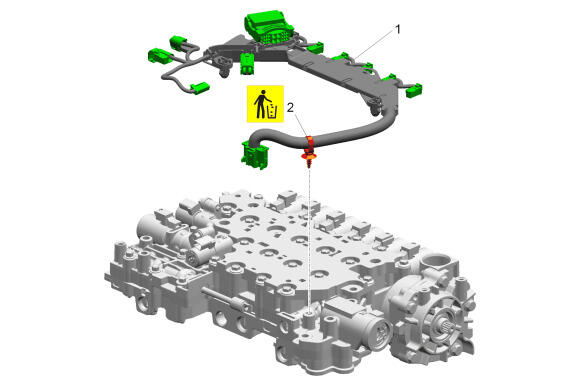

| Callout |
Component Name |
| 1 |
Automatic Transmission Control Wiring Harness
Procedure
Connect the wiring harness connectors.
NOTE:
Install NEW wiring harness clips, they are not reusable.
|
