Case Extension Assembly Installation
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

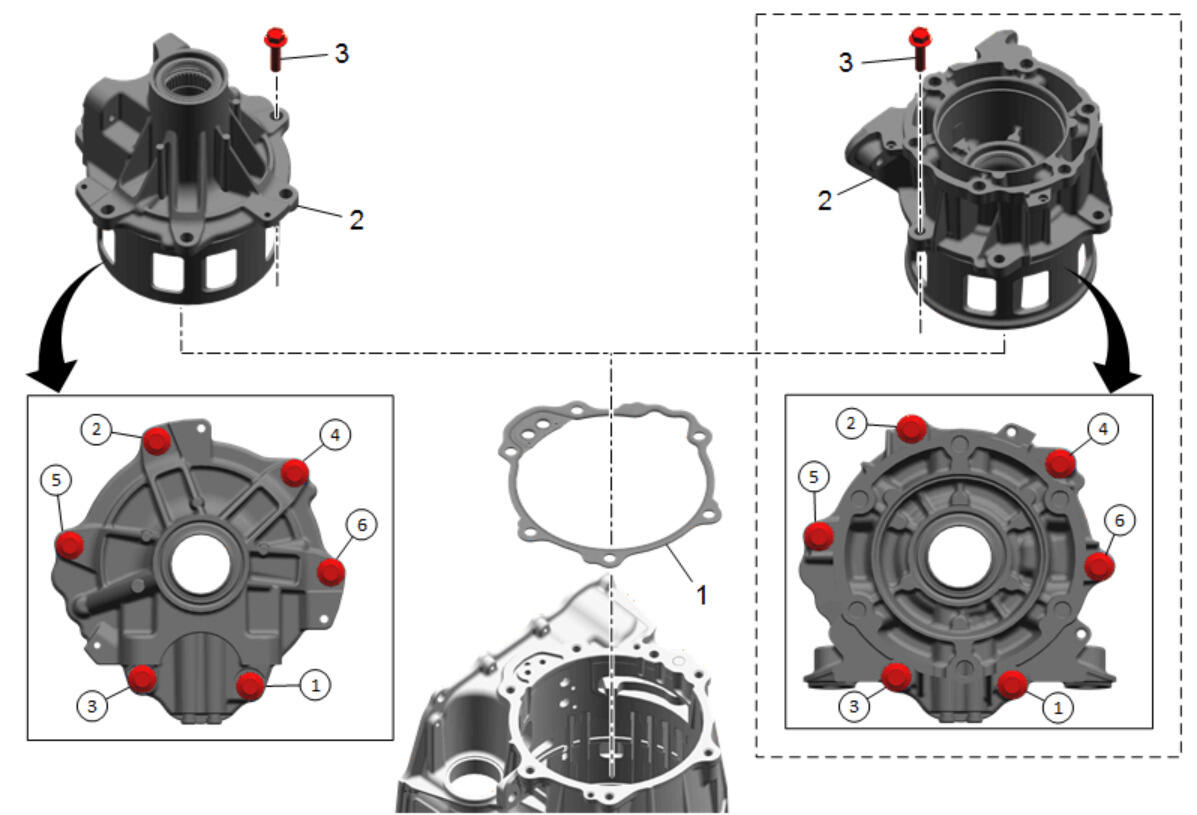

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Case Extension Seal Procedure
NOTE:
The seal is reusable. Inspect the seal and replace if damaged. |
| 2 | Automatic Transmission Case Extension - Model Dependent
CAUTION:
Before removing or installing the automatic transmission case extension, place the transmission in a holding fixture with the transmission in a vertical position and the case extension facing up. Failure to do so may result in transmission internal damage.
NOTE:
Ensure the park pawl is not engaged. |
| 3 | Automatic Transmission Case Extension Bolt M10 x 40 (Qty: 6)
CAUTION:
Refer to Fastener Caution . Tighten in sequence
|
