2-3-4-6-8 And 4-5-6-7-8 Reverse Clutch Assembly Removal
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

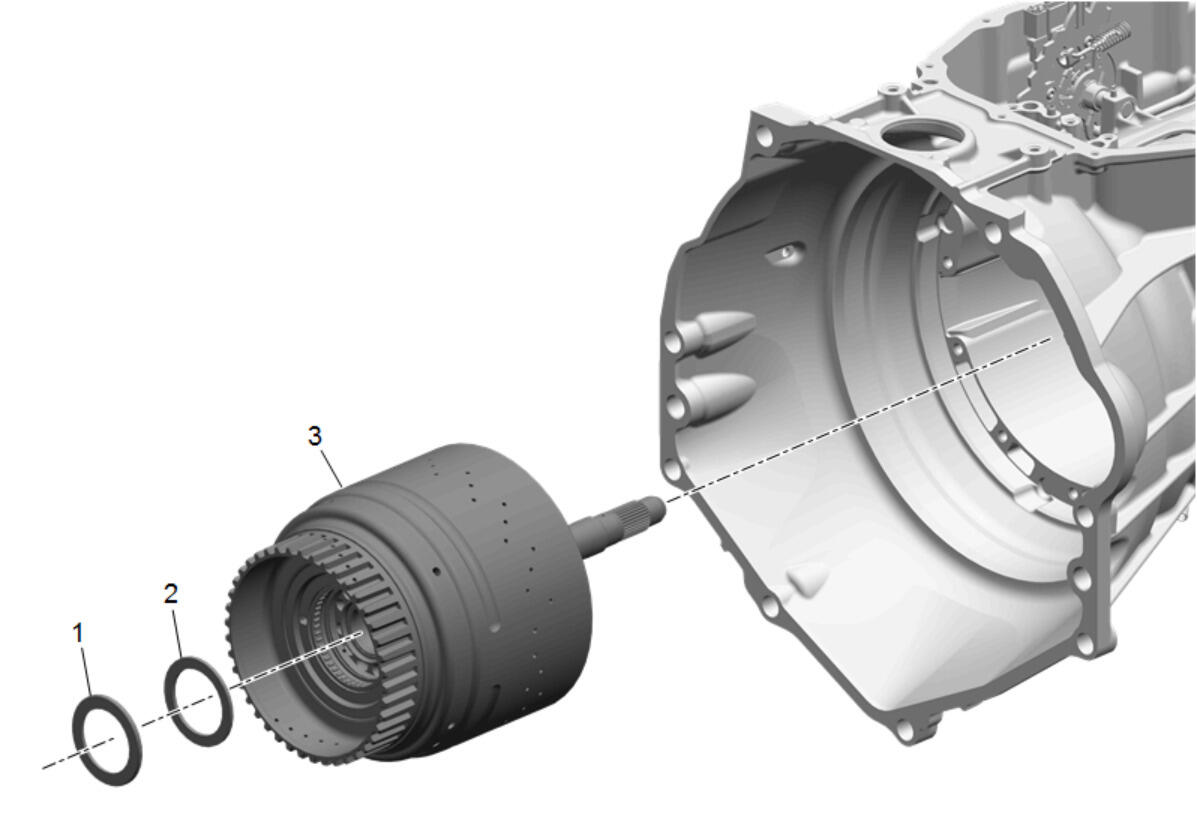

| Callout |
Component Name |
| 1 |
2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch Thrust Bearing |
| 2 |
2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch Thrust Bearing Washer |
| 3 |
2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch
NOTE:
Rotate the transmission horizontal to aid in removal of the 2-3-4-6-8 and 4-5-6-7-8 - Reverse clutch assembly.
|
