2-3-4-6-8 And 4-5-6-7-8 Reverse Clutch Assembly Installation
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

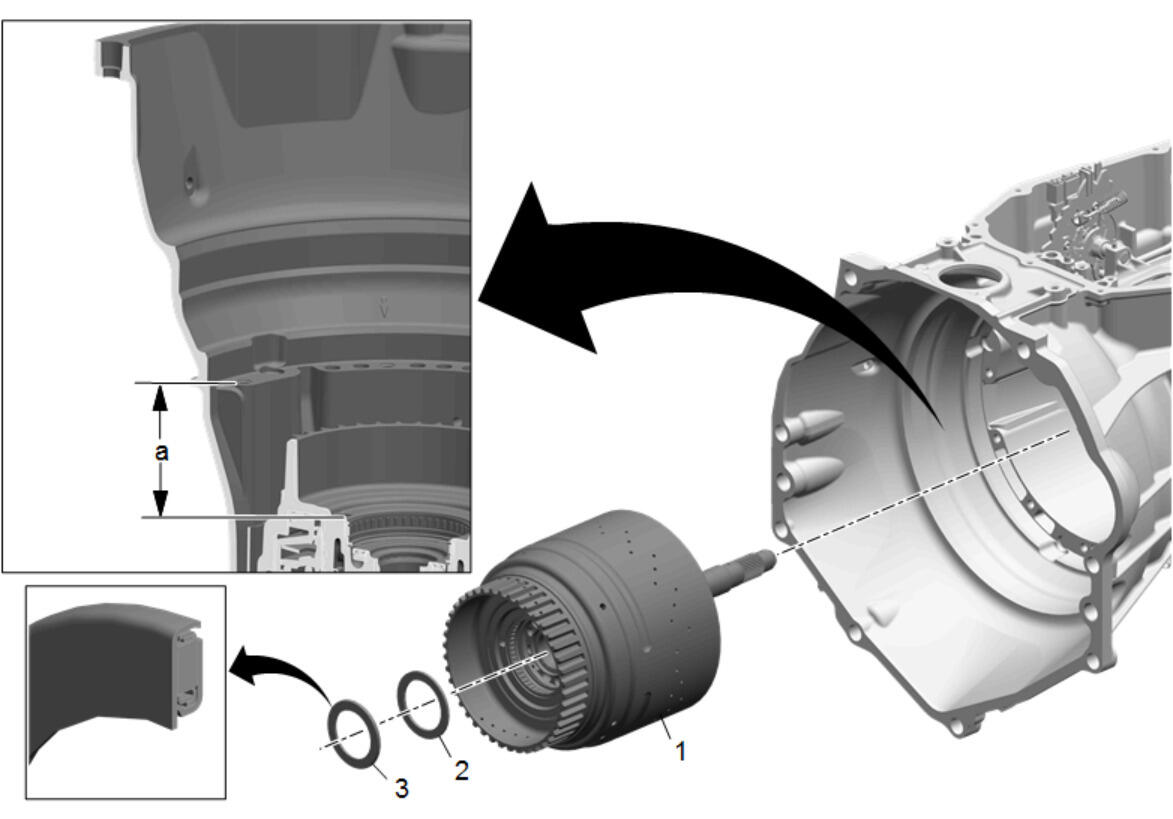

| Callout | Component Name |
|---|---|
| 1 | 2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch Procedure
NOTE:
Rotate the transmission horizontal to aid in installation of the 2-3-4-6-8 and 4-5-6-7-8 - Reverse clutch assembly. Verify proper installation of the 2-3-4-6-8 and 4-5-6-7-8-Reverse clutch assembly by measuring as indicated (a). An approximate measurement of 62.78 mm (2.472 in) indicates correct installation. |
| 2 | 2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch Thrust Bearing Washer |
| 3 | 2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch Thrust Bearing |
