1-3-5-6-7 Clutch Assembly Installation
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

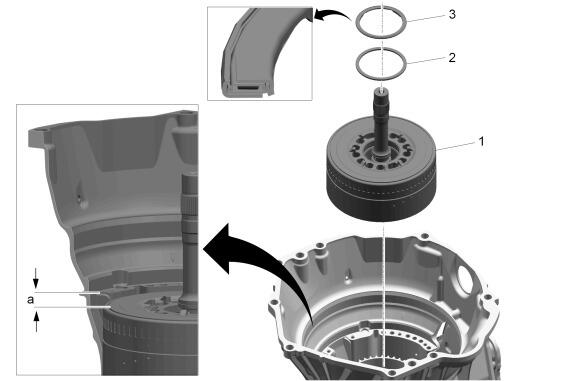

| Callout | Component Name |
|---|---|
| 1 | 1-3-5-6-7 Clutch Procedure Verify proper installation of the 1 - 3 - 5 - 6 - 7 clutch assembly by measuring as indicated (a). An approximate measurement of 6.49 mm (0.256 in) indicates correct installation. |
| 2 | 1-3-5-6-7 Clutch Thrust Bearing Washer |
| 3 | 1-3-5-6-7 Clutch Thrust Bearing |
