1-2-7-8 Reverse Clutch Piston Installation
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

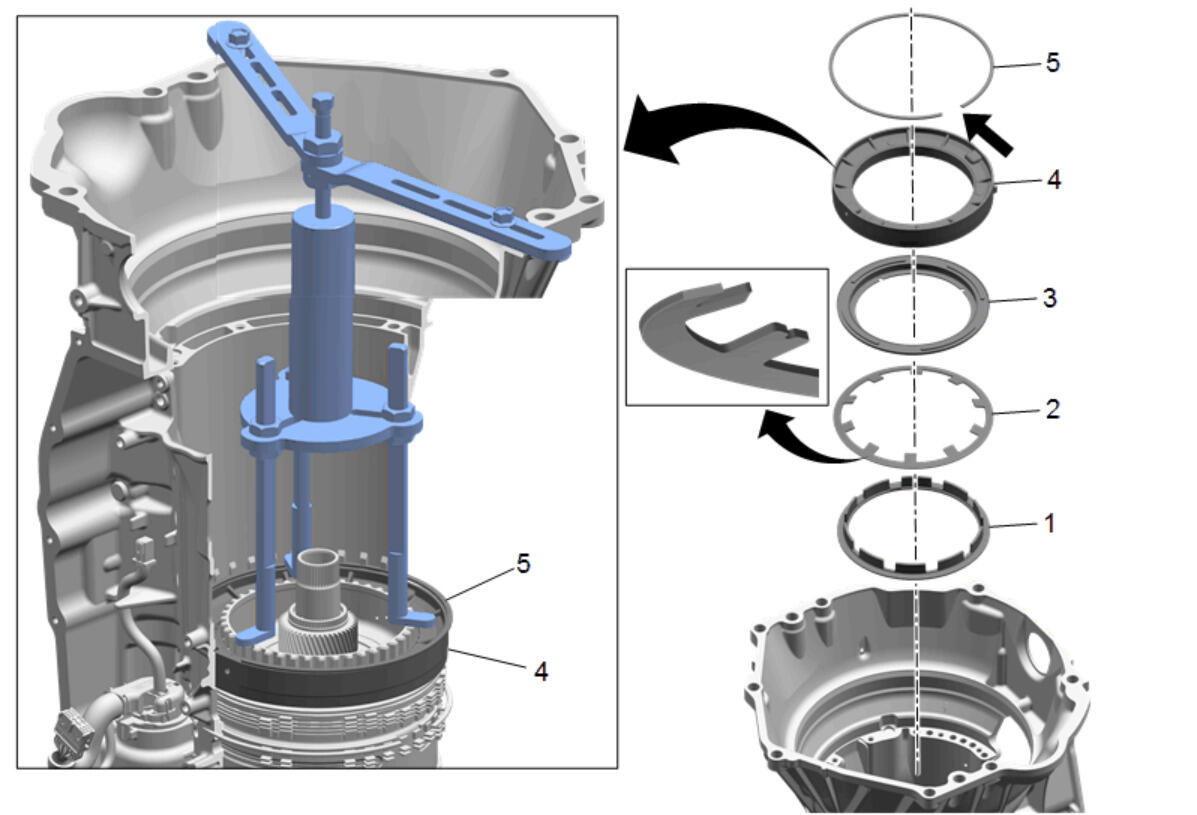

| Callout | Component Name |
|---|---|
| 1 | 1-2-7-8-Reverse Clutch Apply Ring |
| 2 | 1-2-7-8-Reverse Clutch Return Spring Procedure Position the spring in the orientation shown. |
| 3 | 1-2-7-8-Reverse Clutch Piston |
| 4 | 1-2-7-8-Reverse Clutch Piston Housing |
| 5 | 1-2-7-8-Reverse Clutch Piston Housing Retaining Ring Procedure Position the opening of the retaining ring in the 9 o'clock position as indicated by the arrow. Special Tools
Equivalent regional tools: Special Tools |
