Input and Output Speed Sensor Assembly Installation

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

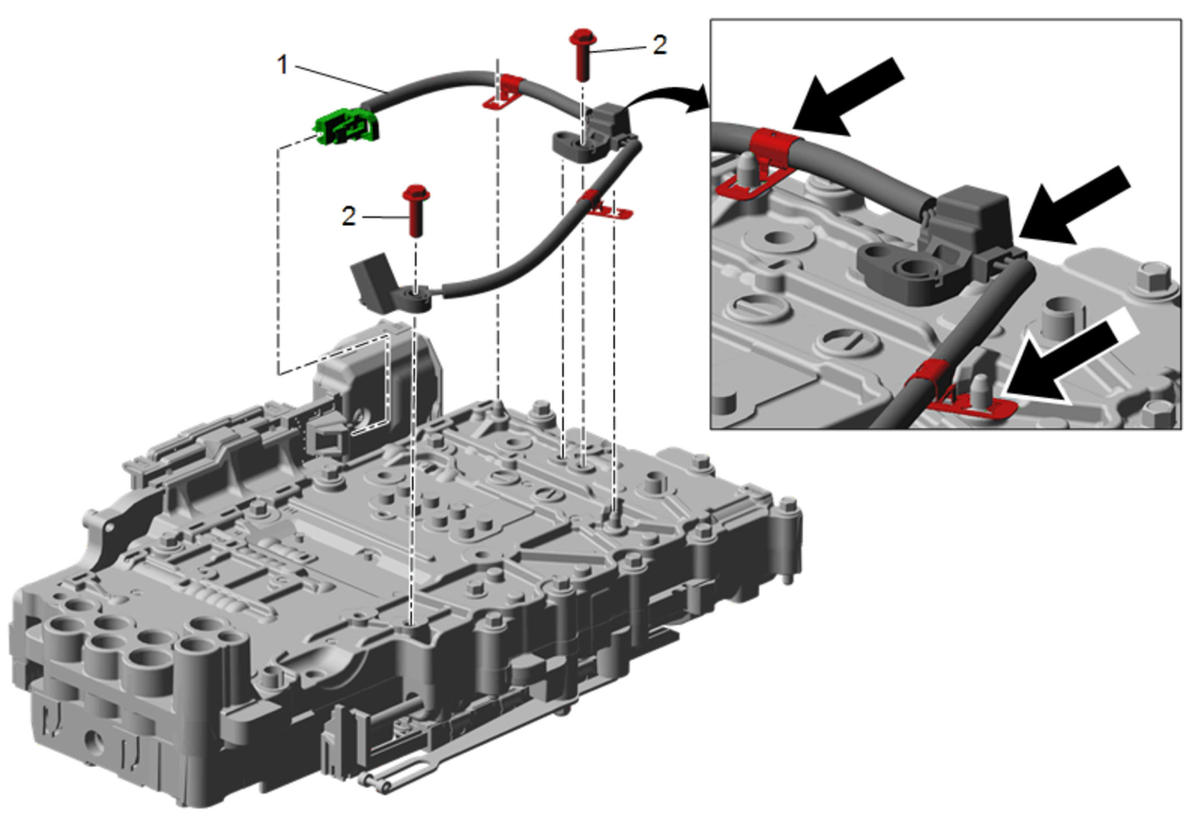

Fig 1: Input and Output Speed Sensor Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Automatic Transmission Input and Output Speed Sensor Procedure Install the wiring harness clips and sensor mount as indicated by the arrows. Connect the wiring harness connector.
2	Automatic Transmission Input and Output Speed Sensor Bolt M6 x 20 (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)

Callout

Component Name

Automatic Transmission Input and Output Speed Sensor

Procedure

Install the wiring harness clips and sensor mount as indicated by the arrows.
Connect the wiring harness connector.

Automatic Transmission Input and Output Speed Sensor Bolt M6 x 20 (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
12 N.m (106 lb in)
