Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

All gasket surfaces should be free of oil or other foreign material during assembly.

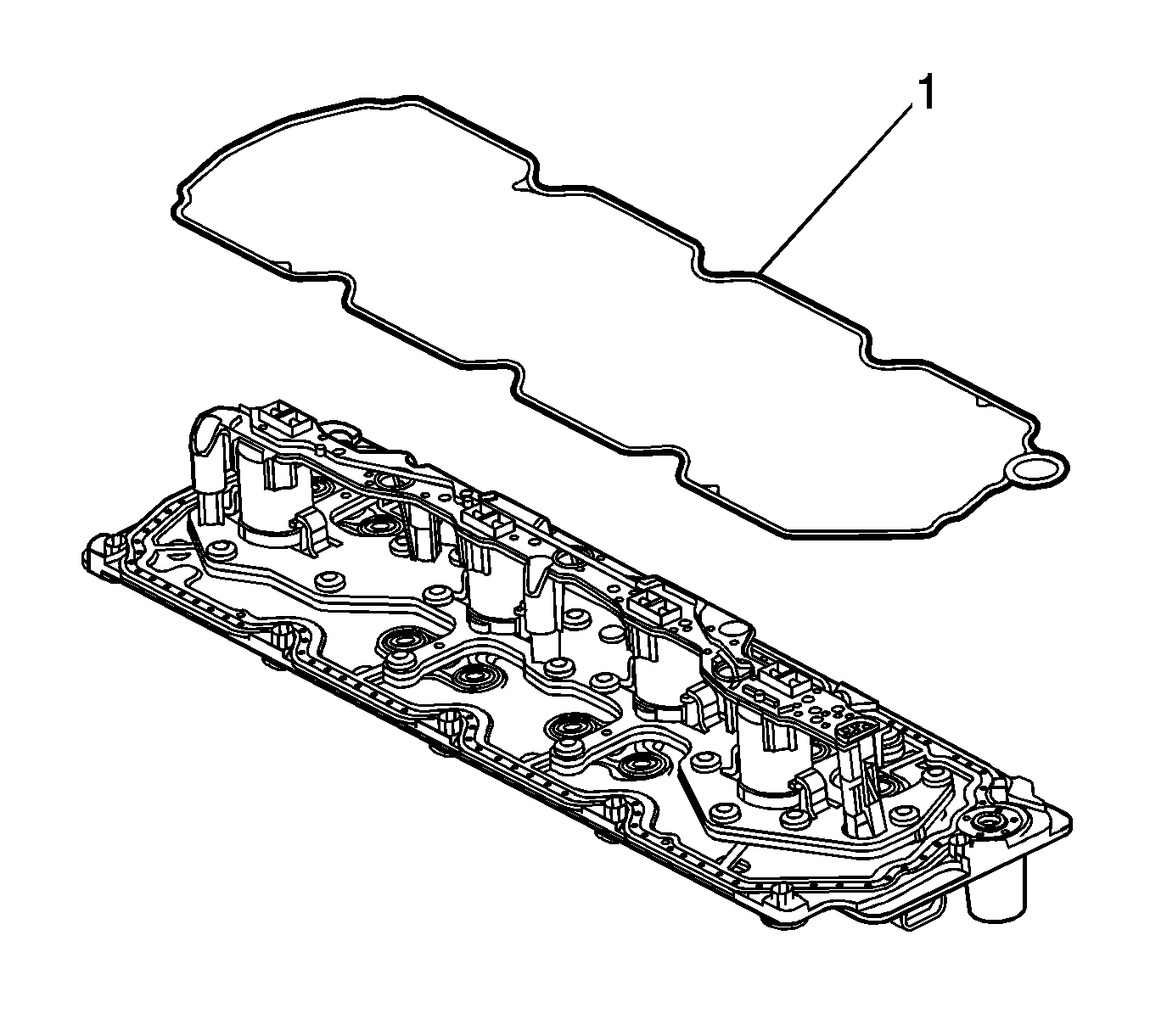

    Fig 1: Valve Lifter Oil Manifold Outer Gasket
    GM1509593Courtesy of GENERAL MOTORS COMPANY
  1. Place the service gasket (1) onto the valve lifter oil manifold.

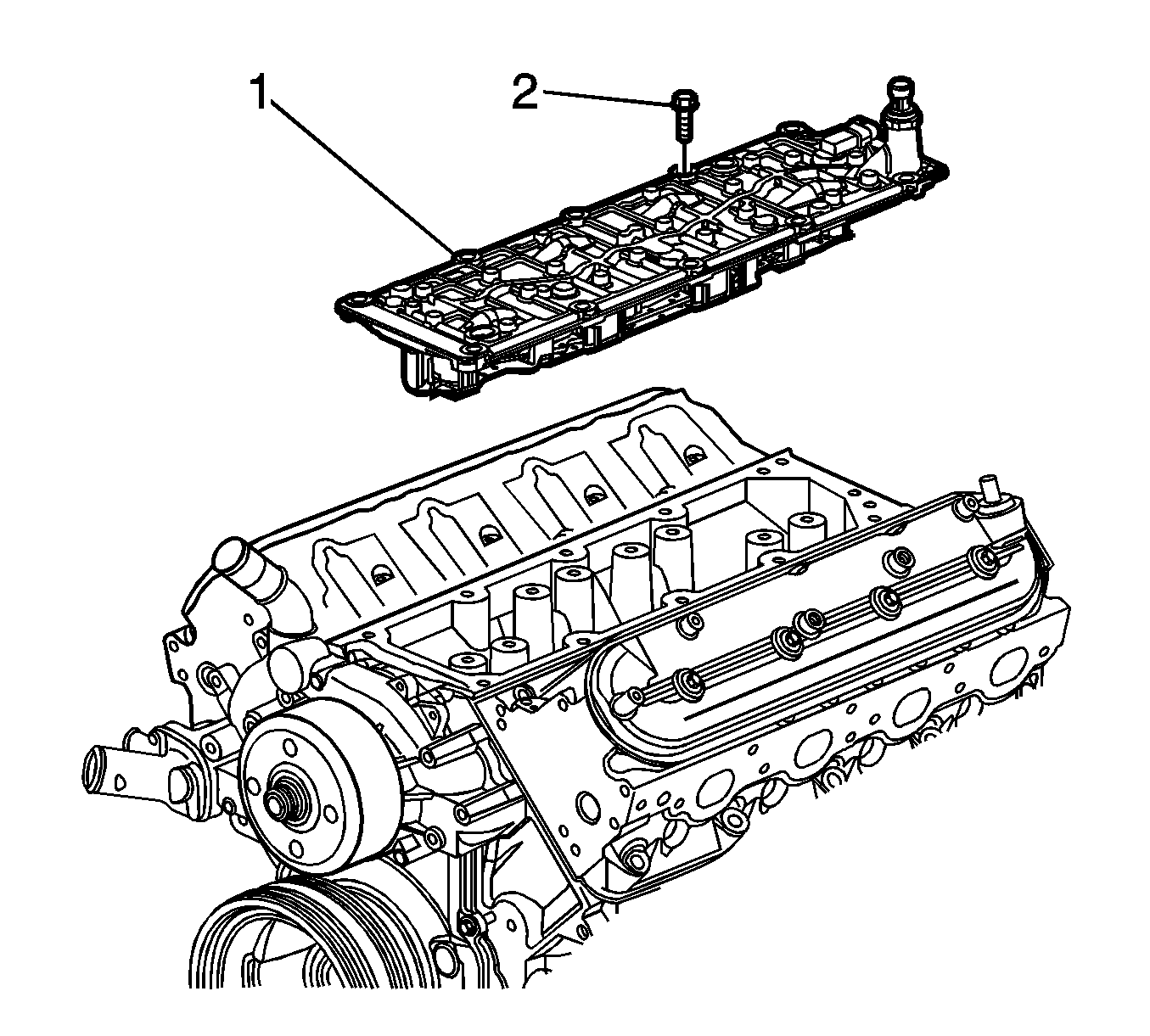

    2. Fig 2: Valve Lifter Oil Manifold And Bolts
    GM1509591Courtesy of GENERAL MOTORS COMPANY
  2. Install the valve lifter oil manifold (1) to the engine.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the valve lifter oil manifold bolts (2).

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

    4. Fig 3: Engine Harness Electrical Connectors, Negative Battery Cable And Engine Harness Ground
    GM1697098Courtesy of GENERAL MOTORS COMPANY
  4. Connect the engine harness electrical connector (1) to the oil pressure sensor.
  5. Install the intake manifold. Refer to Intake Manifold Replacement .
