Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

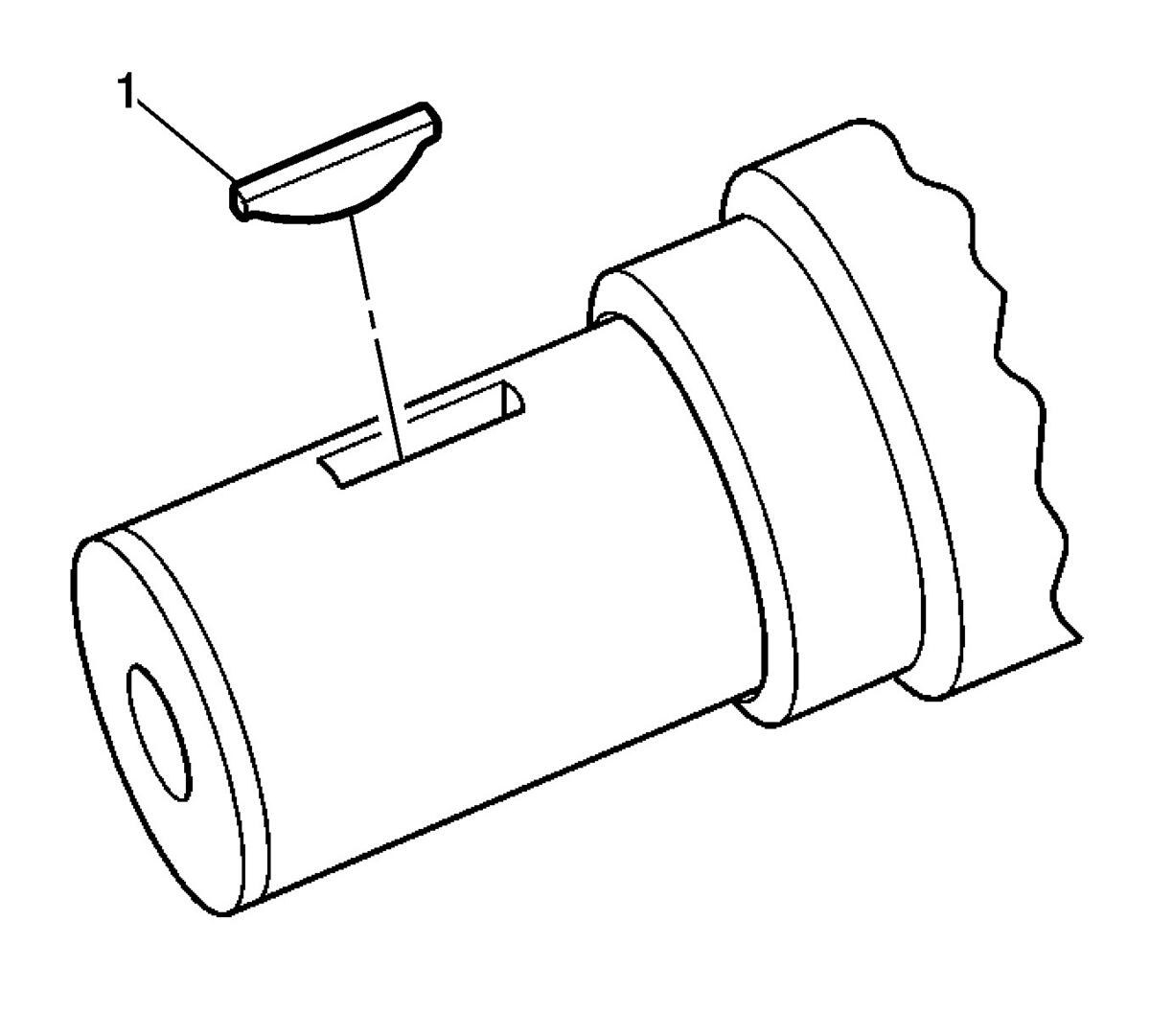

    Fig 1: Key Into Crankshaft Keyway
    GM3277387Courtesy of GENERAL MOTORS COMPANY
  1. Install the key into the crankshaft keyway (1).

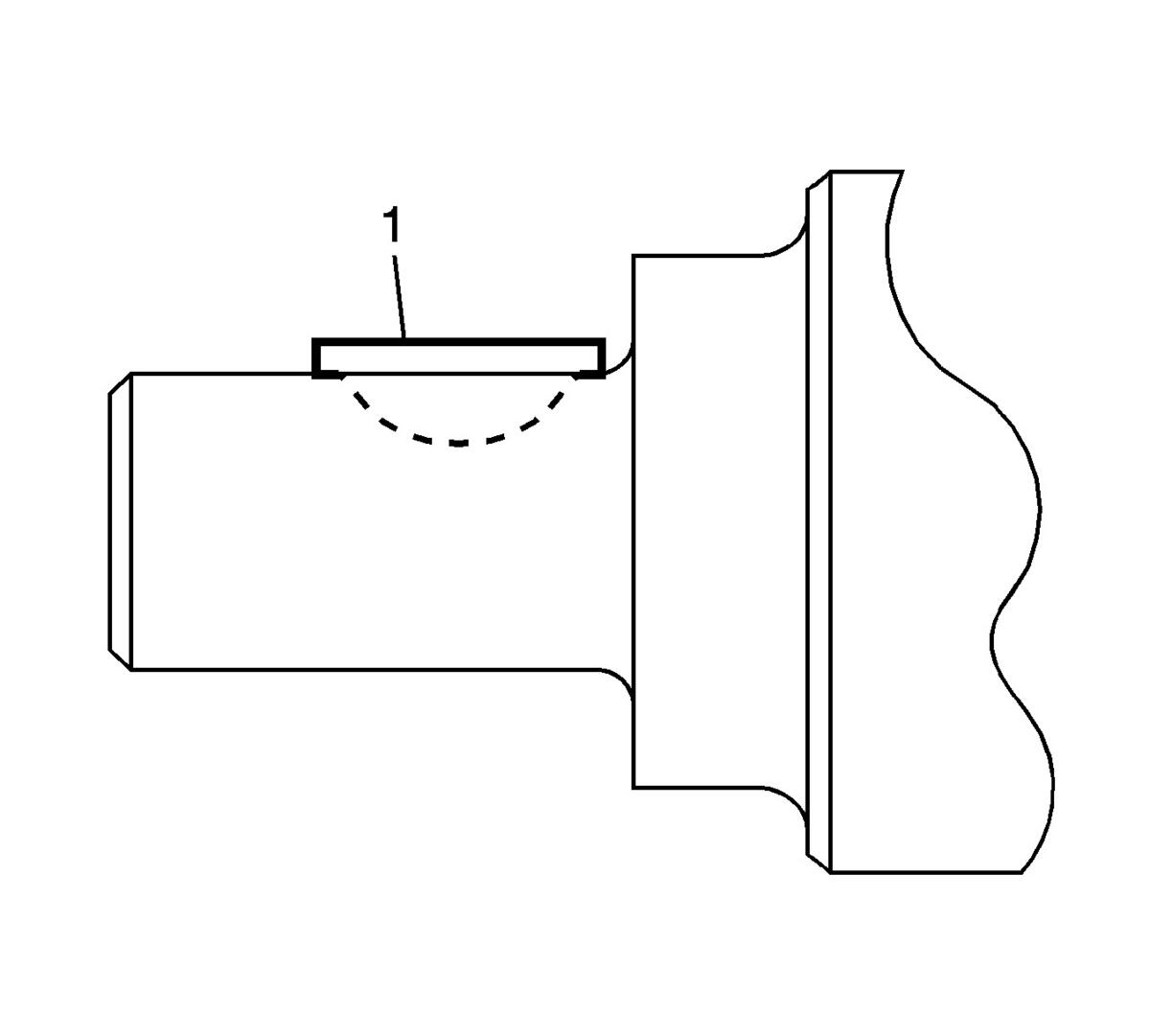

    2. Fig 2: Key Into Keyway
    GM3277389Courtesy of GENERAL MOTORS COMPANY
  2. Tap the key (1) into the keyway until both ends of the key bottom onto the crankshaft.

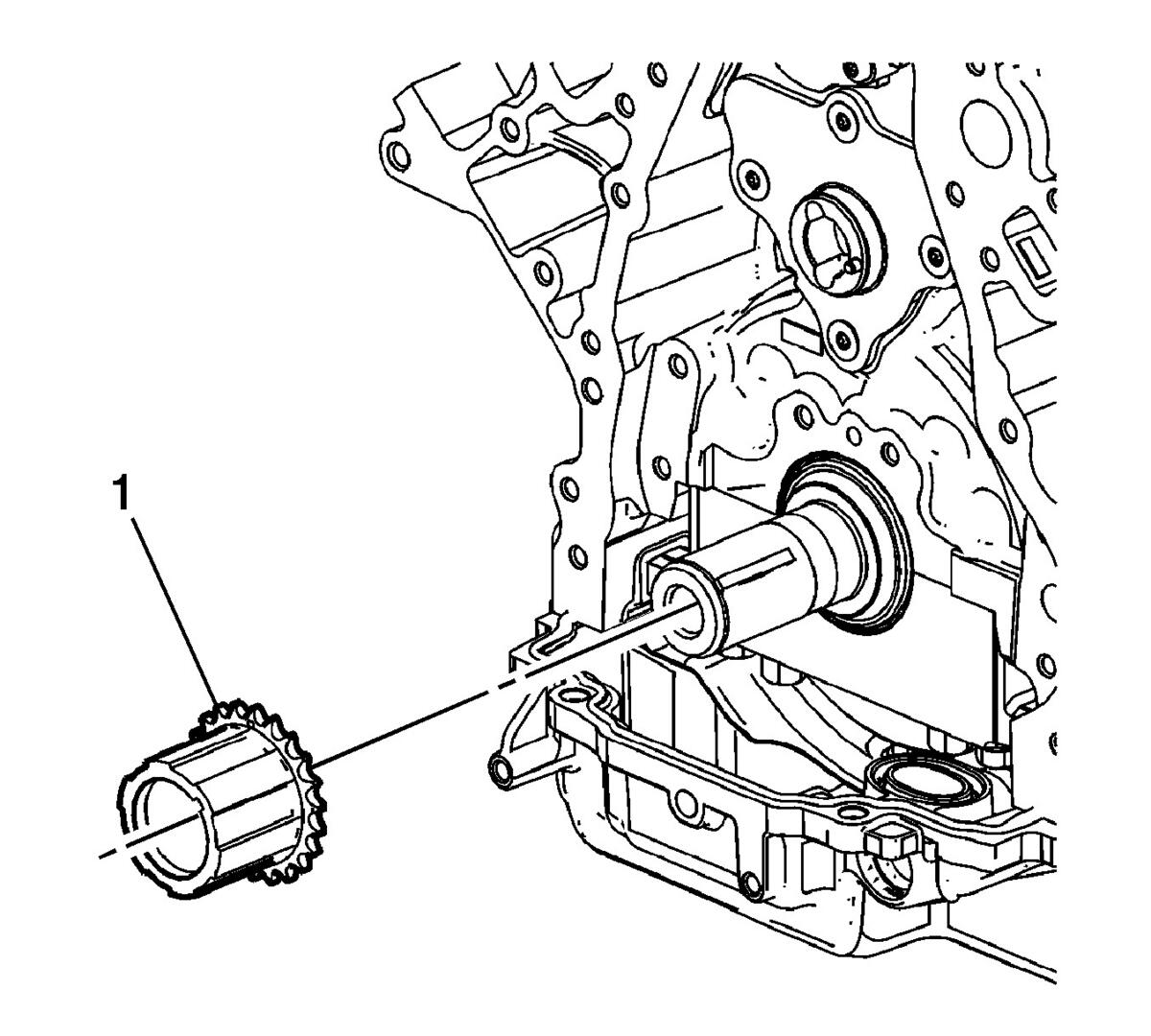

    3. Fig 3: Crankshaft Sprocket
    GM3444078Courtesy of GENERAL MOTORS COMPANY
  3. Install the crankshaft sprocket (1). Align the crankshaft key with the crankshaft sprocket keyway.
    4. Fig 4: Rotating Crankshaft Sprocket Alignment Mark To 12 O'Clock Position
    GM2911792Courtesy of GENERAL MOTORS COMPANY
  4. Rotate the crankshaft until the sprocket alignment mark (1) is in the 12 o'clock position.
    5. Fig 5: Timing Chain Tensioner Guide And Pin
    GM2911795Courtesy of GENERAL MOTORS COMPANY
  5. Compress the timing chain tensioner guide and install the EN-46330  tension pin (1).
    6. Fig 6: Timing Chain Tensioner And Left Side Bolt
    GM2969639Courtesy of GENERAL MOTORS COMPANY
  6. Install the timing chain tensioner (1) and left side bolt (2) hand tight. Do not install the right side bolt at this time. The right side bolt will be installed after the camshaft position (CMP) actuator and chain have been installed onto the engine.
  7. Install the 11 o'clock position balancer shaft retainer bolt hand tight.
    8. Fig 7: Tie Strap Through Center Of Actuator
    GM1714946Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Camshaft Position Actuator Removal and Installation Warning .

  8. Remove the tie strap (1) from the actuator.
    9. Fig 8: Alignment Hole And Locating Pin
    GM1658240Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Properly locate the CMP actuator onto the locating pin of the camshaft.
    • The sprocket teeth and timing chain must mesh
    • The camshaft and the sprocket alignment marks MUST be aligned properly.
    • Do not use the CMP solenoid valve again. Install a NEW valve during assembly.
  9. Identify the alignment hole (1) in the rear face of the CMP actuator and the locating pin (2) on the front face of the camshaft.
    10. Fig 9: CMP Actuator And Timing Chain
    GM2968482Courtesy of GENERAL MOTORS COMPANY
  10. Install the CMP actuator and timing chain (1). Use care to install the actuator completely onto the front of the camshaft. Position fingers onto the face of the actuator sprocket and push the actuator onto the front of the camshaft. Never push on the reluctor wheel when attempting to install the actuator.

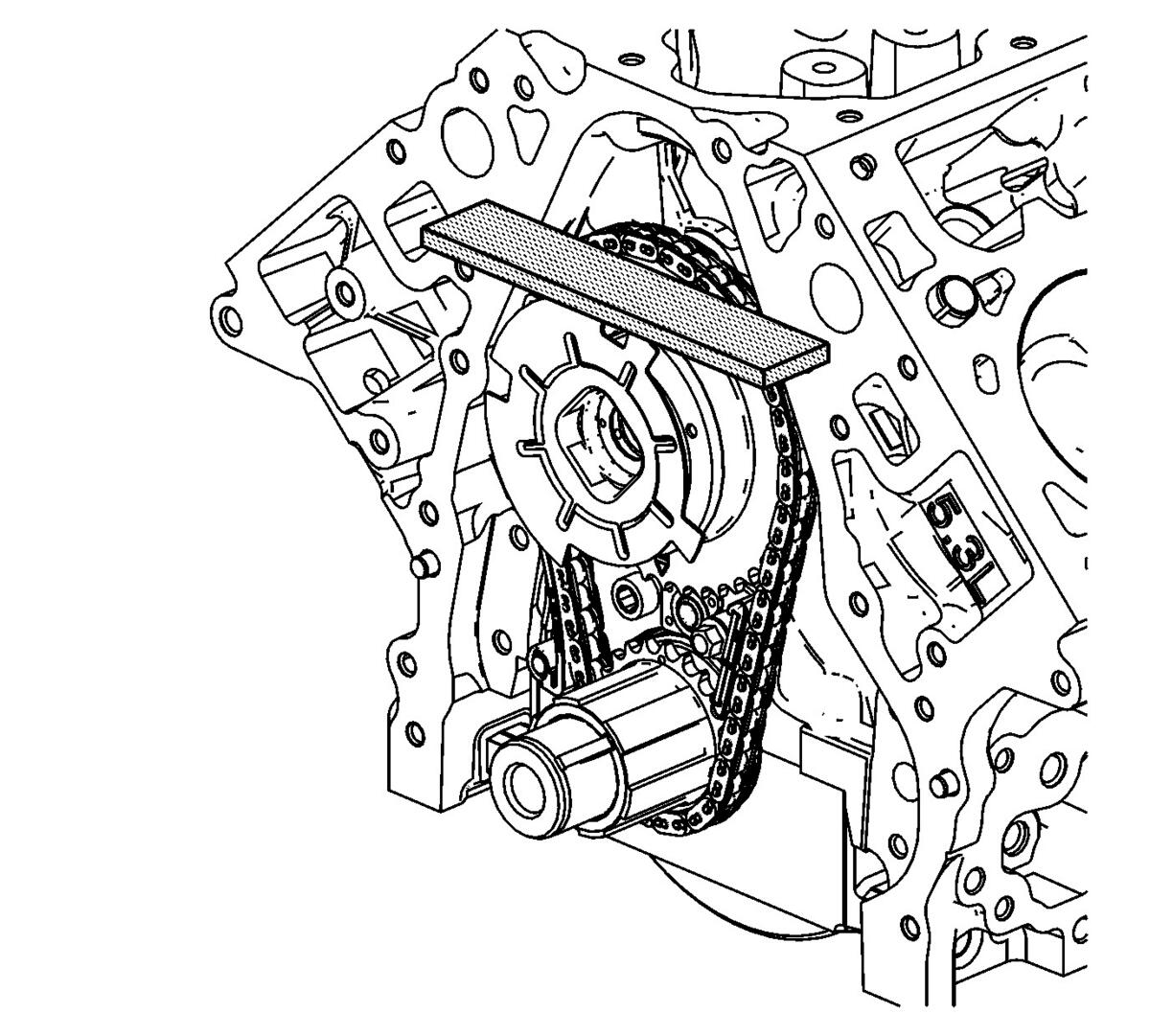

    11. Fig 10: Inspecting For Proper Installation Of CMP Actuator And Timing Chain
    GM2912408Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    It is possible to push the camshaft rearward when installing the CMP actuator. Verify that the camshaft lobes are centered in the valve lifter bores after the CMP actuator is installed.

  11. Locate a straight edge across the front face of the engine block and inspect for proper installation of the CMP actuator and timing chain. With the CMP actuator properly and completely installed onto the front of camshaft, the timing chain will not protrude beyond the front face of engine block.
    12. Fig 11: NEW CMP Actuator Solenoid Valve
    GM2911800Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

  12. Install a NEW CMP actuator solenoid valve (1). With the CMP actuator properly positioned onto the camshaft, the CMP actuator solenoid valve can be threaded completely into the camshaft using light hand pressure. Tighten by hand until snug.
    1. First pass 65 N.m (48 lb ft).
    2. Final pass 90 degrees.
    13. Fig 12: CMP Actuator Sprocket And Crankshaft Sprocket Alignment Marks
    GM1670623Courtesy of GENERAL MOTORS COMPANY
  13. Inspect the sprockets for proper alignment. The mark on the CMP actuator sprocket (1) should be located in the 6 o'clock position and the mark on the crankshaft sprocket (2) should be located in the 12 o'clock position.

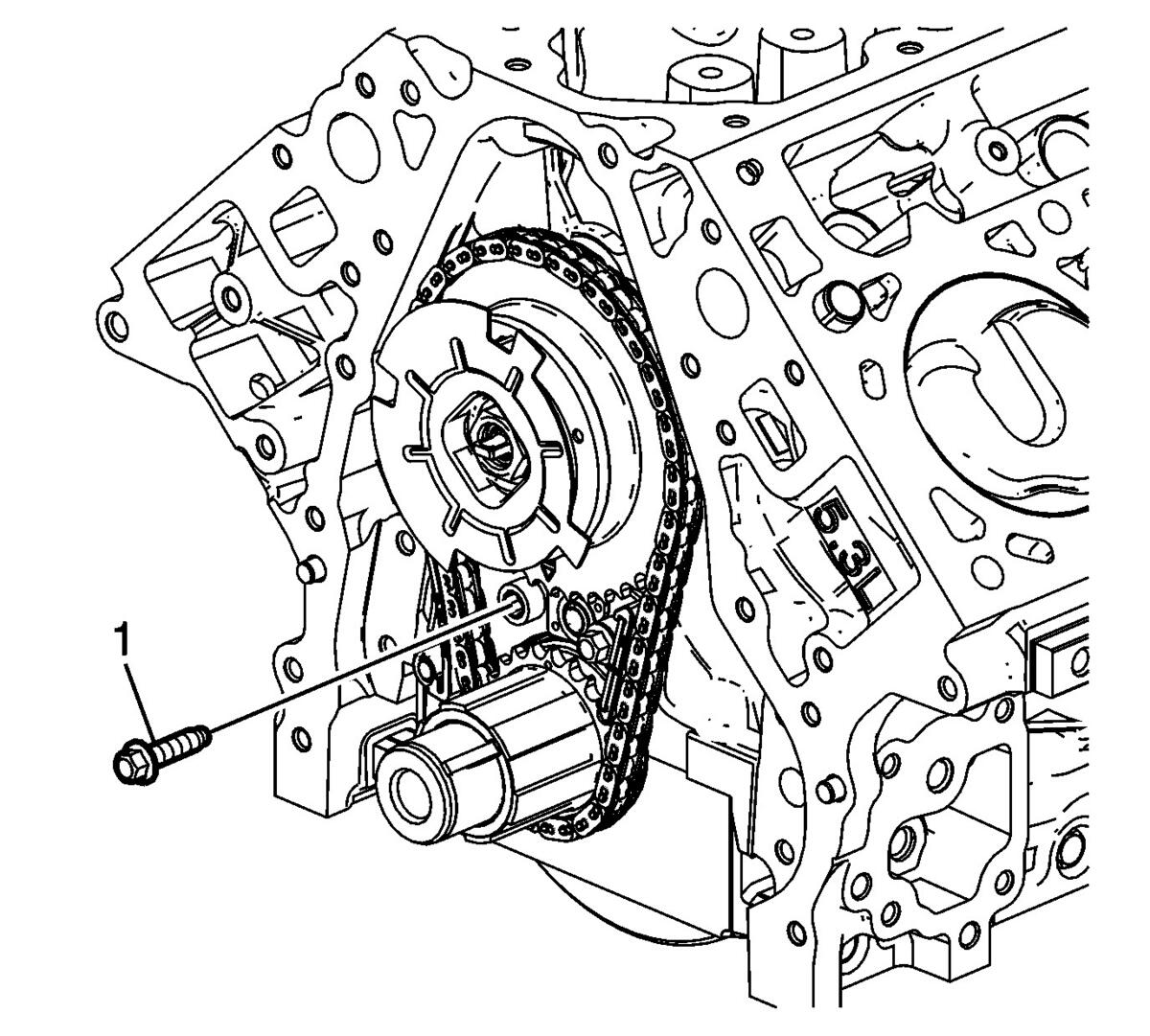

    14. Fig 13: Timing Chain Tensioner Right Side Bolt
    GM2911802Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  14. Install the right side bolt (1) into the timing chain tensioner and tighten both bolts to 30 N.m (22 lb ft).
  15. Install oil pump. Refer to Oil Pump, Screen, and Crankshaft Oil Deflector Replacement .
