Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

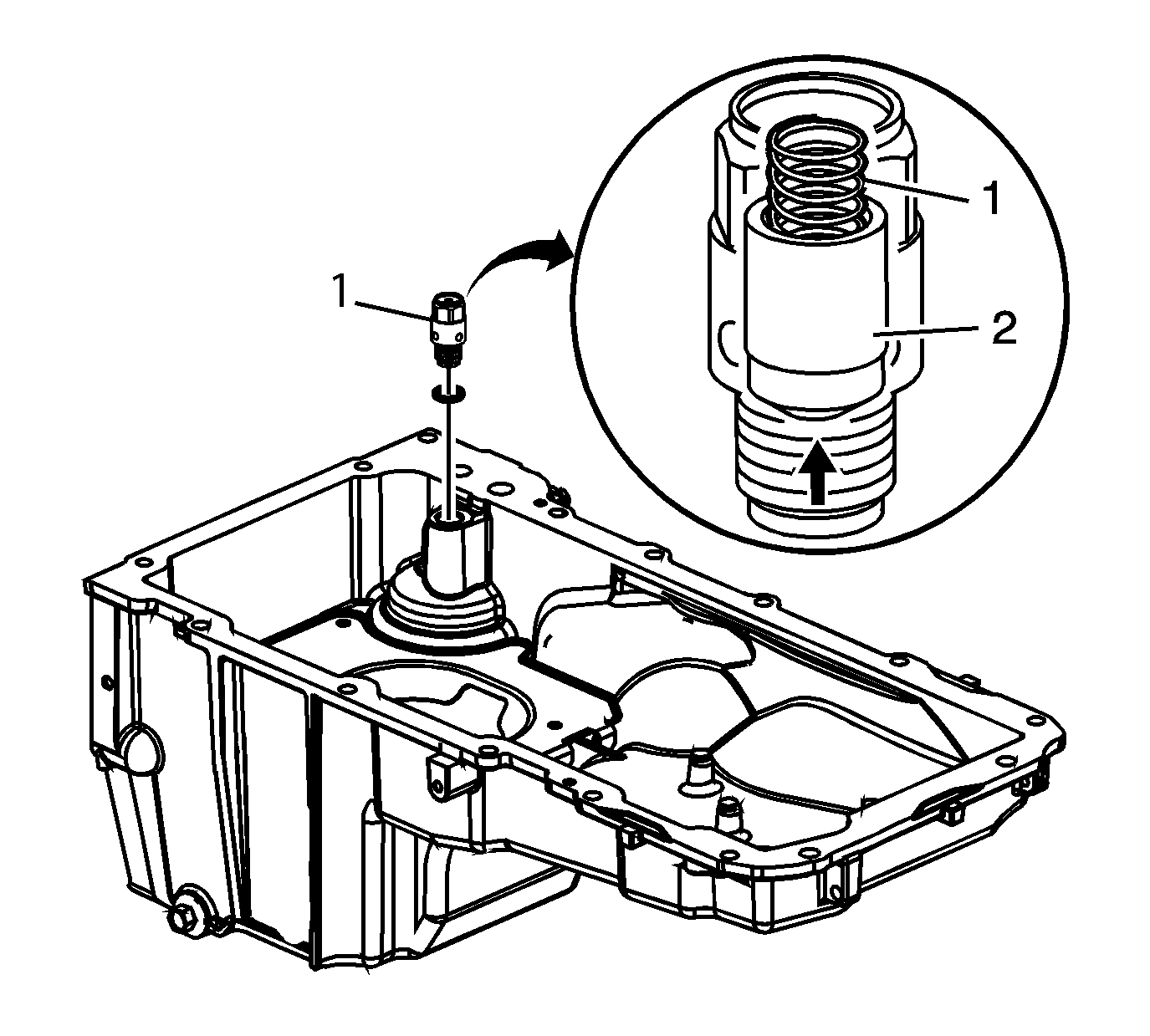

    Fig 1: Oil Pressure Relief Valve
    GM3635055Courtesy of GENERAL MOTORS COMPANY
  1. Inspect the NEW oil pressure relief valve for proper operation. Lightly depress the ball (2). The valve spring (1) should seat the ball to the proper closed position.
  2. Install the NEW oil pressure relief valve (1) and washer.
  3. Install the oil pan. Refer to Oil Pan Replacement .
