Oil Pan Cover Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

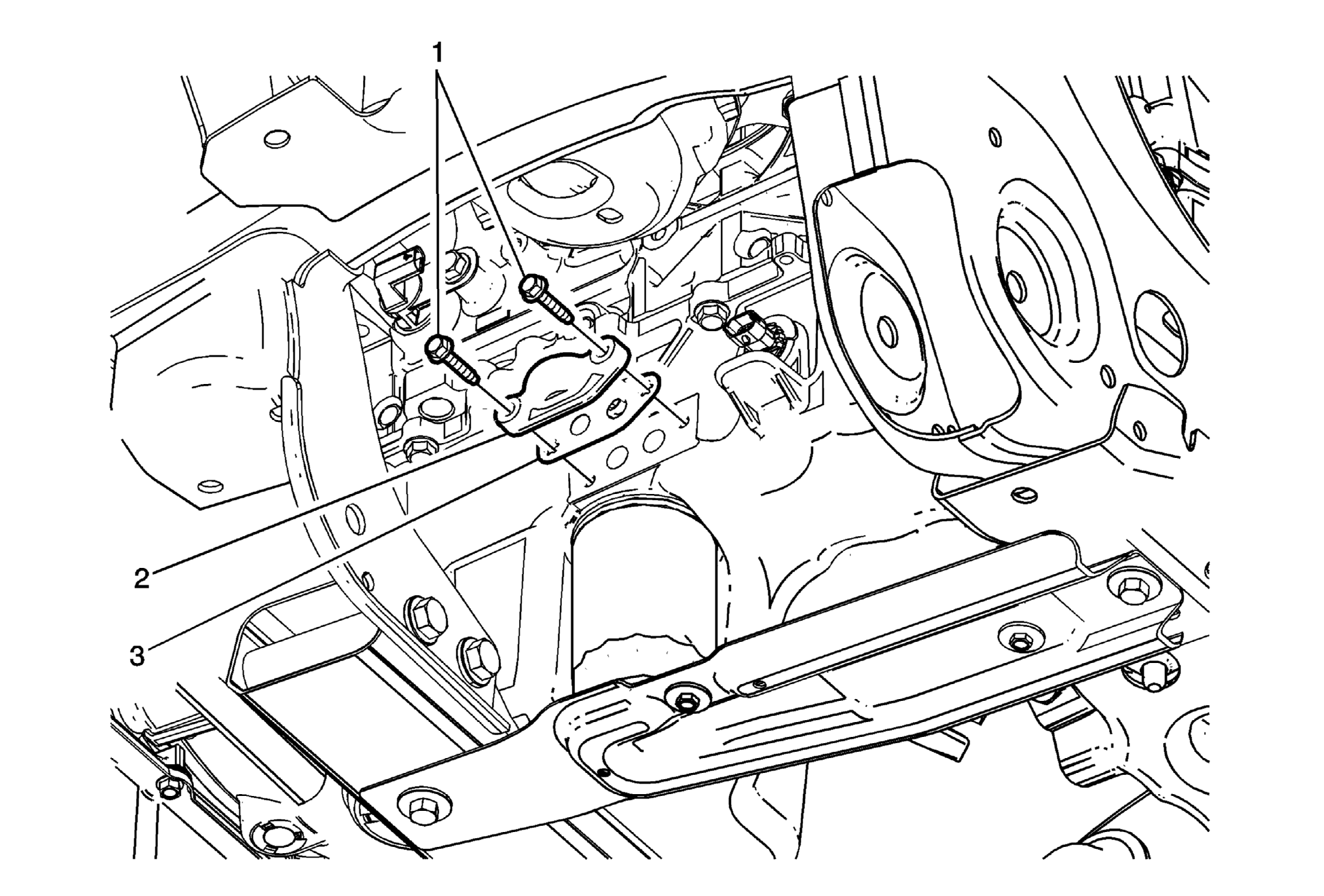

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the steering gear skid shield. Refer to Steering Gear Skid Shield Replacement |
|
| 1 | Oil Pan Cover Fastener
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Oil Pan Cover |
| 3 | Oil Pan Cover Gasket Procedure A NEW gasket must be used when installing the oil pan cover. |
