Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

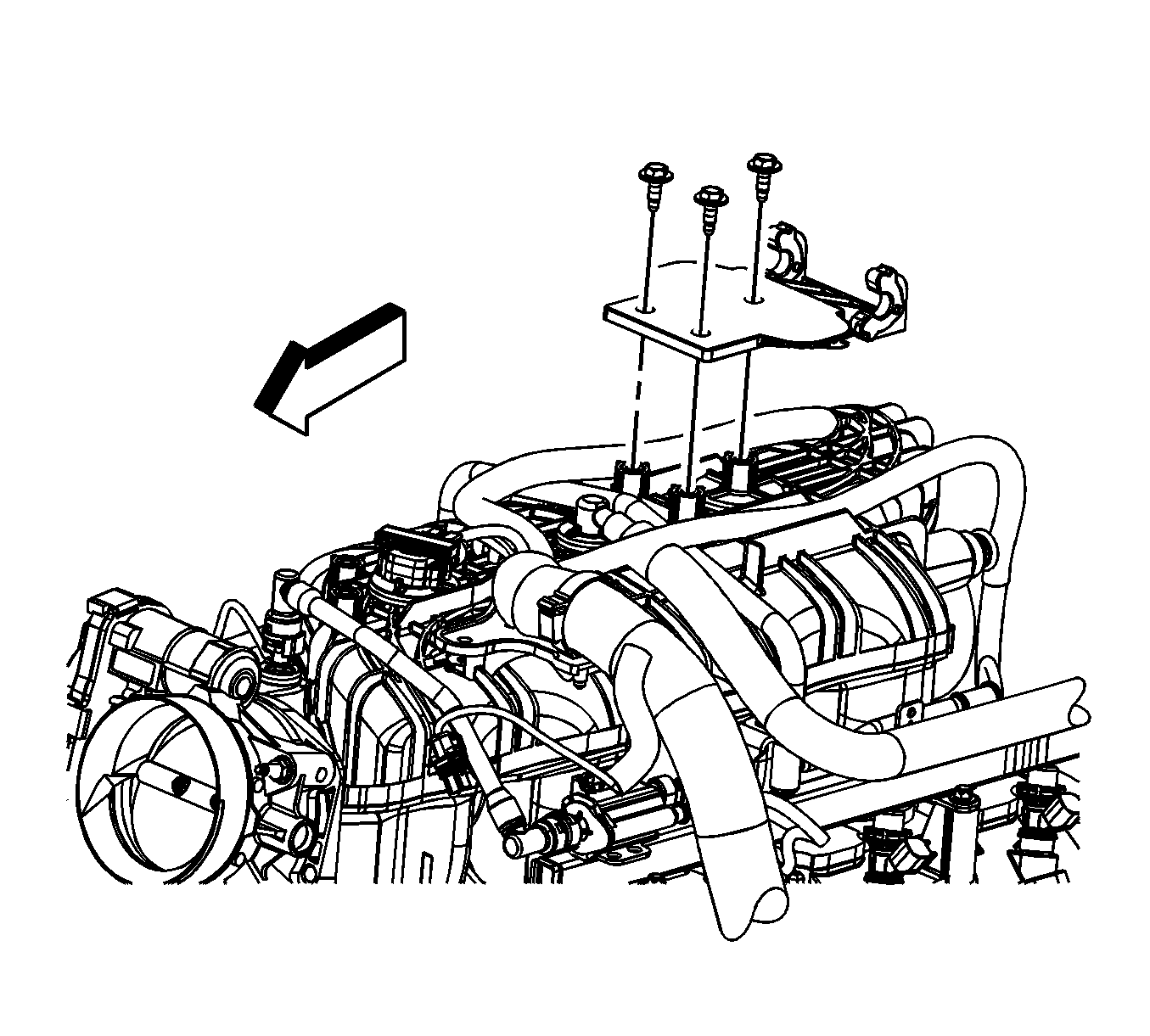

    Fig 1: Intake Manifold Sight Shield Retainer & Bolts
    GM1696801Courtesy of GENERAL MOTORS COMPANY
  1. Position the intake manifold cover retainer on top of the intake manifold.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the intake manifold sight shield retainer bolts.

    Tighten

    Tighten the bolts to 5 N.m (44 lb in).

  3. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
