Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

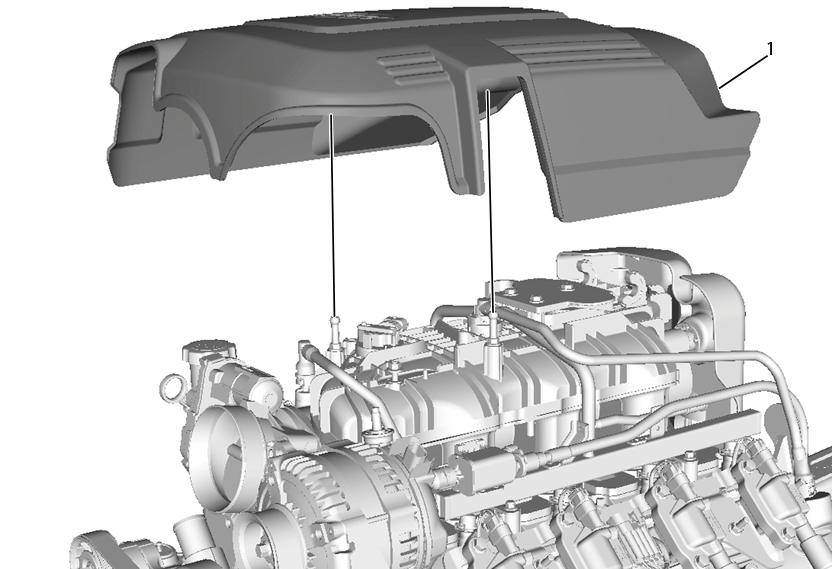

    Fig 1: Intake Manifold Cover
    GM3629900Courtesy of GENERAL MOTORS COMPANY
  1. Align the intake manifold cover grommets with the studs.
  2. Gently push down on the intake manifold cover over the grommets, seating the intake manifold cover.
