Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

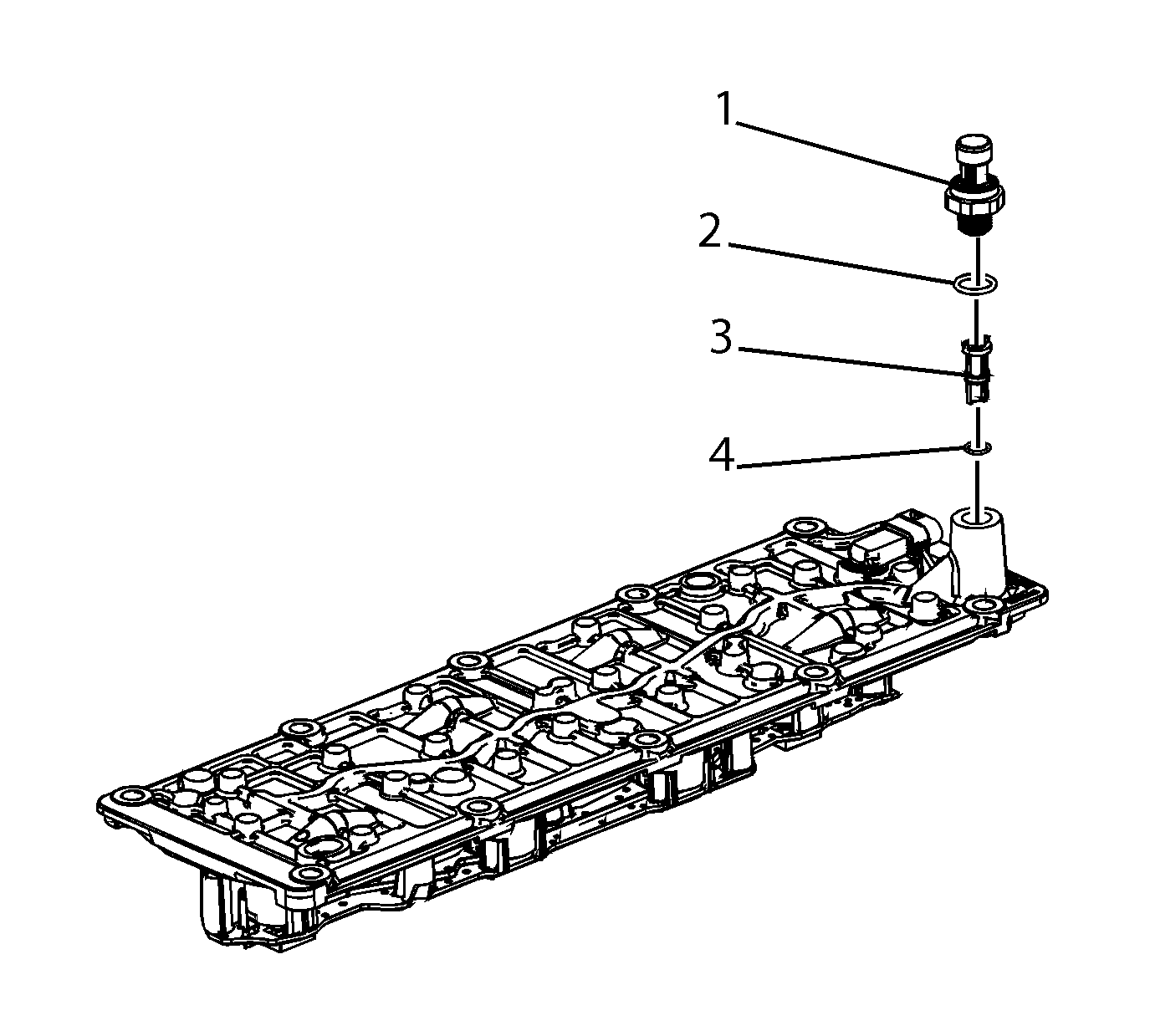

Fig 1: Oil Pressure Sensor, Washer, Filter And Seal

Courtesy of GENERAL MOTORS COMPANY

Apply sealant to the threads of the NEW oil pressure sensor. Refer to Adhesives, Fluids, Lubricants, and Sealers .
Install NEW oil pressure sensor filter (3).

CAUTION:

Refer to Component Fastener Tightening Caution .

If equipped with active fuel management perform the following step, using J 41712 oil pressure switch socket or equivalent. Install the washer (2) and oil pressure sensor (1).
Tighten the sensor to 35 N.m (26 lb ft).

Fig 2: Oil Pressure Sensor And Washer

Courtesy of GENERAL MOTORS COMPANY

If not equipped with active fuel management, perform the following step, using J 41712 oil pressure switch socket or equivalent. Install the washer (2) and oil pressure sensor (1). Tighten the sensor to 35 N.m (26 lb ft)

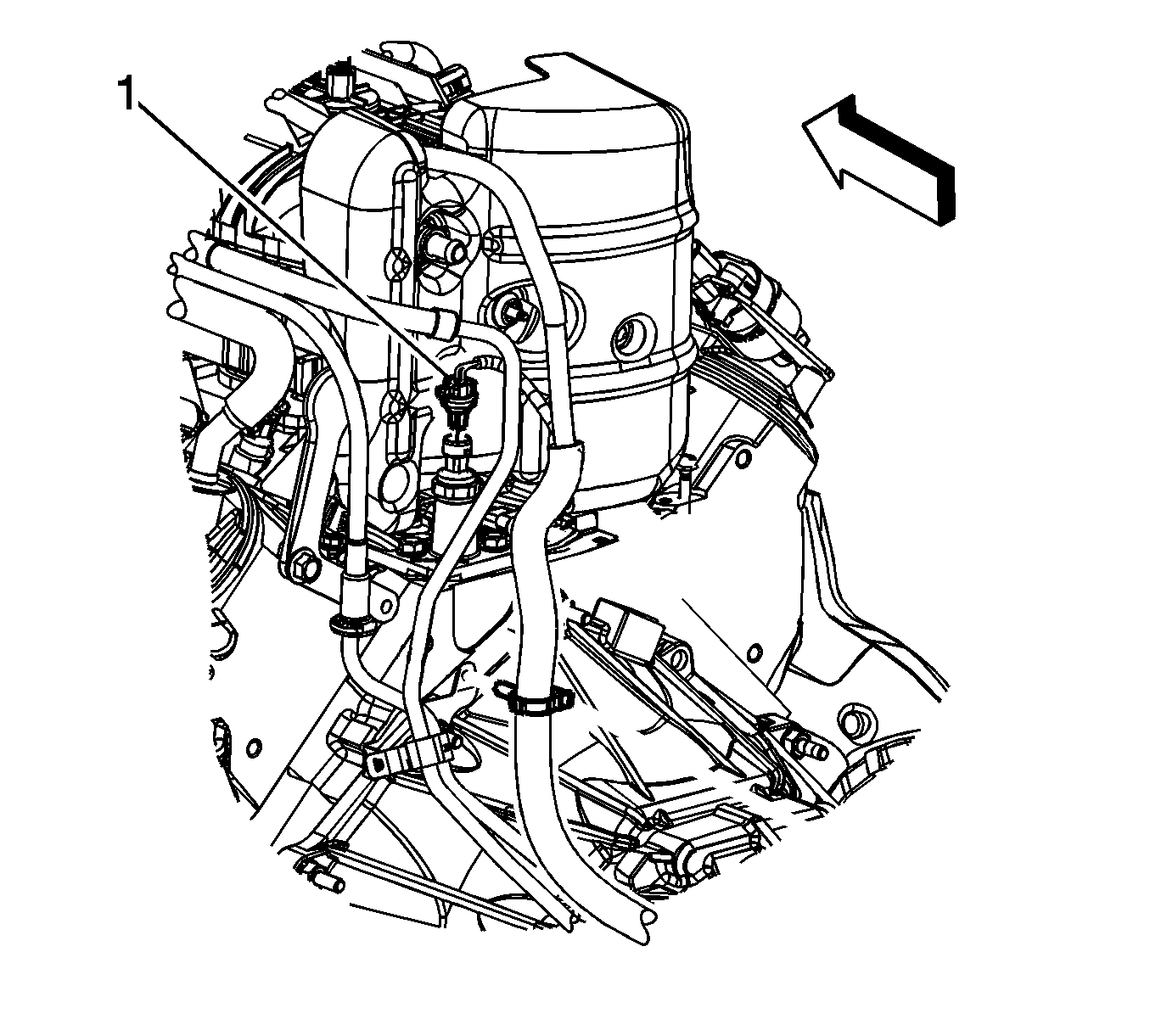

Fig 3: Oil Pressure Sensor Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Connect the engine harness electrical connector (1) to the oil pressure sensor.
Install the intake manifold. Refer to Intake Manifold Replacement .
