Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Drive Belt. Refer to Drive Belt Replacement - Accessory
  2. Remove Steering Gear Skid Shield. Refer to Steering Gear Skid Shield Replacement

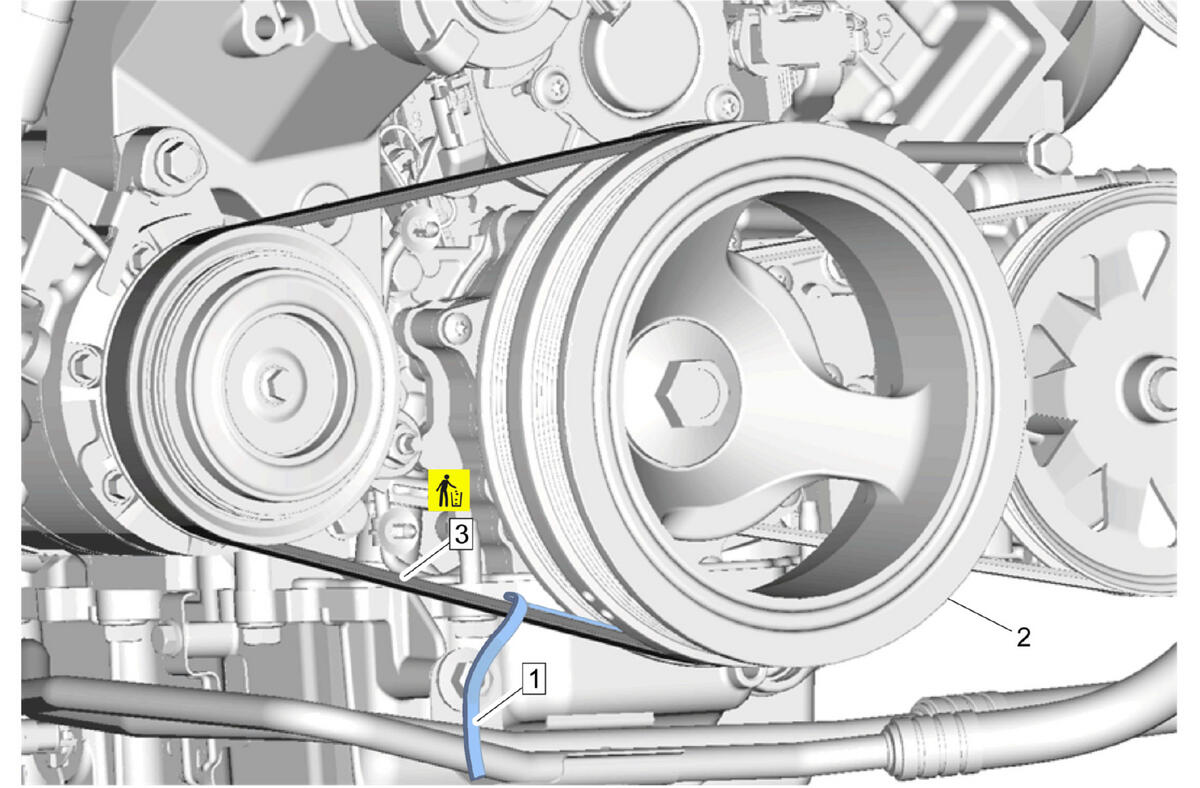

    3. Fig 1: Webbing, Crankshaft Pulley And Belt
    GM4604111Courtesy of GENERAL MOTORS COMPANY
  3. Insert the EN-51767-5  Webbing (1) between the pulley (2) and belt (3).
  4. While walking the EN-51767-5  Webbing around the circumference of the pulley, rotate the crankshaft pulley counterclockwise.
  5. Once the EN-51767-5  Webbing is around the circumference of the crankshaft pulley, pull the loose end of the EN-51767-5  Webbing inward toward the engine, removing the belt from the crankshaft pulley.
  6. Remove the belt from the air conditioning compressor pulley and then from the vehicle.
