Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

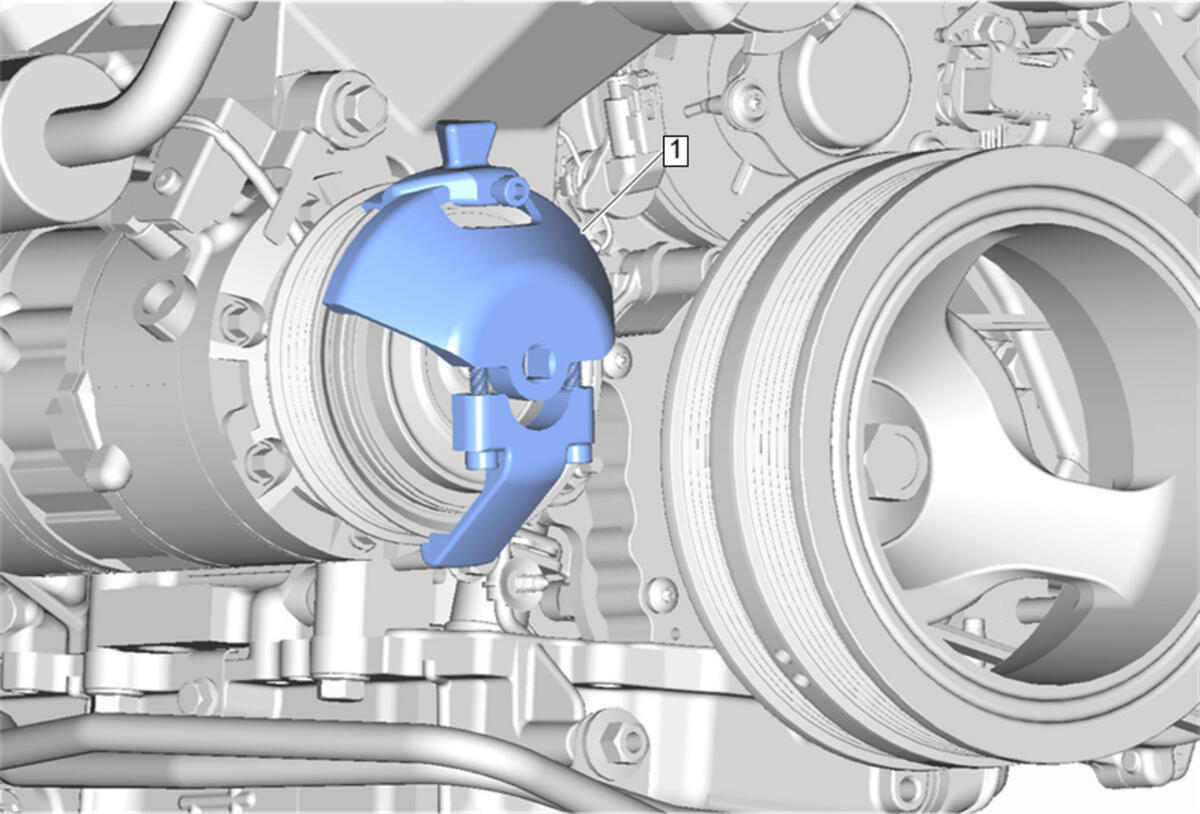

    Fig 1: Universal Stretchy Belt Installer
    GM4604055Courtesy of GENERAL MOTORS COMPANY
  1. Install EN-51767-1  Universal Stretchy Belt Installer (1) onto the balancer.

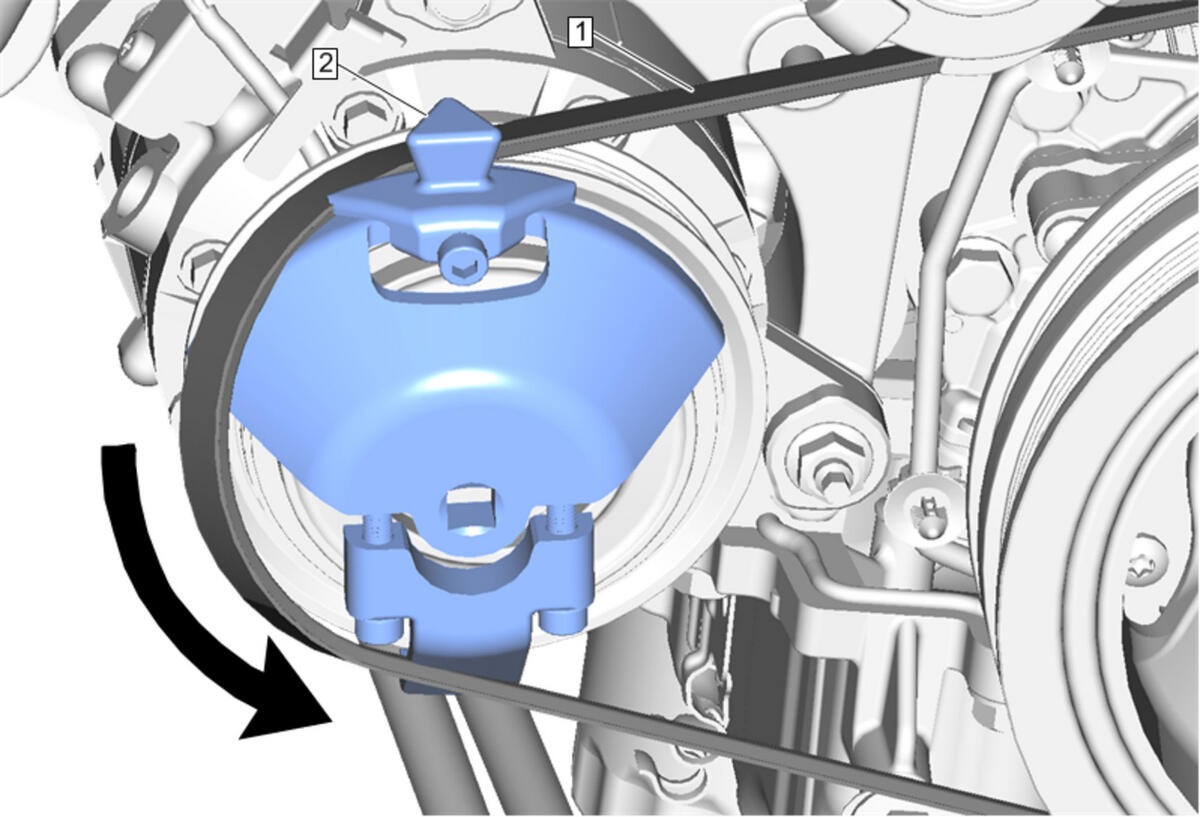

    2. Fig 2: Installing A/C Belt
    GM4604058Courtesy of GENERAL MOTORS COMPANY
  2. Position the belt (1) on the A/C pulley and the balancer as shown.
  3. Slide the belt installation tool downward, positioning the belt onto the A/C pulley, applying light tension to the belt.
  4. Slowly rotate the crankshaft and compressor pulleys in a counterclockwise direction until the belt (1) fully seats on both pulleys.
  5. Inspect the belt for proper installation and alignment.
  6. Rotate the balancer an additional 360 degrees to ensure proper belt installation.
  7. Install Steering Gear Skid Shield. Refer to Steering Gear Skid Shield Replacement
  8. Install Drive Belt. Refer to Drive Belt Replacement - Accessory
