Piston And Connecting Rod Disassemble

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

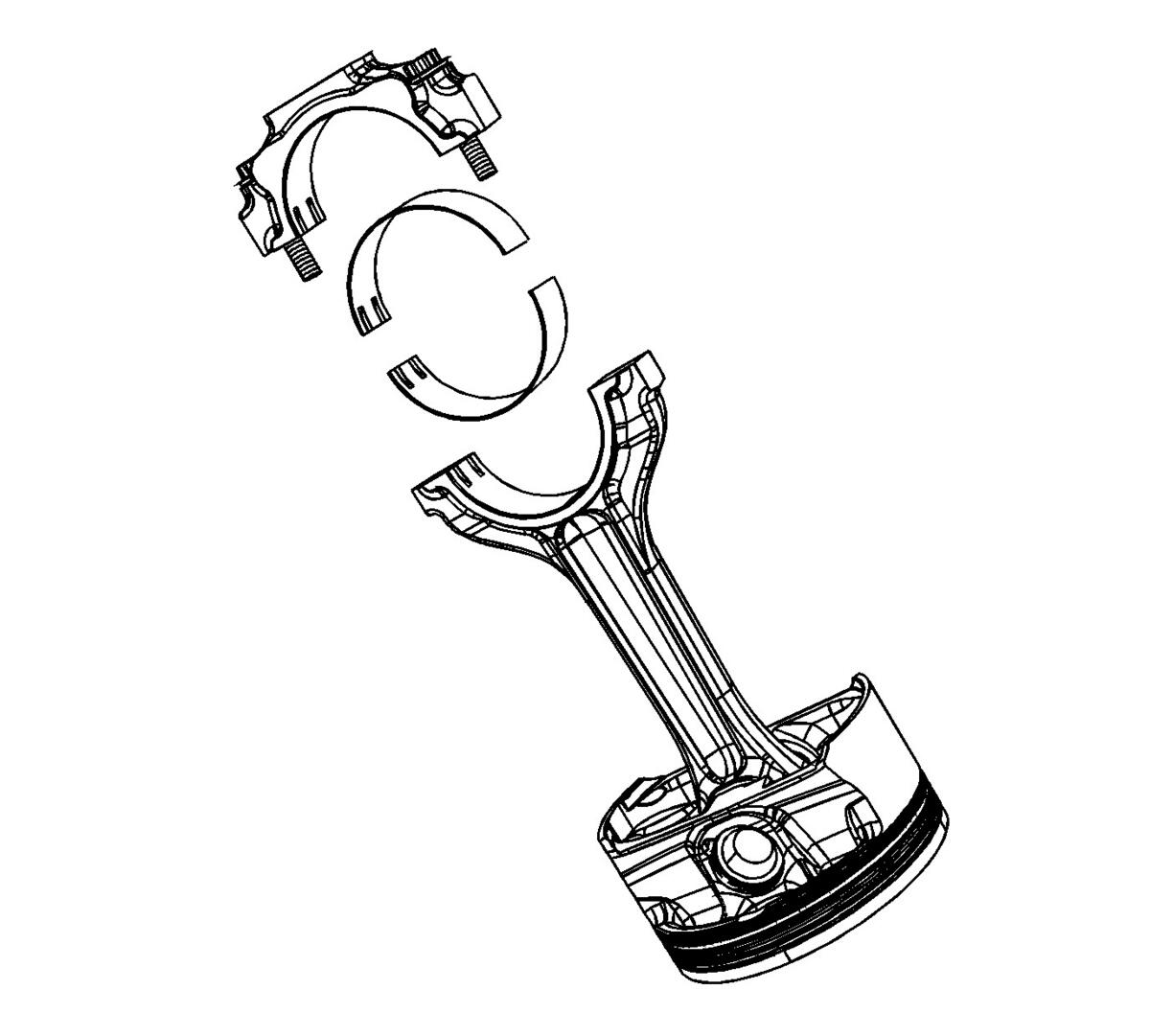

Fig 1: Piston, Connecting Rod And Connecting Rod Bearing

Courtesy of GENERAL MOTORS COMPANY

Remove the connecting rod bearings from the rod and cap.

Fig 2: Removing/Installing Piston Rings

Courtesy of GENERAL MOTORS COMPANY

Using piston ring pliers, remove the piston rings from the piston.

Fig 3: Cutout Area Of Pin Bore

Courtesy of GENERAL MOTORS COMPANY

Rotate the piston pin retainers until the ring end gaps are positioned in the cutout area (1) of the pin bore.

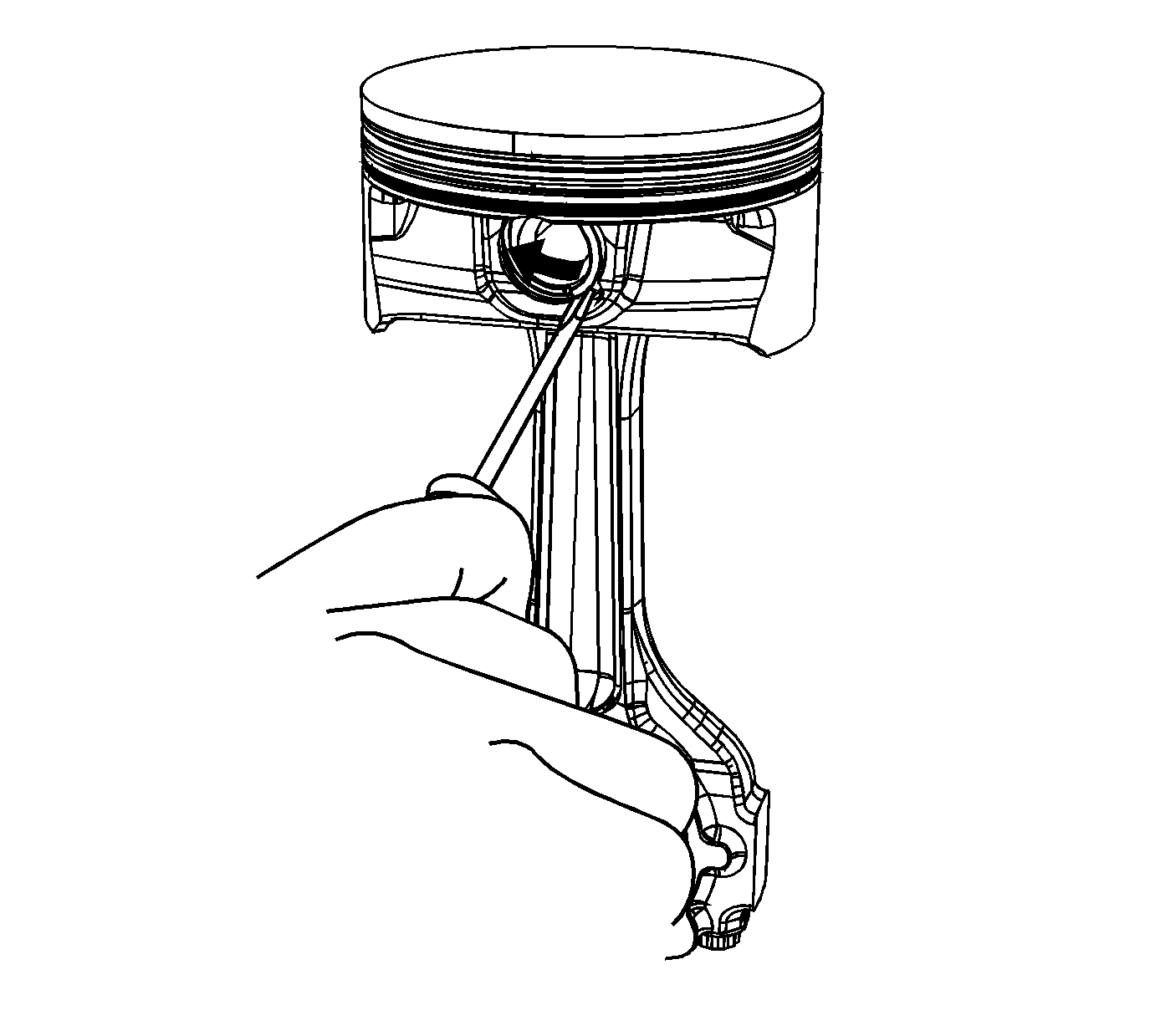

Fig 4: Removing Piston Pin Retainer

Courtesy of GENERAL MOTORS COMPANY

Remove the retainers starting in the cutout area of the pin bore.

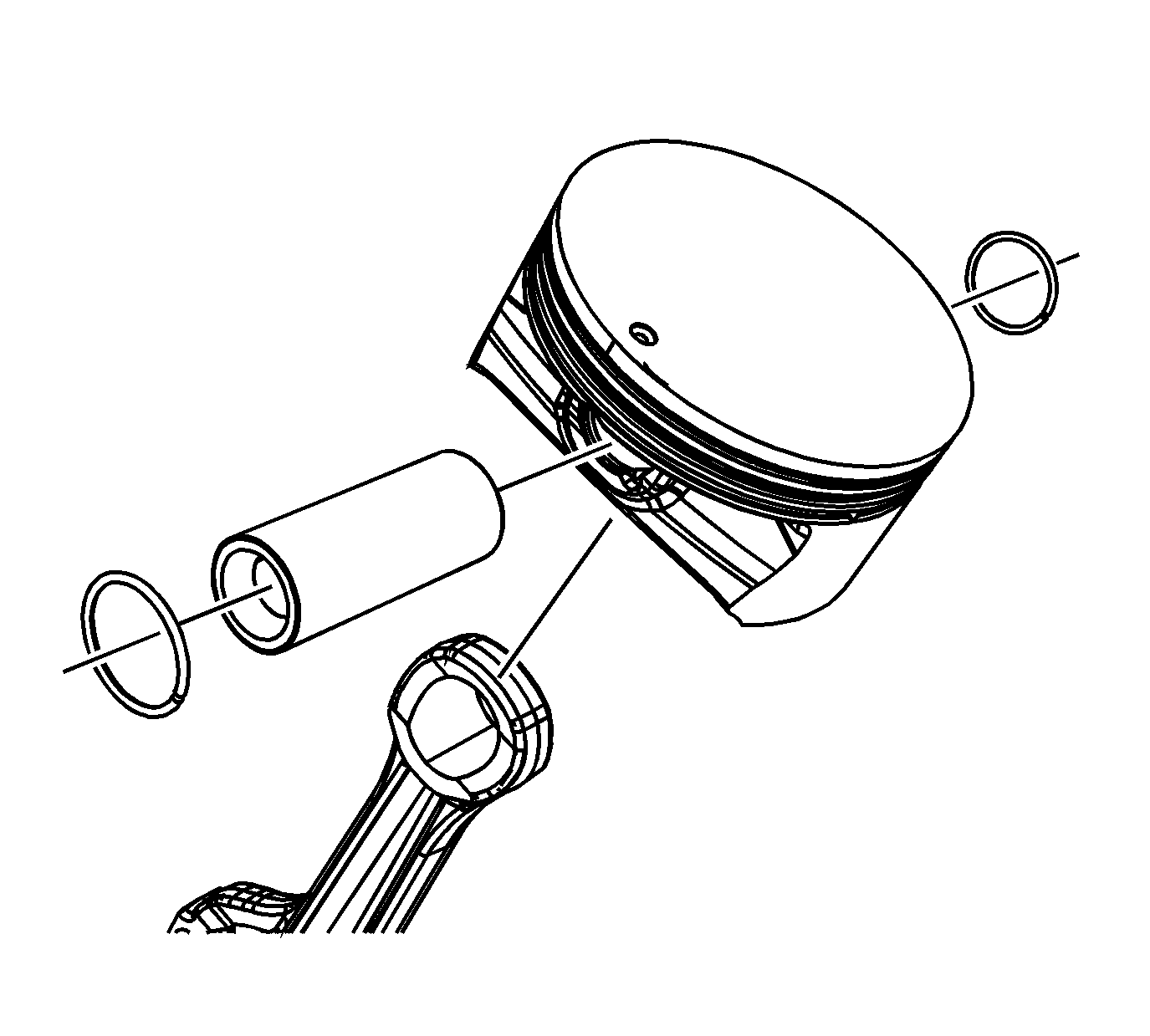

Fig 5: Piston Pin, Piston And Connecting Rod

Courtesy of GENERAL MOTORS COMPANY

Remove the pin from the piston and connecting rod.
The piston and pin are a matched set and are not to be serviced separately.
Mark, sort, or organize the piston and the matching piston pin.
