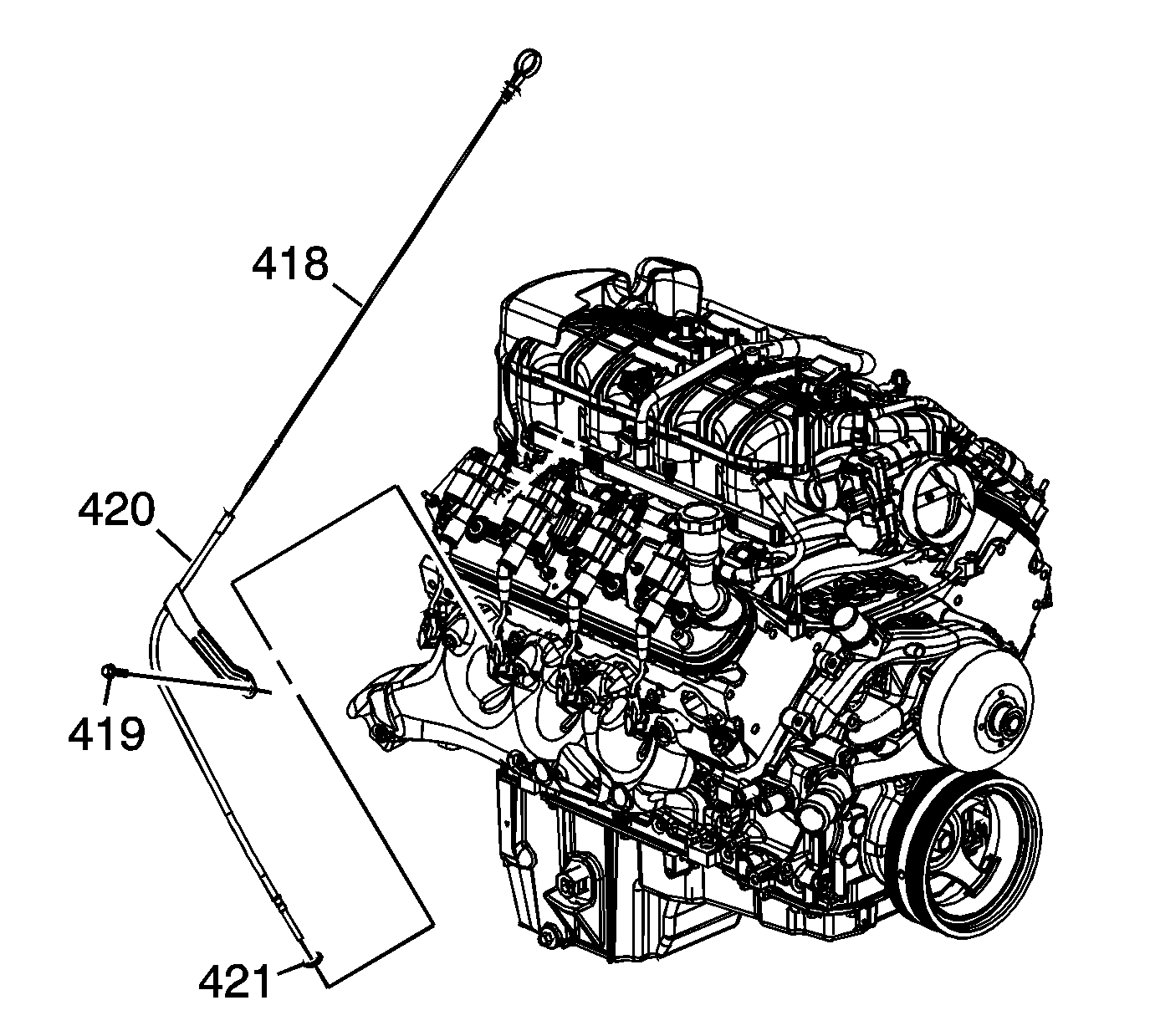

Oil Level Indicator And Tube Installation
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the O-ring seal (421) for cuts or damage. If the oil level indicator tube O-ring seal is not cut or damaged, it may be used again.
- Lubricate the O-ring seal with clean engine oil.
- Install the O-ring seal onto the oil level indicator tube (420).
- Install the oil level indicator tube into the engine block and rotate into proper position.
- Install the tube bolt (419) and tighten to 25 N.m (18 lb ft).
- Install the oil level indicator (418) into the tube.
CAUTION:
Refer to Fastener Caution .
