Fuel Rail And Injectors Installation
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

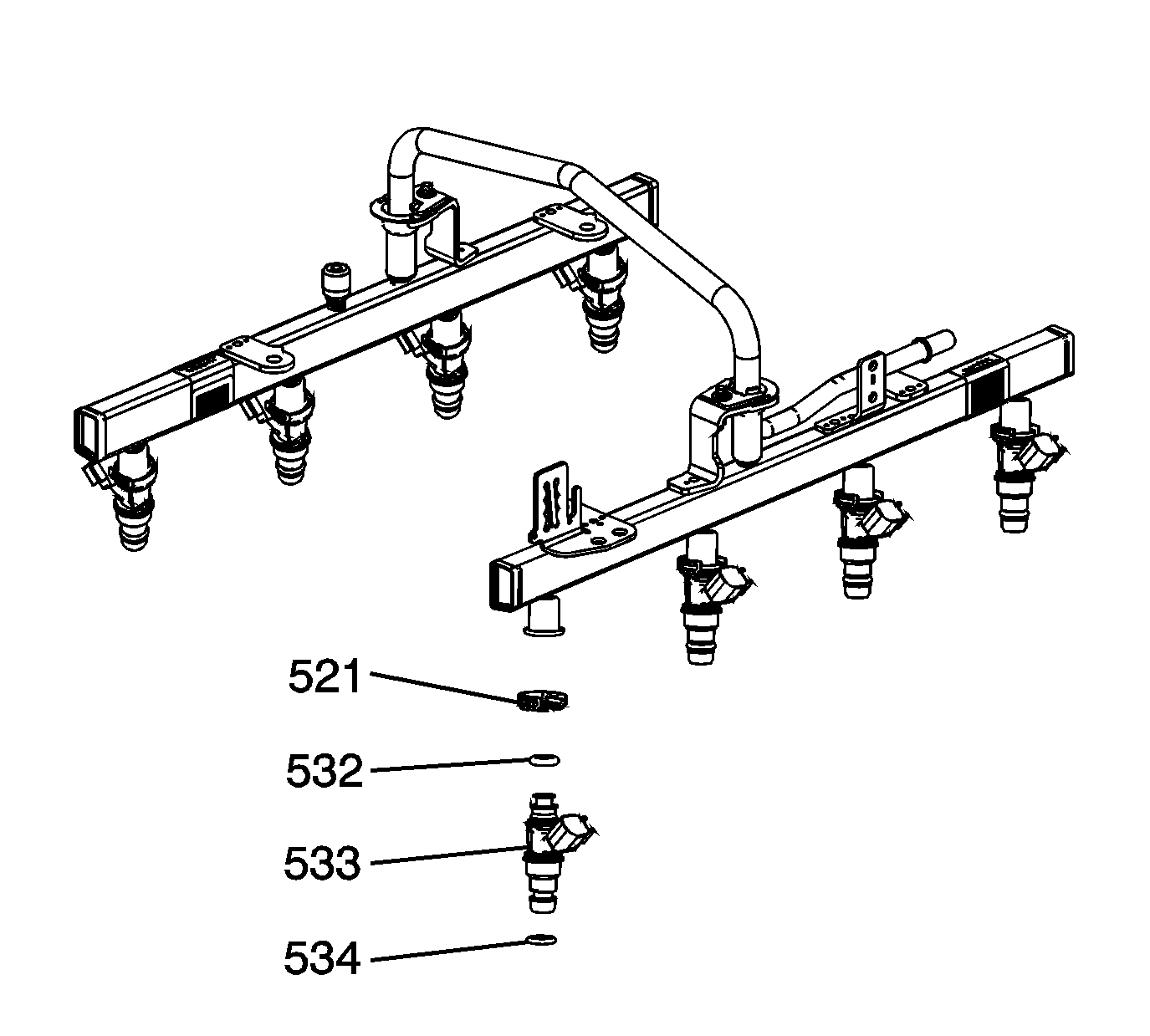

- Lubricate the NEW fuel injector O-ring seals (532, 534) with clean engine oil.
- Install the O-ring seals to the fuel injectors.
- Install the fuel injectors (533) and retainers (521).

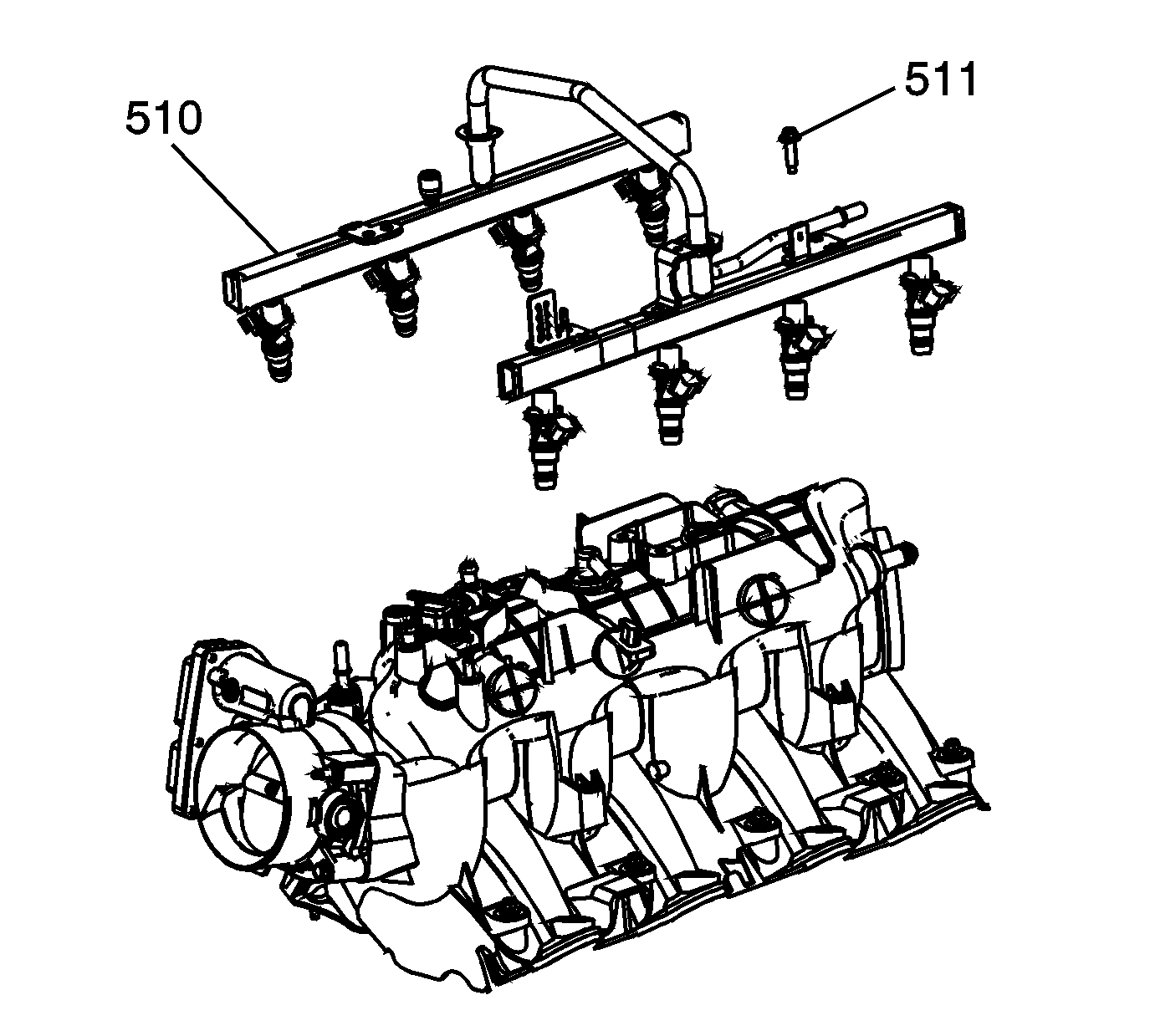

- Install the fuel rail assembly (510) to the manifold. Push firmly on both sides of the rail until all the injectors have entered their bores.
- Apply a 5 mm (0.2 in) band of threadlock to the threads of the fuel rail bolts. Adhesives, Fluids, Lubricants, and Sealers
- Install the fuel rail bolts (511) and tighten to 10 N.m (89 lb in).

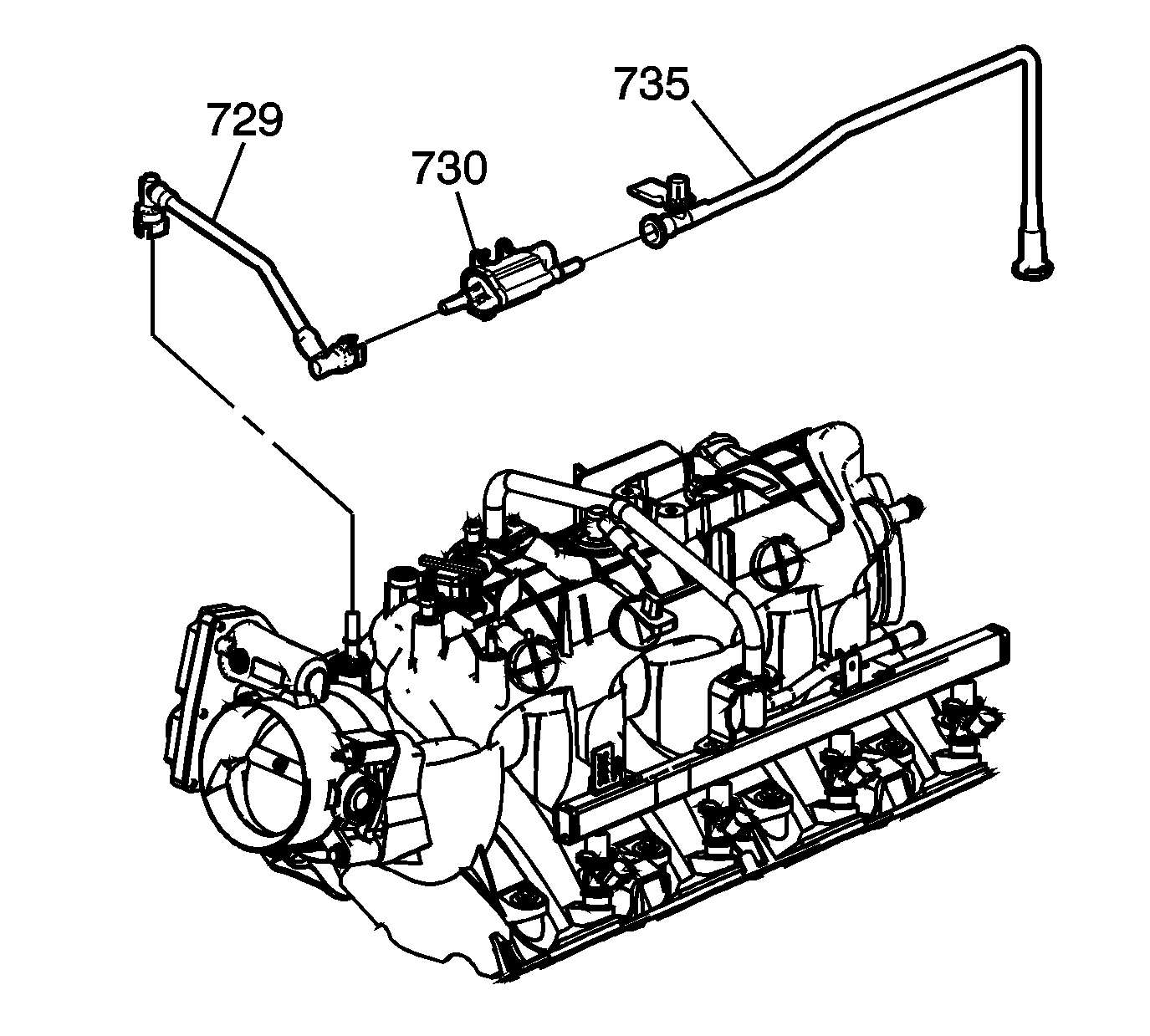

- Install the evaporative emission (EVAP) canister purge solenoid valve (730) and tubes (729, 735).
- Install the fuel rail stop bracket and bolt and tighten to 50 N.m (37 lb ft).
WARNING:
Refer to Fuel Rail Stop Bracket Installation Warning .
NOTE:
DO NOT use the fuel injector O-ring seals again. Install NEW fuel injector O-ring seals during assembly.
CAUTION:
Refer to Fastener Caution .
