Engine Front Cover Removal

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

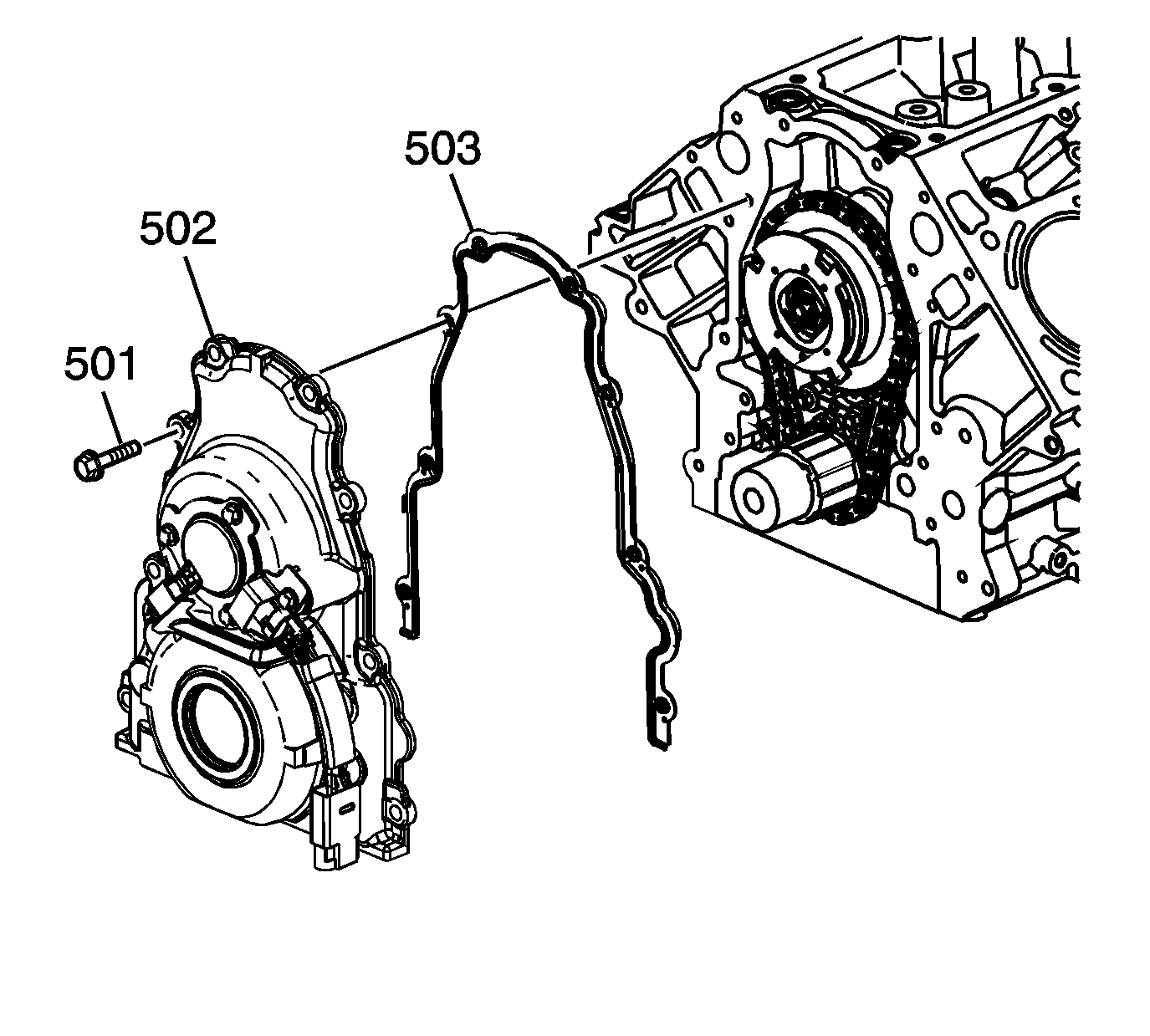

    Fig 1: Front Cover, Bolts And Gasket
    GM1658162Courtesy of GENERAL MOTORS COMPANY
  1. Remove the front cover bolts (501).
  2. Remove the front cover (502) and gasket (503).
  3. Discard the front cover gasket.
    4. Fig 2: CMP Sensor Wire Harness And Bolts
    GM1658163Courtesy of GENERAL MOTORS COMPANY
  4. Remove the camshaft position (CMP) sensor wire harness (737) and bolts (738).
    5. Fig 3: CMP Sensor And O-Ring
    GM1658166Courtesy of GENERAL MOTORS COMPANY
  5. Remove the CMP sensor (703).
  6. Remove the O-ring (704) from the sensor, as required.
    7. Fig 4: CMP Actuator Magnet, Bolts, Gasket And Oil Seal
    GM1658168Courtesy of GENERAL MOTORS COMPANY
  7. Remove the CMP actuator magnet (752), bolts (751), and gasket (753).
  8. Remove the oil seal (140).
