Camshaft Timing Chain And Sprocket Cleaning And Inspection
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the components with cleaning solvent.
- Dry the components with compressed air.

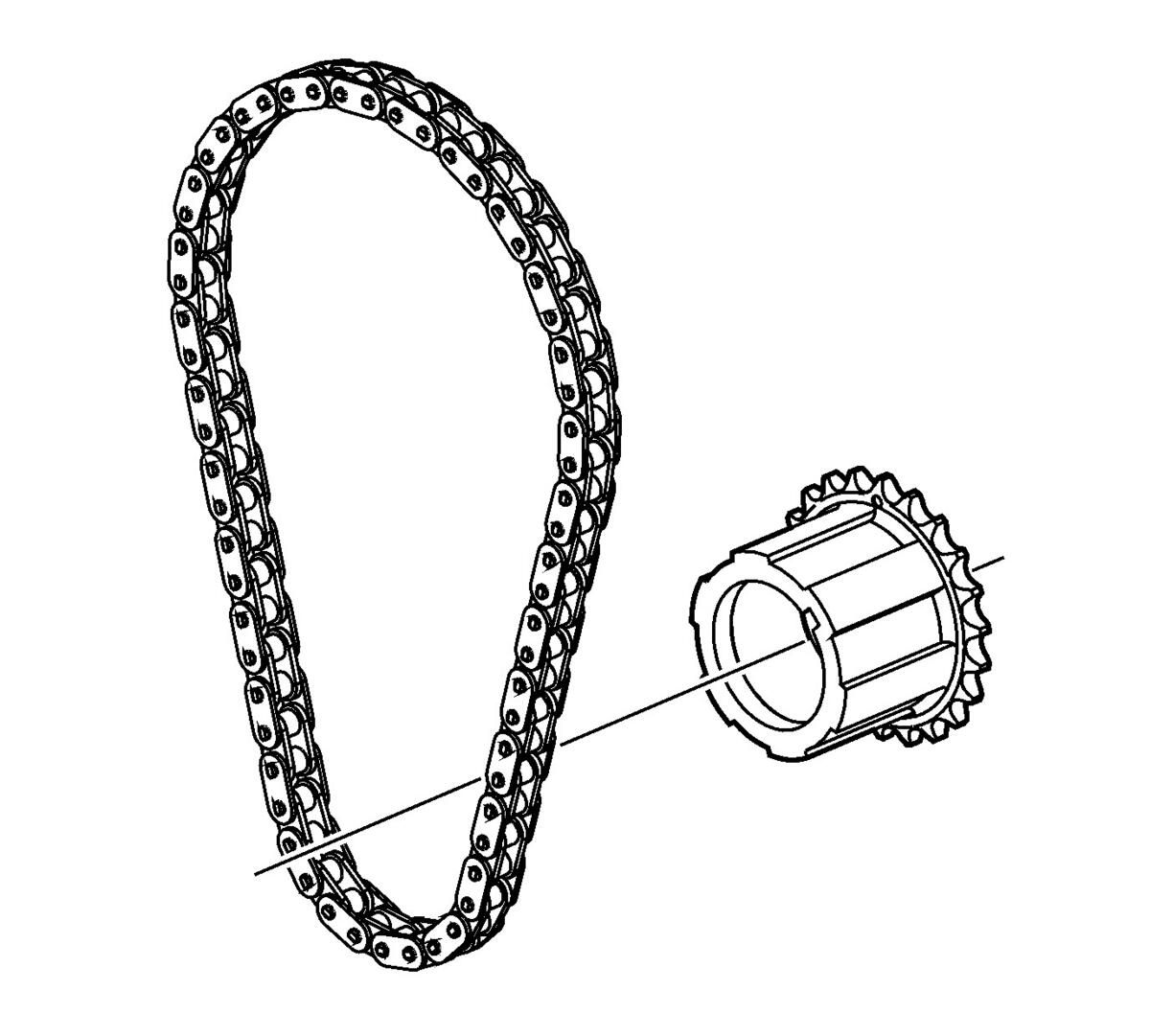

- Inspect the timing chain for binding or wear.
- Inspect the crankshaft sprocket for worn, damaged, or chipped teeth.
- Inspect for a damaged keyway.
- Inspect for worn oil pump drive splines.
- Inspect the timing chain tensioner for the following conditions:
- Damaged or broken tension spring (1)
- Excessive wear or scoring on the chain guide surfaces (2, 3)
WARNING:
Refer to Safety Glasses and Compressed Air Warning .
