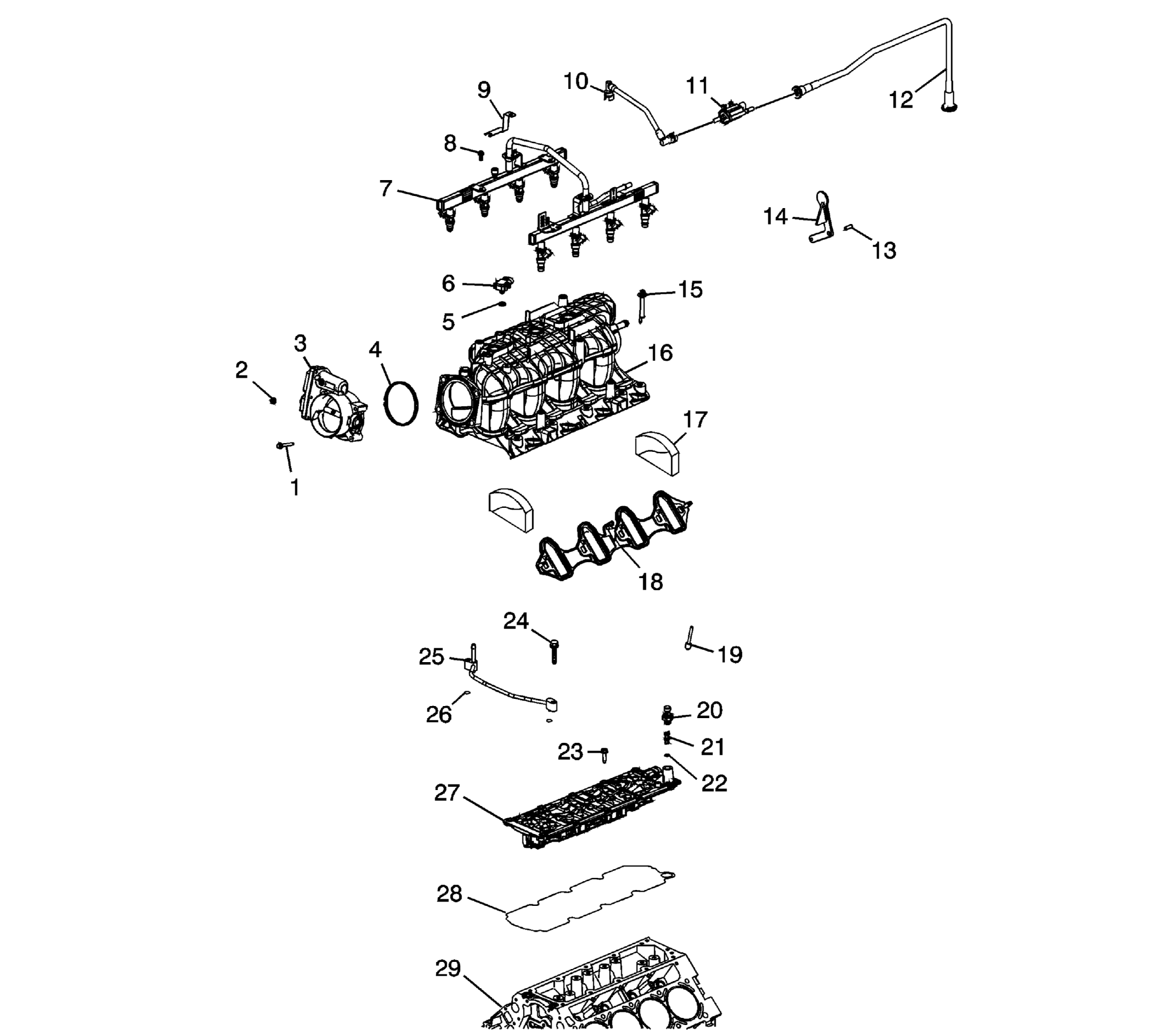

Intake Manifold/Upper Engine - With Active Fuel Management
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Bolt |
| 2 | Nut |
| 3 | Throttle Body |
| 4 | Throttle Body Seal |
| 5 | Manifold Absolute Pressure (MAP) Sensor O-ring Seal |
| 6 | MAP Sensor |
| 7 | Sequential Multi-Port Fuel Injector Assembly with Fuel Rail |
| 8 | Bolt |
| 9 | Fuel Injection Fuel Rail Bracket |
| 10 | Evaporative (EVAP) Emission Canister Purge Tube |
| 11 | EVAP Emission Canister Purge Solenoid Valve |
| 12 | EVAP Emission Canister Purge Tube |
| 13 | Bolt |
| 14 | Fuel Injection Fuel Rail Stop |
| 15 | Bolt |
| 16 | Intake Manifold |
| 17 | Intake Manifold Seal |
| 18 | Intake Manifold Gasket |
| 19 | Engine Coolant Air Bleed Plug |
| 20 | Engine Oil Pressure Sensor |
| 21 | Valve Lifter Oil Filter |
| 22 | Valve Lifter Oil Filter Seal |
| 23 | Bolt |
| 24 | Bolt |
| 25 | Engine Coolant Air Bleed Pipe |
| 26 | Engine Coolant Air Bleed Pipe O-ring Seal |
| 27 | Engine Valley Cover |
| 28 | Gasket |
| 29 | Engine Block |
