Engine Block Plugs/Sensors
WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

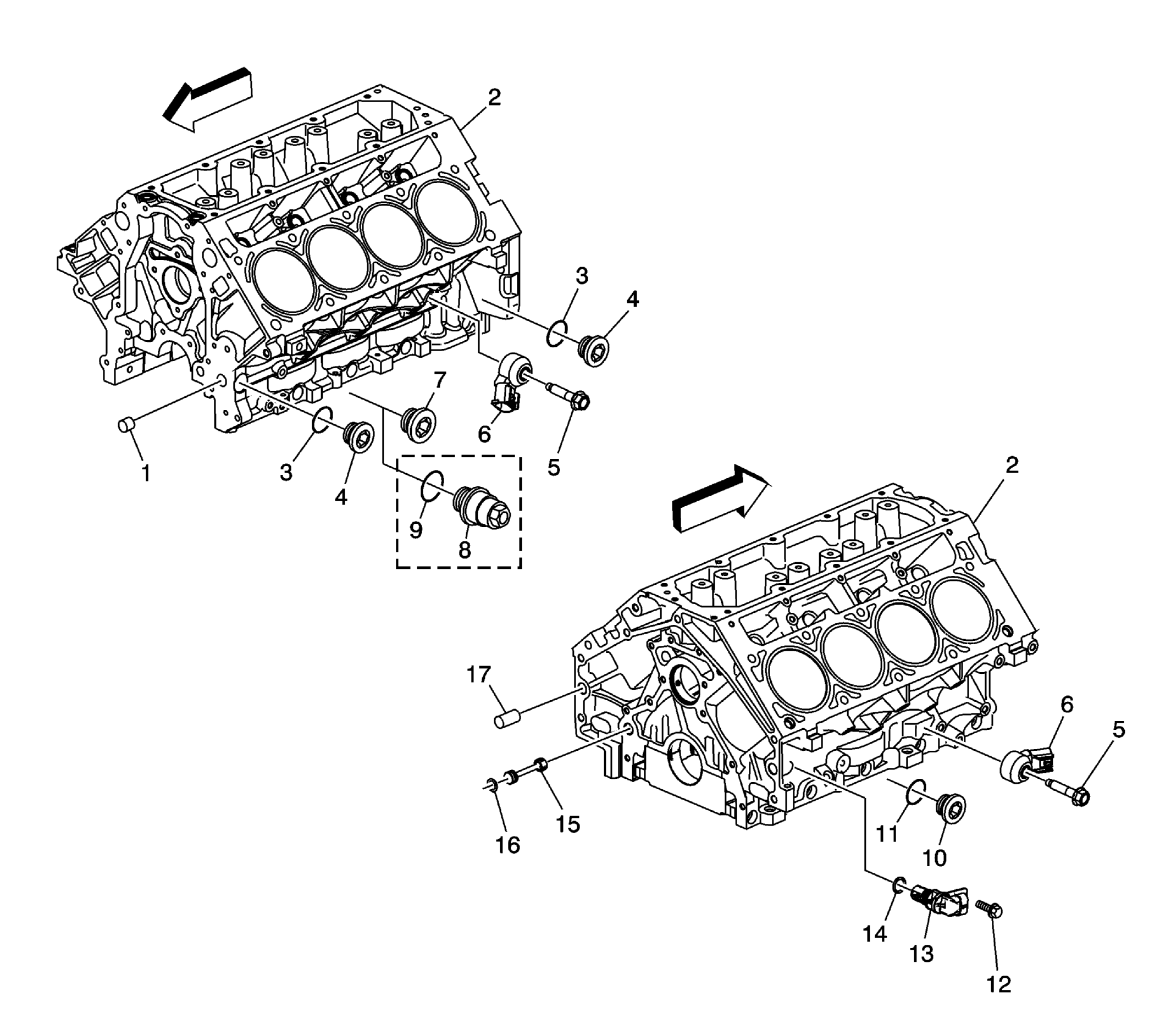

| Callout | Component Name |
|---|---|
| 1 | Engine Block Oil Gallery Plug - Front |
| 2 | Engine Block |
| 3 | Engine Block Oil Gallery Plug Seal |
| 4 | Engine Block Oil Gallery Plug- Side - M16 |
| 5 | Knock Sensor Bolt |
| 6 | Knock Sensor |
| 7 | Engine Block Coolant Drain Hole Plug - M28 |
| 8 | Engine Coolant Heater |
| 9 | Engine Coolant Heater Washer |
| 10 | Engine Block Coolant Drain Hole Plug - M16 |
| 11 | Engine Block Coolant Drain Hole Plug Gasket |
| 12 | Crankshaft Position Sensor Bolt |
| 13 | Crankshaft Position Sensor |
| 14 | Crankshaft Position Sensor Seal |
| 15 | Engine Block Oil Gallery Plug - Rear |
| 16 | Engine Block Oil Gallery Plug Seal |
| 17 | Transmission Locating Pin |
