Power, Ground, Serial Data, MIL and Fluid Temperature

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

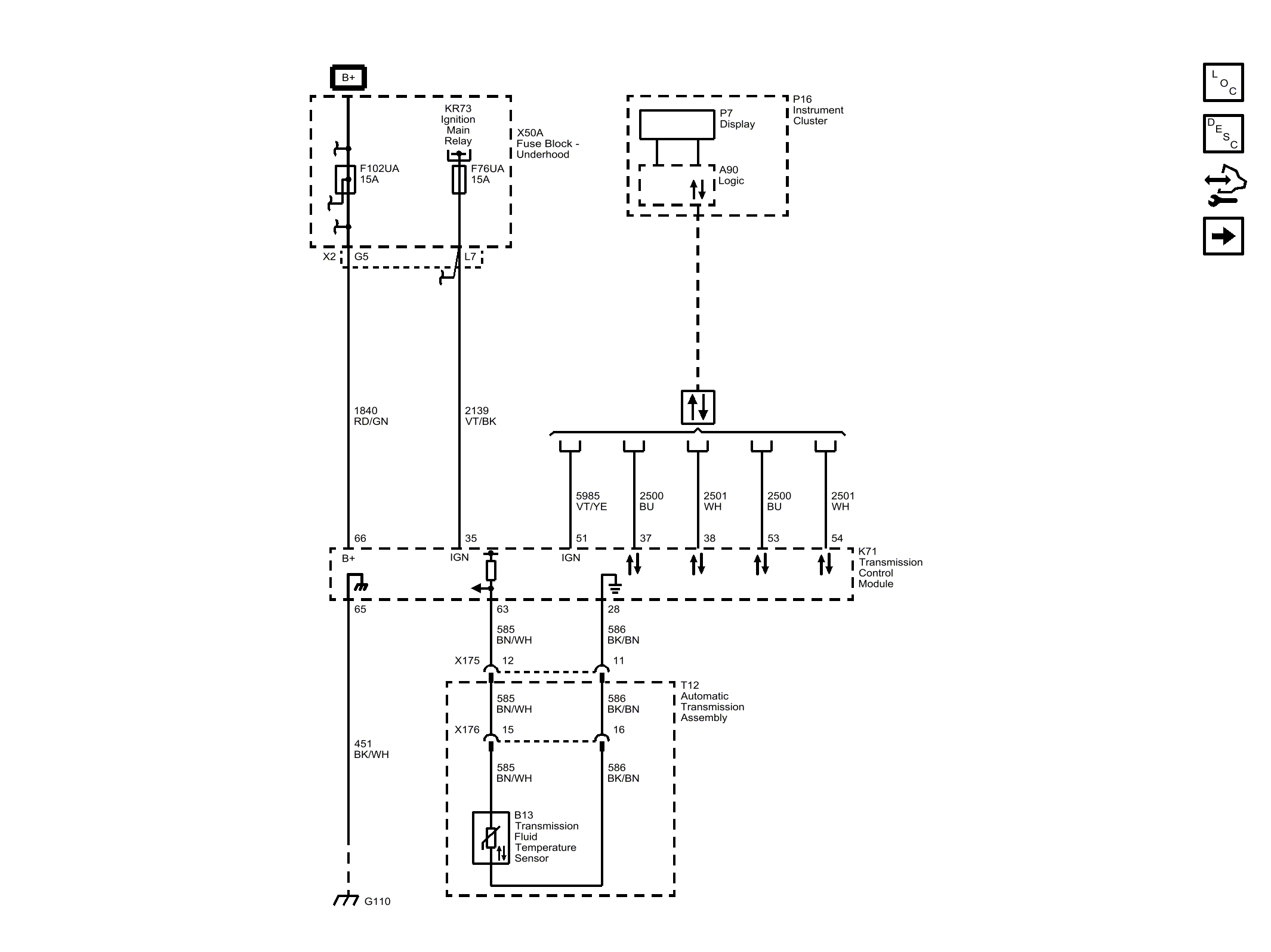

Fig 1: Power, Ground, Serial Data, MIL and Fluid Temperature
GM4690840Courtesy of GENERAL MOTORS COMPANY
