Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

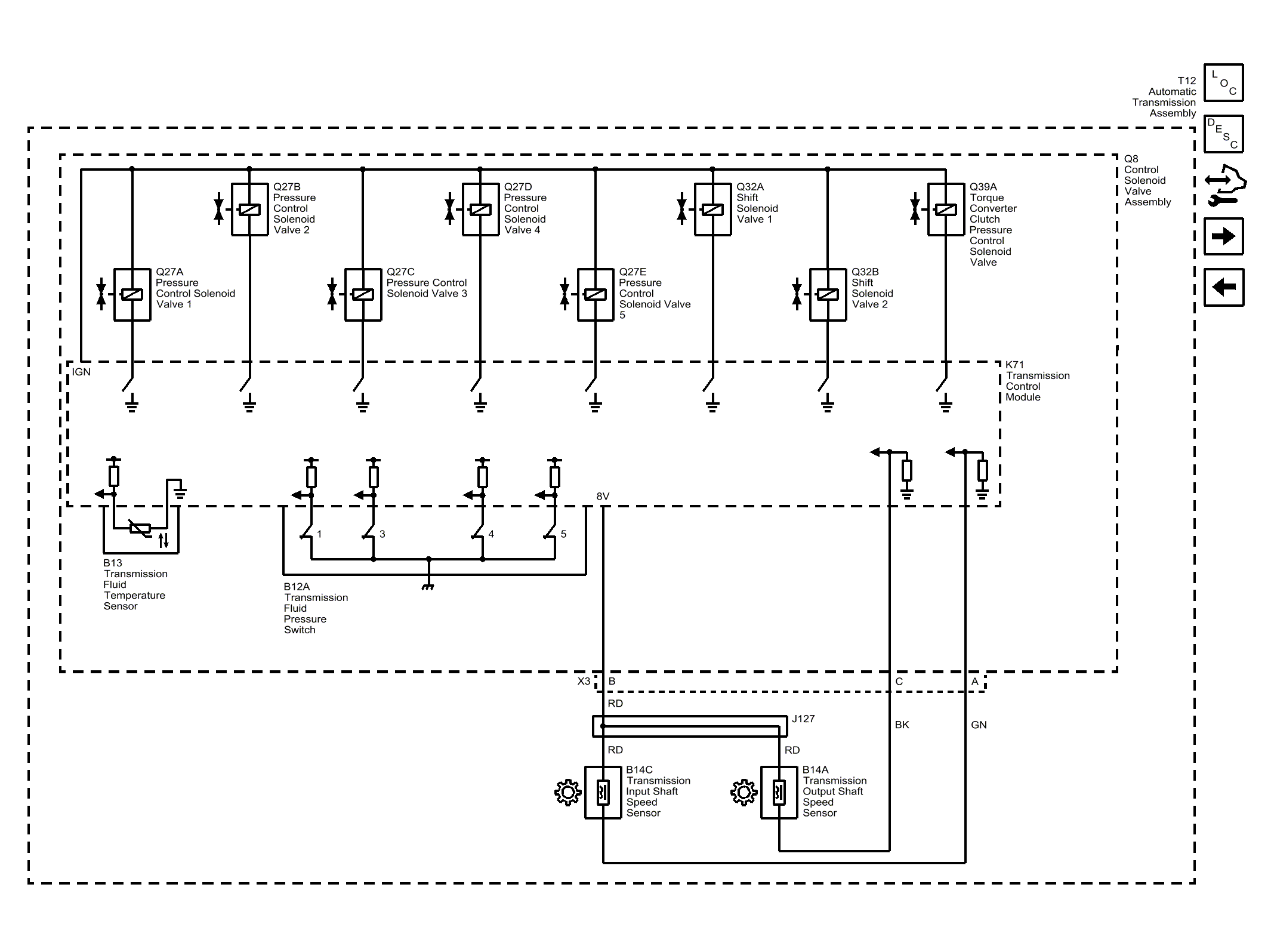

Fig 1: Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls
GM4690838Courtesy of GENERAL MOTORS COMPANY
