Power, Ground and Shift Controls

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

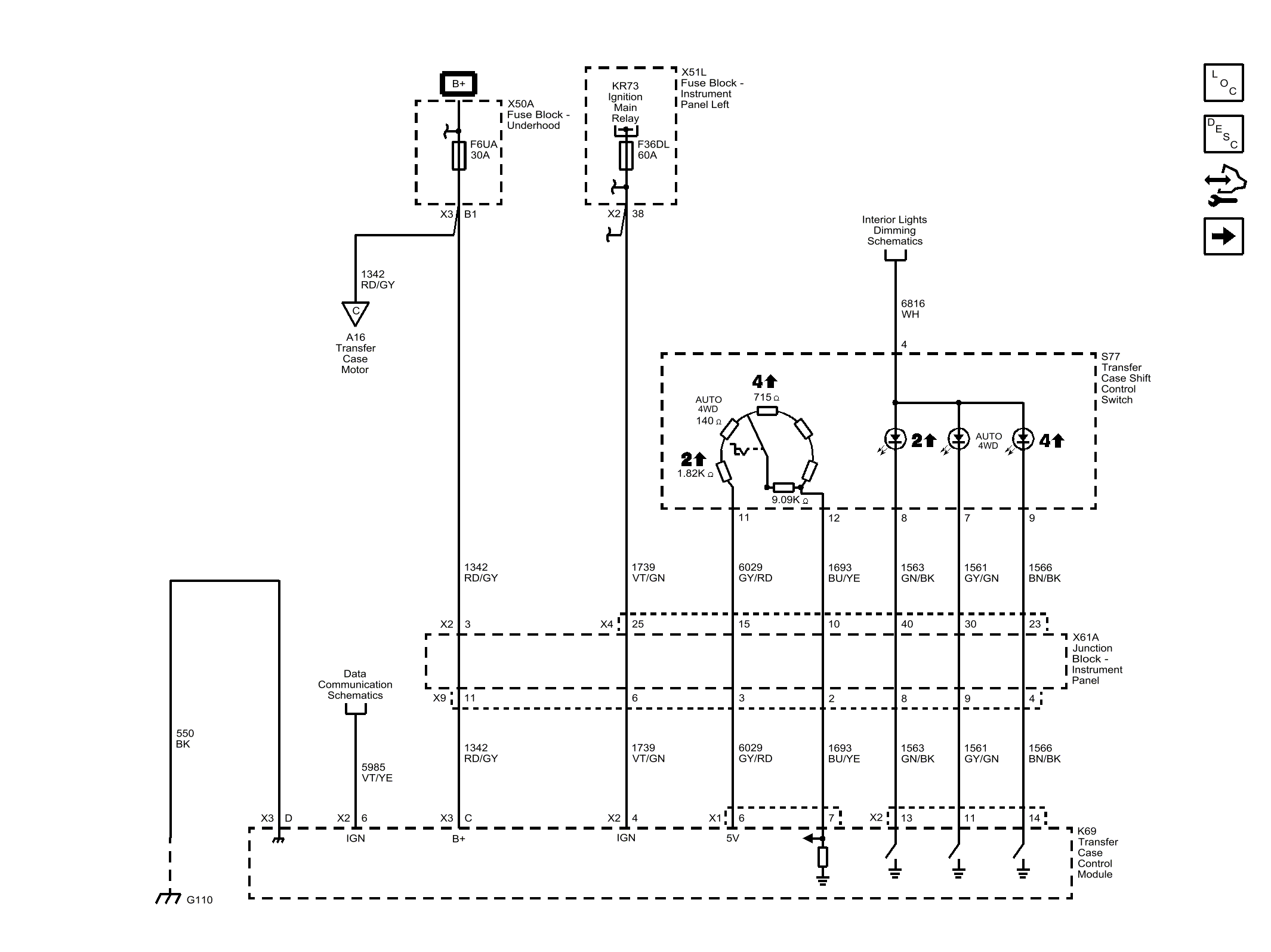

Fig 1: Power, Ground and Shift Controls
GM4690850Courtesy of GENERAL MOTORS COMPANY
