Transfer Case Two/Four Wheel Drive Actuator Position Sensor Replacement
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

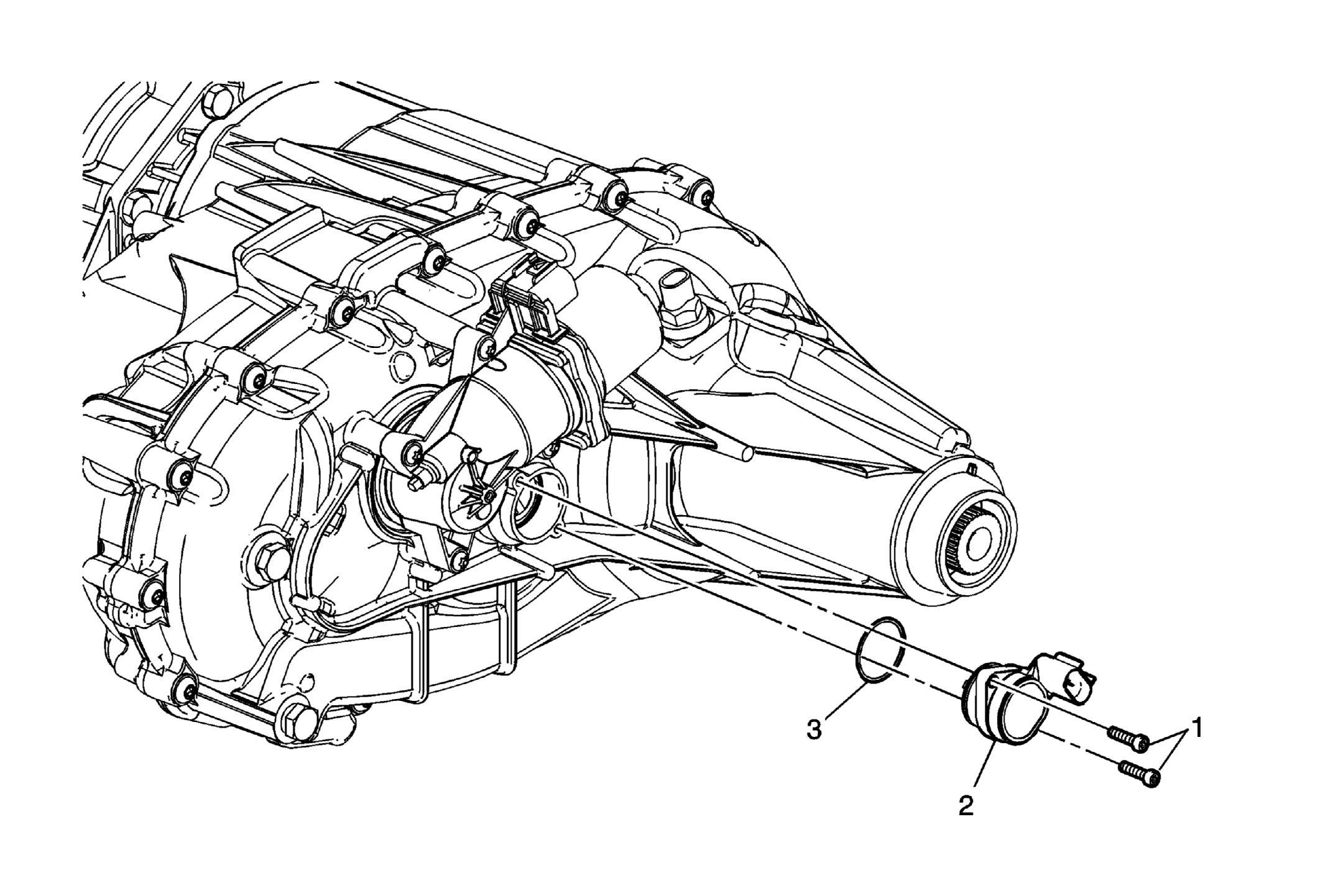

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Two/Four Wheel Drive Actuator Position Sensor Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 2 | Two/Four Wheel Drive Actuator Position Sensor Procedure Disconnect the electrical connector. |
| 3 | Two/Four Wheel Drive Actuator Position Sensor O-Ring Seal Procedure Lightly lubricate the O-ring with clean. Refer to Adhesives, Fluids, Lubricants and Sealers . |
