Transfer Case Shield Replacement
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

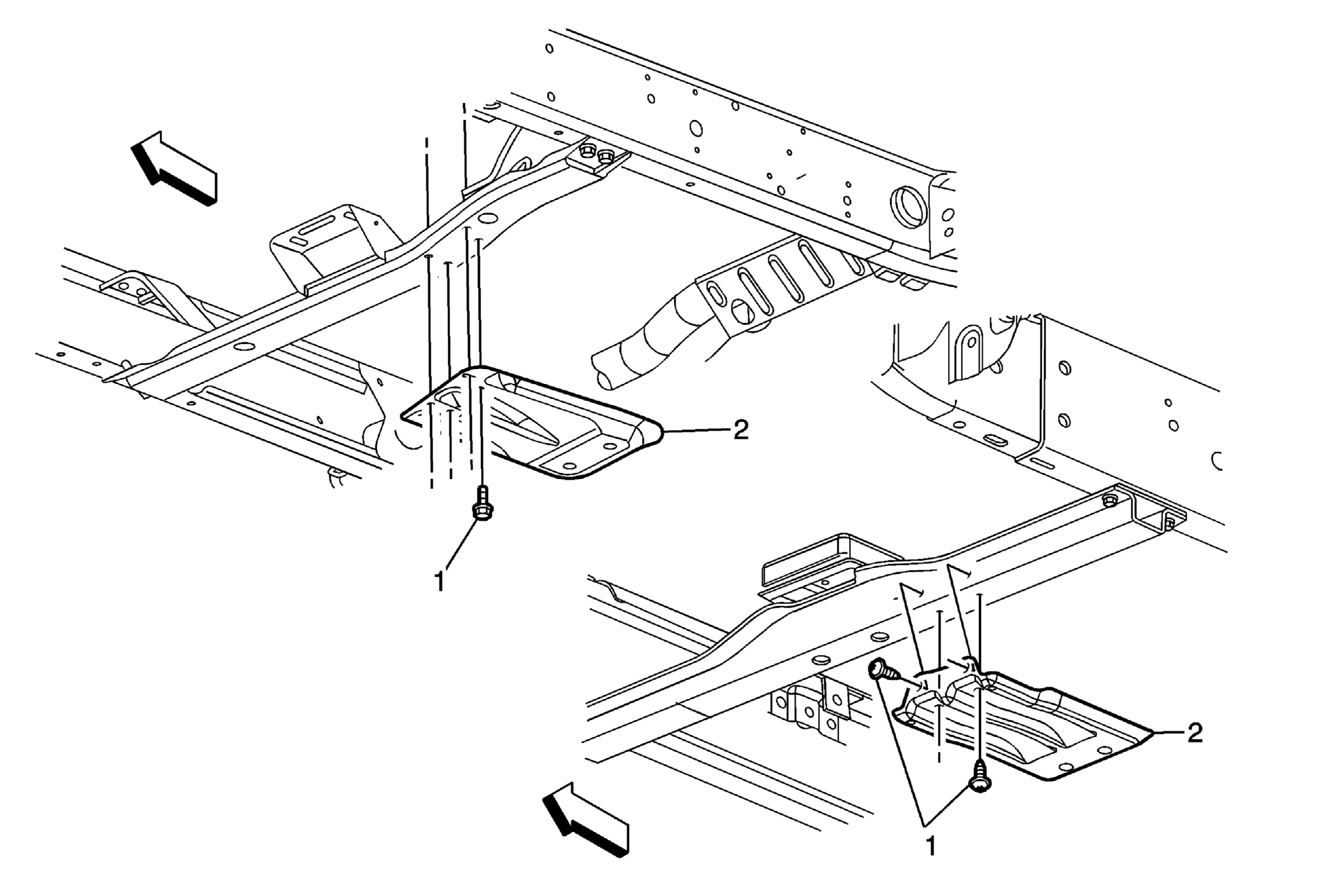

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Transfer Case Shield Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 20 N.m (15 lb ft) |
| 2 | Transfer Case Shield |
