Transfer Case Selector Switch Replacement (Cadillac)
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement (Cadillac) . |
|

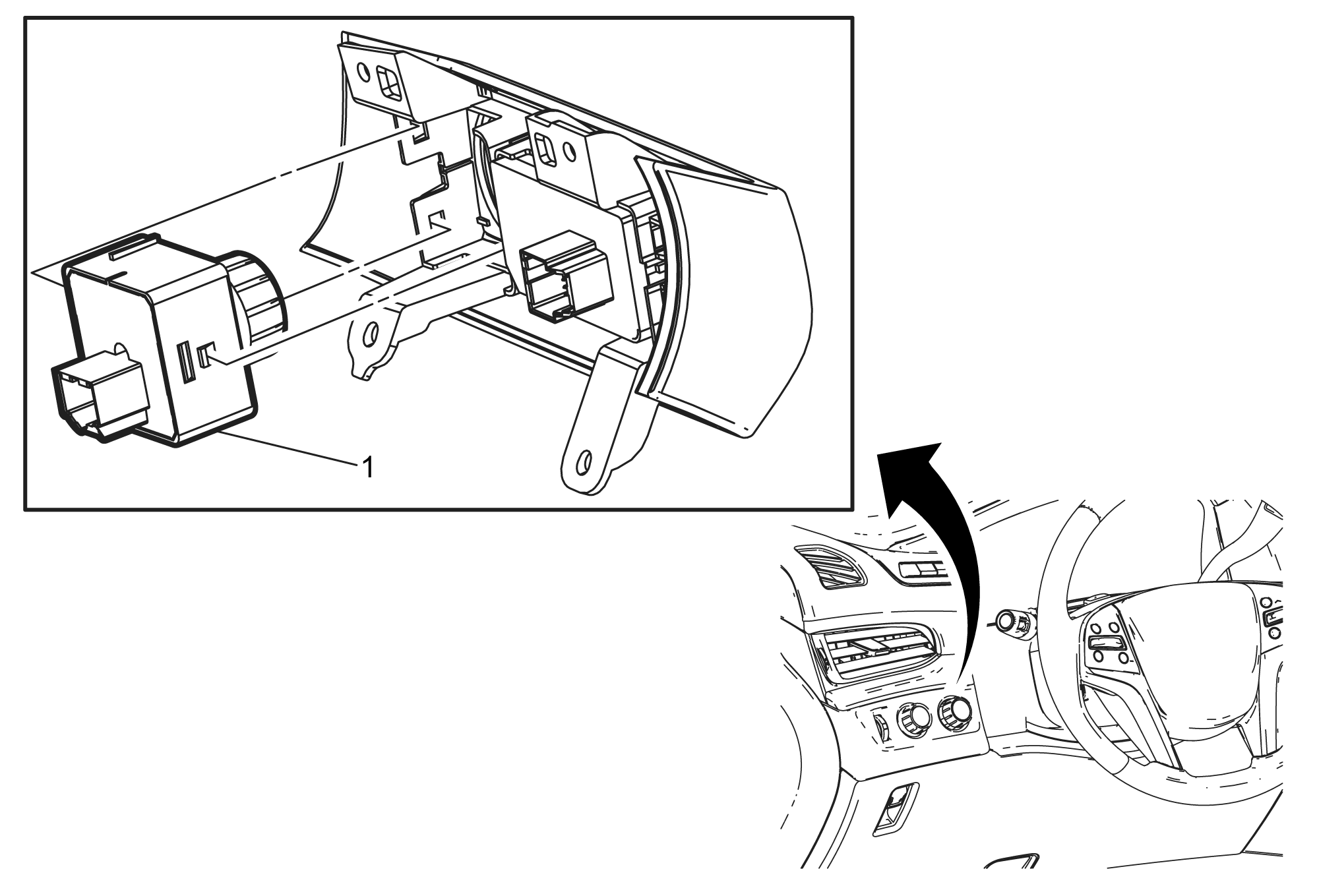

| 1 | Transfer Case Selector Switch Procedure Using the appropriate tool gently depress tabs to remove the switch from the bezel. |
