Transfer Case Fluid Replacement

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

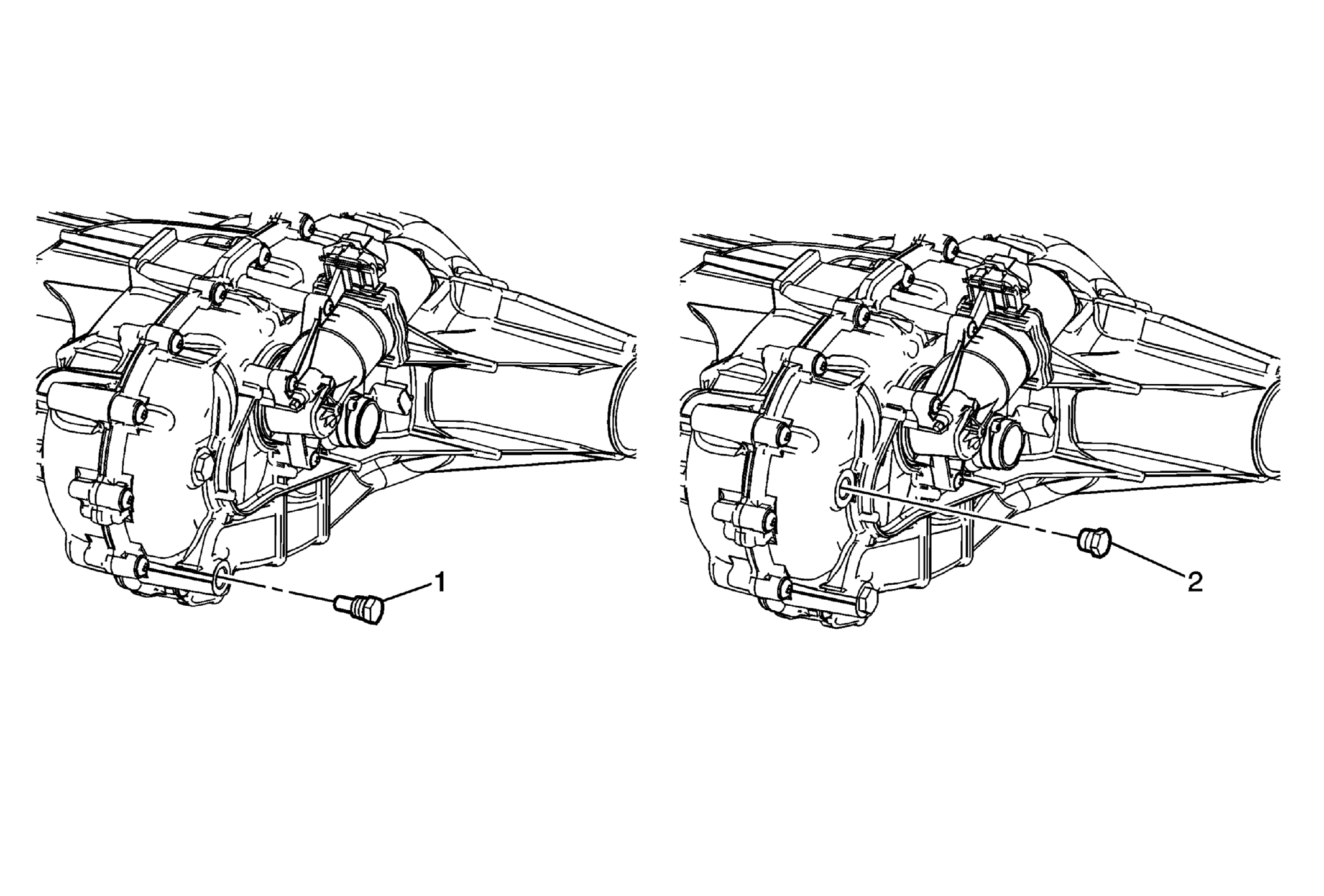

Fig 1: View Of Transfer Case Drain Plug & Fill Plug
GM1836287Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .
1 Transfer Case Drain Plug
CAUTION: Refer to Component Fastener Tightening Caution .

Procedure

  1. Allow the transfer case to drain completely.
  2. Apply sealant to the plug threads. Refer to Adhesives, Fluids, Lubricants, and Sealers .
NOTE: Use only hand tools to remove and install the drain plug.

Tighten
20 N.m (15 lb ft)
2 Transfer Case Fill Plug

Procedure

  1. Fill the transfer case to the bottom of the fill plug hole with transfer case fluid. Refer to Adhesives, Fluids, Lubricants and Sealers .
  2. Apply sealant to the plug threads. Refer to Adhesives, Fluids, Lubricants and Sealers .
NOTE: Use only hand tools to remove and install the fill plug.

Tighten
18 N.m (13 lb ft)
