Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fill plug (1) and tighten to 20 N.m (15 lb ft).

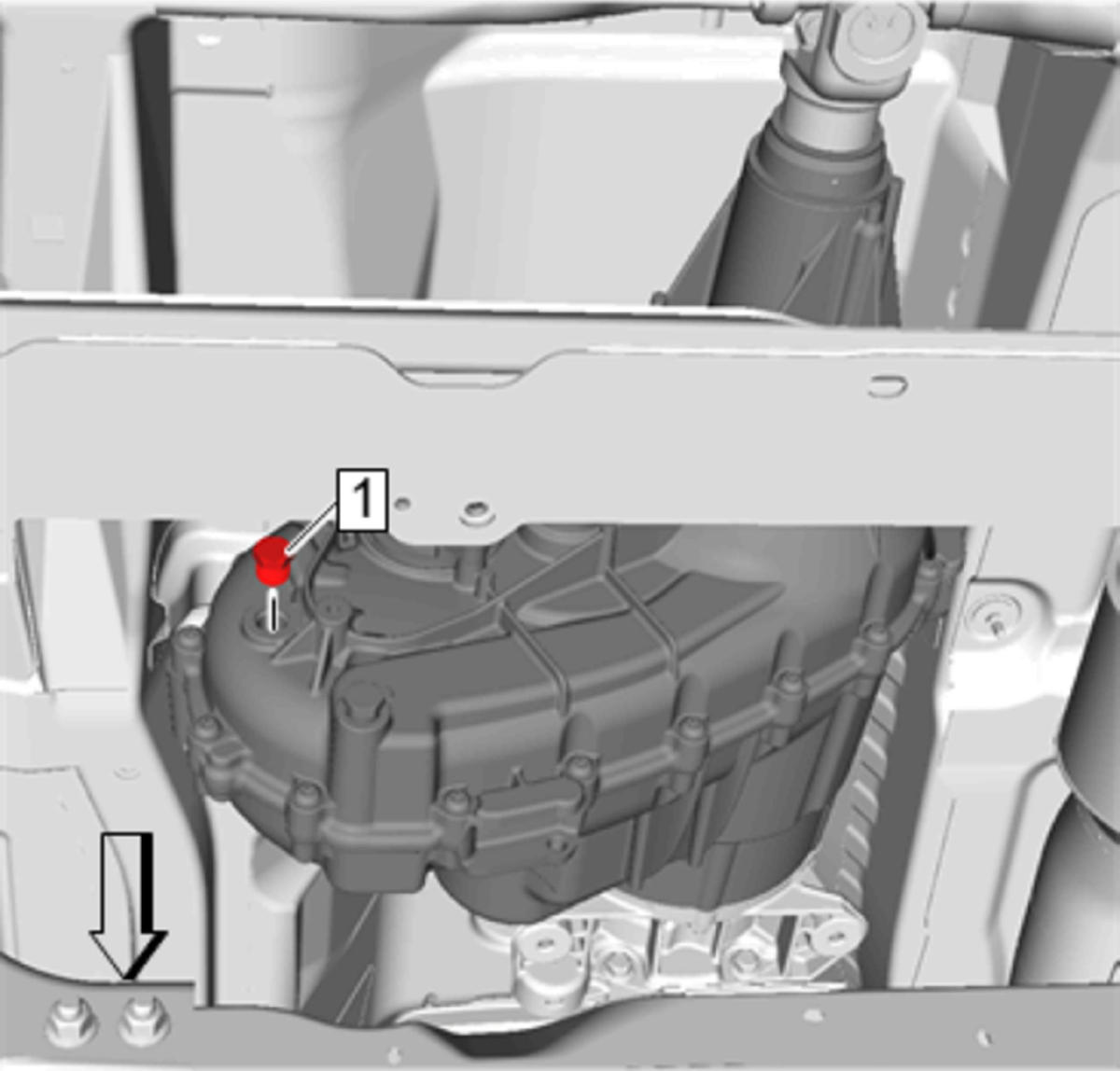

    Fig 1: Transfer Case Fill Plug
    GM4570710Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Component Fastener Tightening Caution .
  2. Lower the vehicle.
