Transfer Case Rear Case Half Removal

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

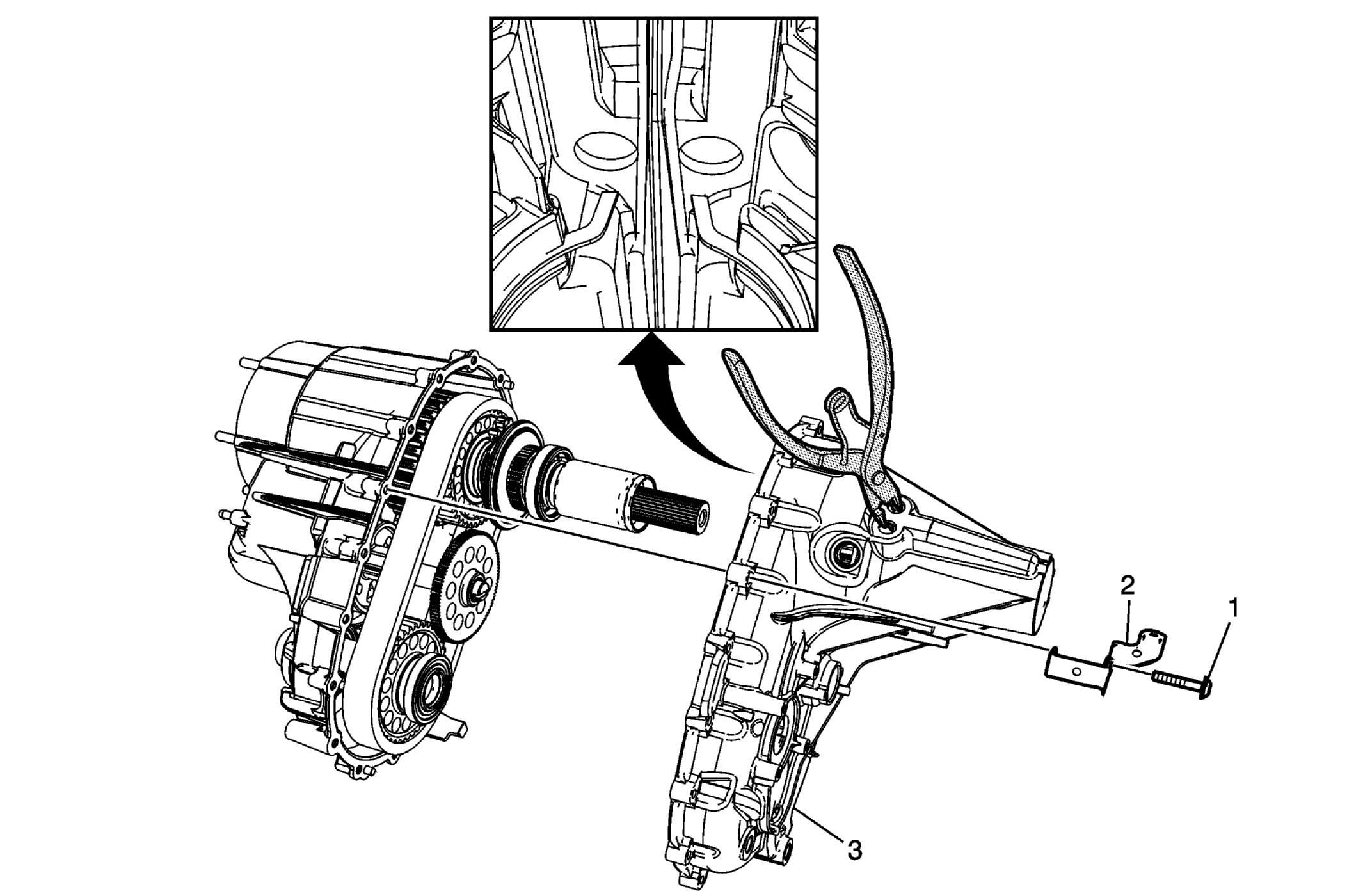

Fig 1: Transfer Case Rear Case Half

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transfer Case Bolts (Qty: 17)
2	Transfer Case Bracket
3	Transfer Case Rear Case Half CAUTION: Refer to Machined Surface Damage Caution . NOTE: Use opposing pry bars at casting bosses to spread the case. Use snap ring pliers to release the transfer case rear output shaft outer retaining ring from the transfer case rear output shaft rear bearing assembly.
