Input Shaft Assembly Removal
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

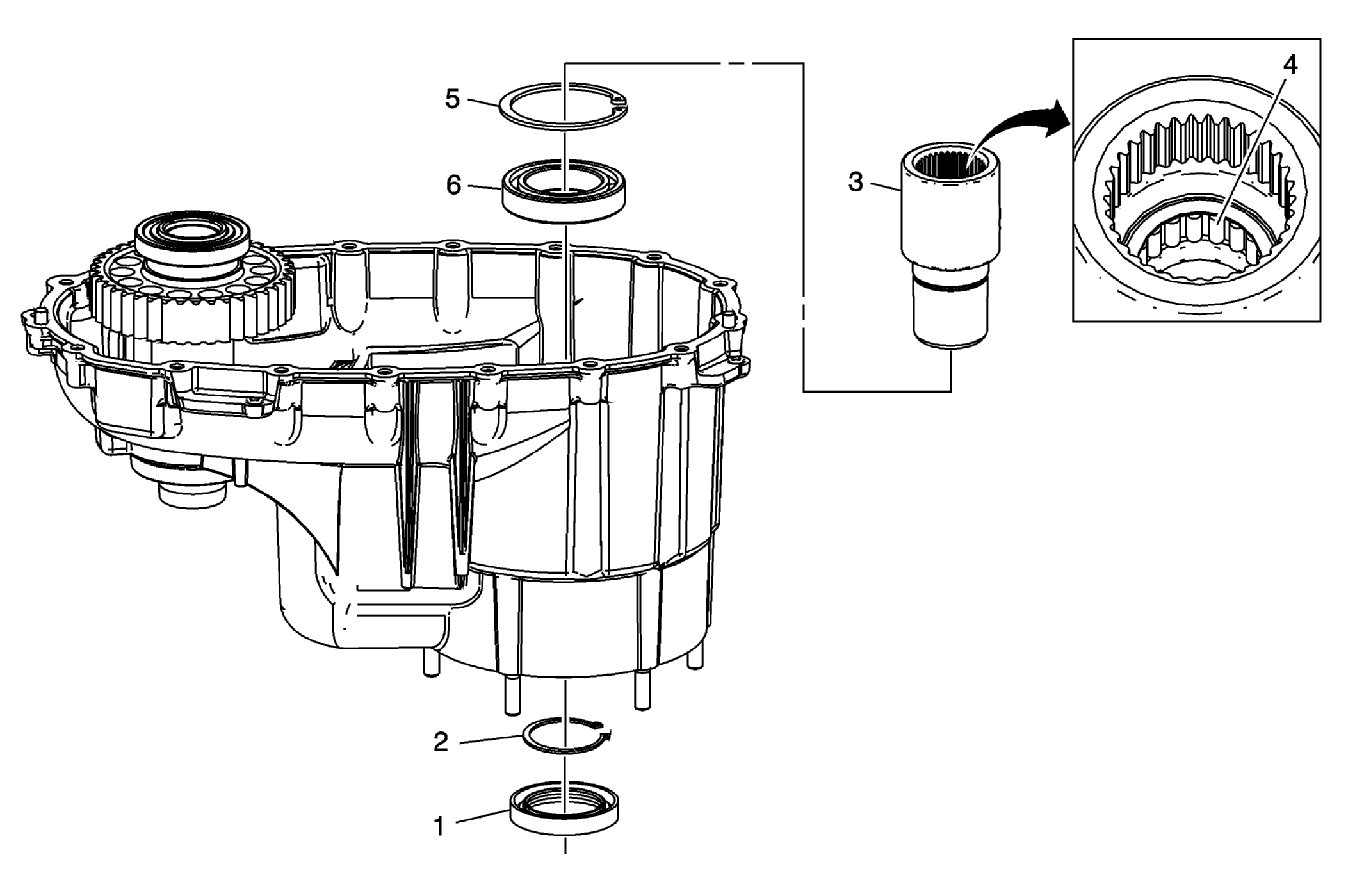

Input Shaft Assembly Removal
| Callout | Component Name |
|---|---|
| 1 | Transfer Case Input Shaft Seal |
| 2 | Transfer Case Input Shaft Bearing Outer Retaining Ring |
| 3 | Transfer Case Input Shaft |
| 4 | Transfer Case Input Shaft Pilot Bearing Assembly Procedure Only remove the bearing if faulty. Refer to Front Output Shaft and Input Shaft Cleaning and Inspection . |
| 5 | Transfer Case Input Shaft Inner Retaining Ring |
| 6 | Transfer Case Input Shaft Bearing Assembly |
