Front Output Shaft Assembly Removal

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

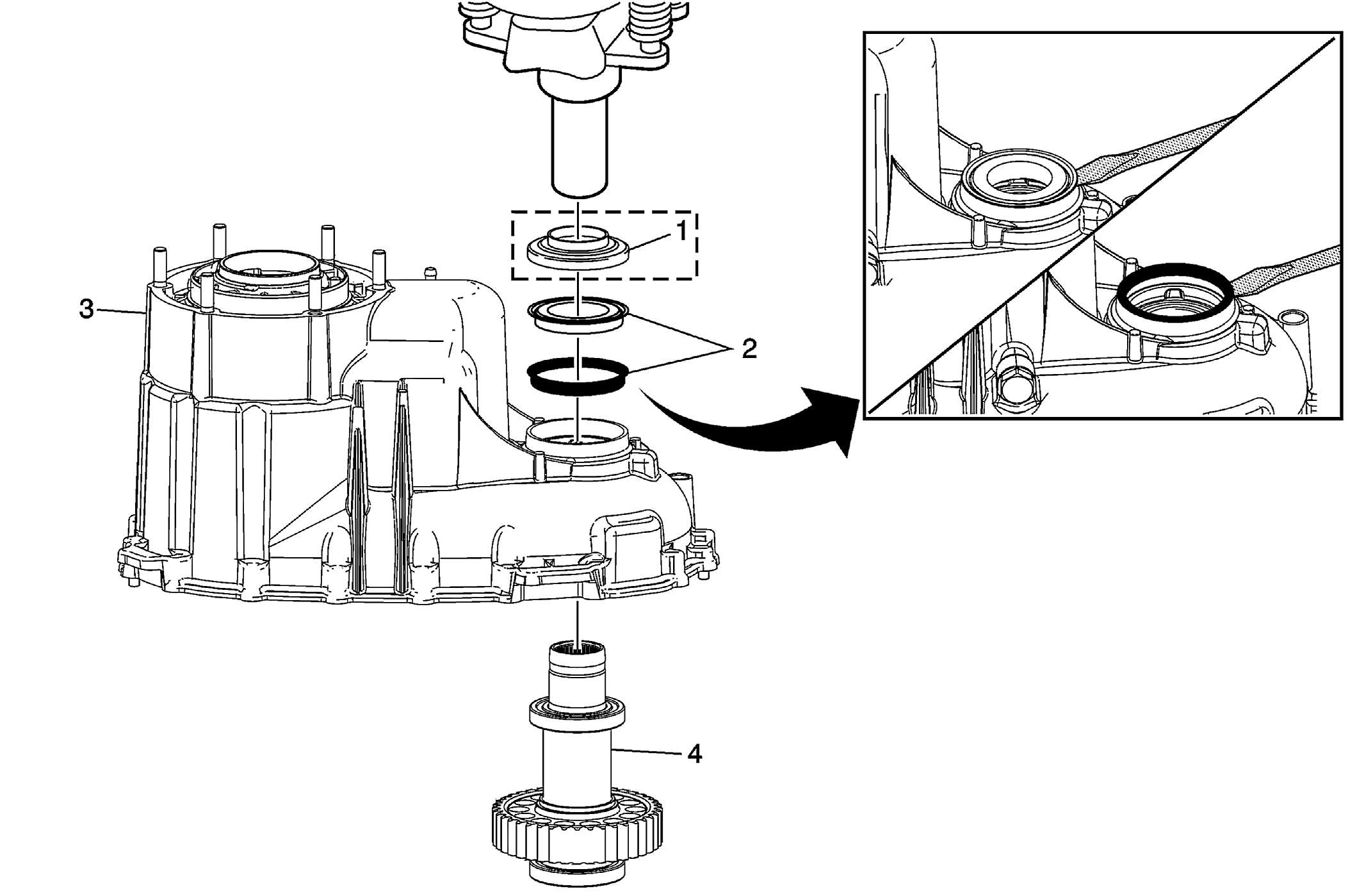

Fig 1: View Of Transfer Case Front Half, Output Shaft Assembly & Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transfer Case Front Output Shaft Oil Slinger - Model Dependent NOTE: Refer to Interim Model Year Design Change - NQF/NQG/NQH/NPO Front Output Shaft, Deflector, Seal in the New Product Information .
2	Transfer Case Front Output Shaft Seal Procedure Remove the front output shaft seal in two pieces using the following procedure. Insert a screwdriver between the metal inner and metal outer portions of the seal. Pry upward in multiple locations working the metal inner portion of the seal off the shaft until removed. Once the inner metal portion is removed, insert a screwdriver between the outer diameter metal flange of the seal and the housing. Drive the screwdriver inward in multiple locations, the outer portion of the seal will be distorted and can easily be removed from the housing.
3	Transfer Case Front Case Half NOTE: Place the front case half on an arbor press.
4	Transfer Case Front Output Shaft Assembly NOTE: Press the front output shaft assembly from the front case half using an arbor press or soft-face hammer.
